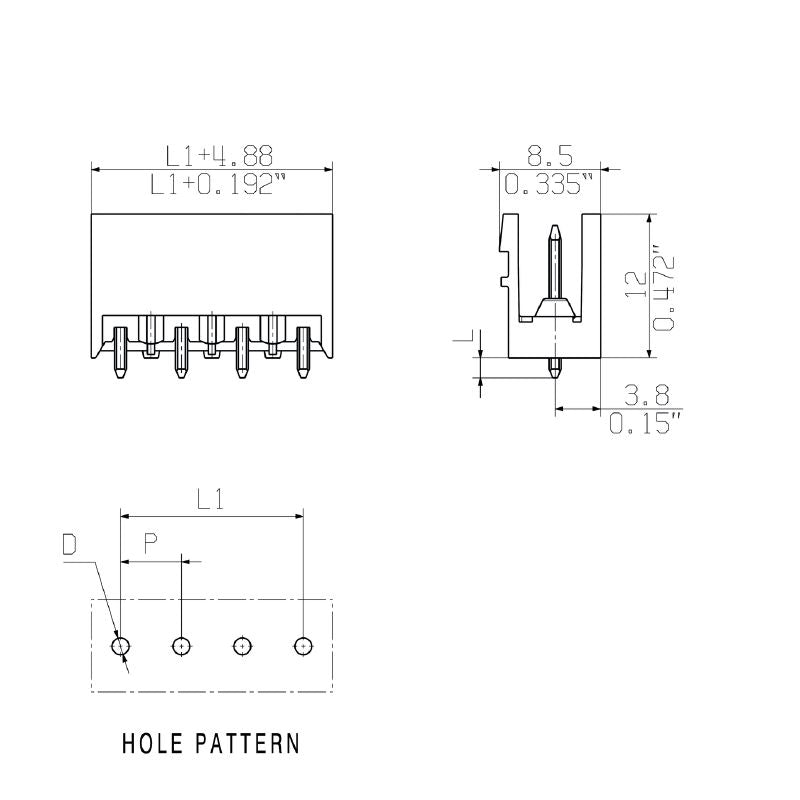

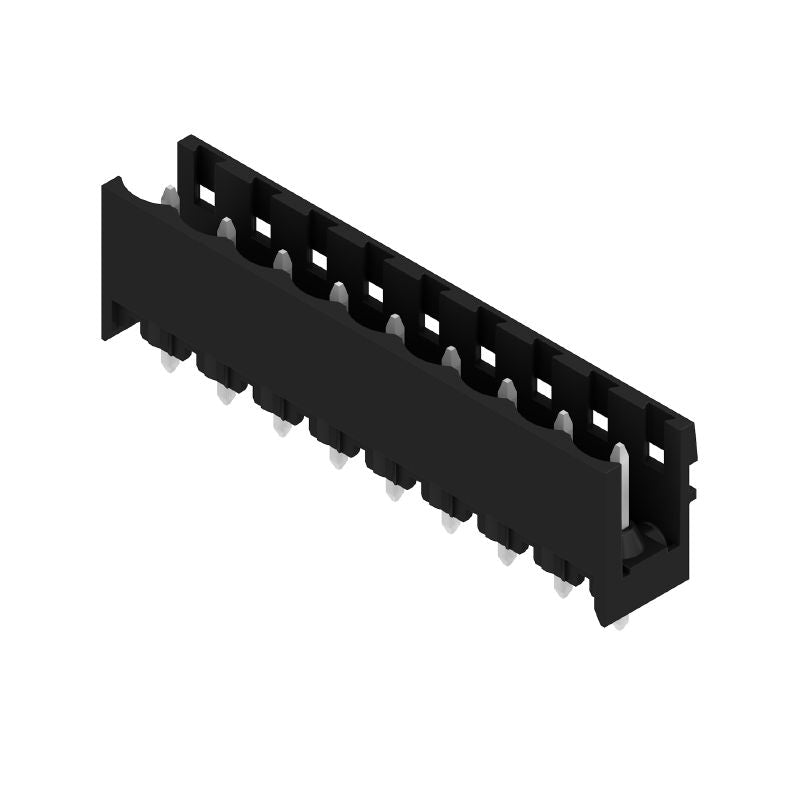

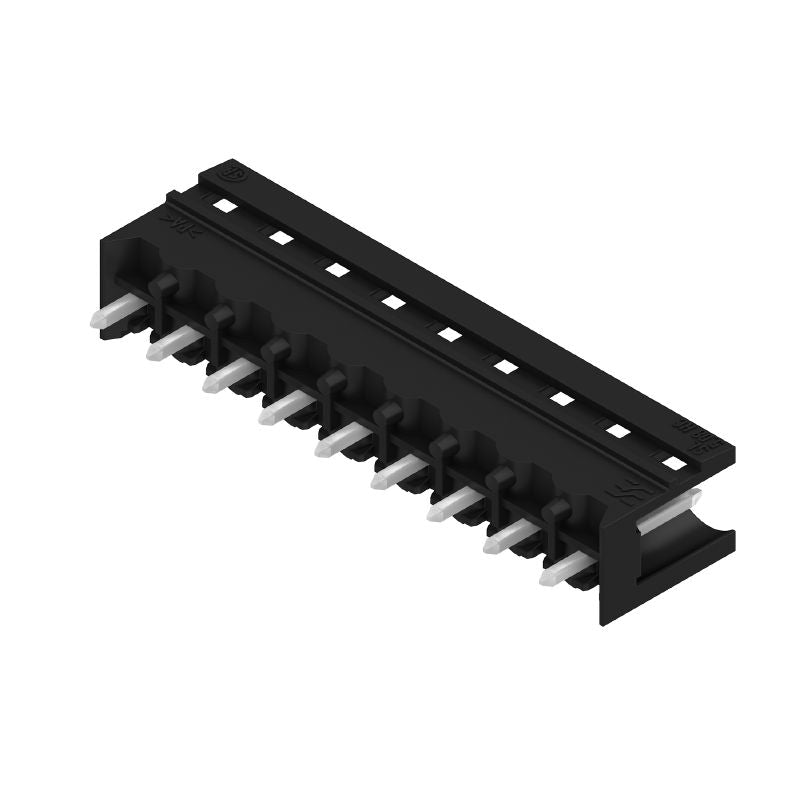

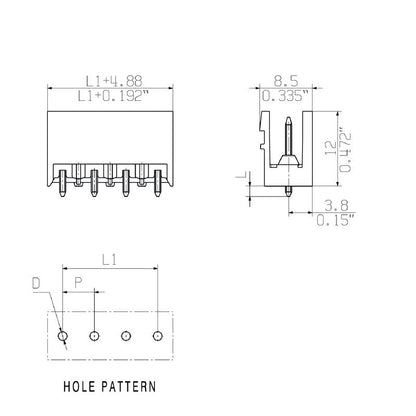

1148270000 - 5.08mm 9-Pole PCB Connector, Tinned Solder Pins, Boxed (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this 9-pole male header PCB plug-in connector, designed for seamless integration with open sides and through-hole solder connections With a 508 mm pitch and poles arranged at a 180° angle, this connector features tinned solder pins that measure 32 mm in length Each unit is carefully packaged in a secure box, ensuring safe delivery This connector is compliant with safety standards, boasting both RoHS and UL certifications for reliable use in various applications.

Features and Benefits:

•IEC rating of 400 V / 24 A.

•UL rating of 300 V / 18.5 A.

•Compliant with RoHS standards without exemptions.

•Finger-safe unplugged and back-of-hand-safe plugged protection.

•Can be coded for specific configurations.

•Rated for 25 plugging cycles.

Specifications:
