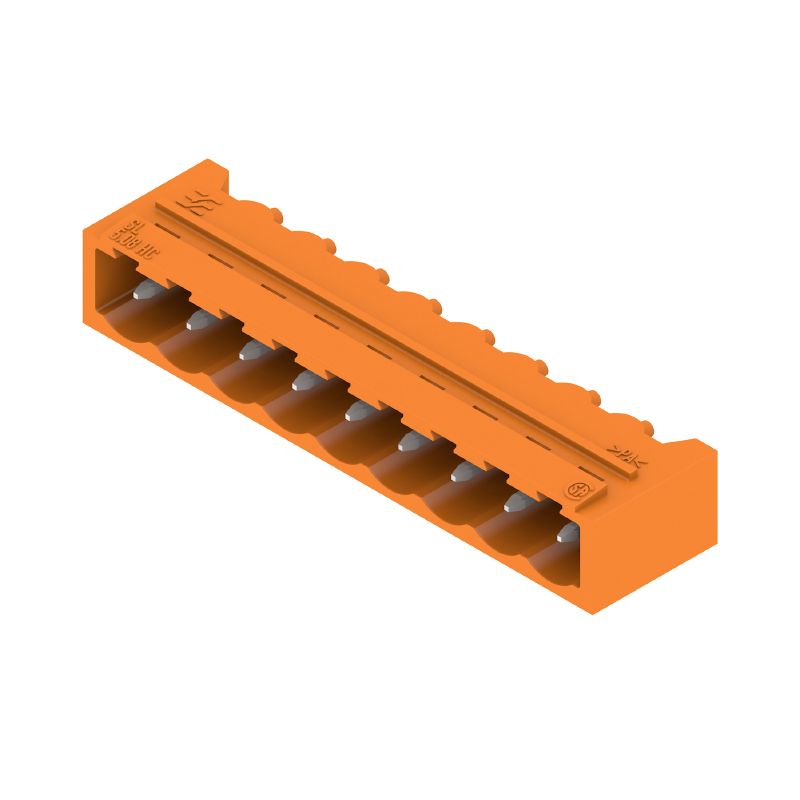

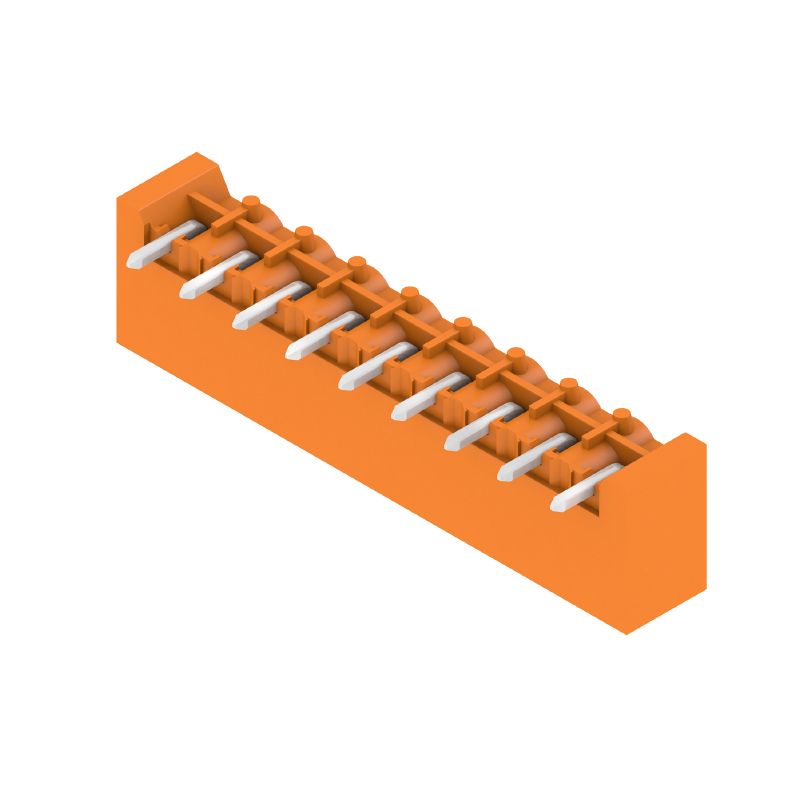

1147490000 - 5.08mm 9-Pole PCB Plug Connector with 90° Elbow (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SL 508HC/09/90G 32SN OR BX male header PCB plug-in connector, specifically engineered for THT solder connections This connector boasts a 508 mm pitch and features 9 poles along with a 90° angled elbow for efficient installation The solder pins measure 32 mm in length and come with a tinned finish for reliable conductivity Packaged in an eye-catching orange box, this connector is rated for an IEC maximum of 400 V and 24 A, with a UL rating of 300 V and 18.

5 A, ensuring robust performance in various applications.

Features and Benefits:

•Touch-safe protection according to DIN VDE 57 106.

•Can be coded.

•Designed for board connection.

•Single row with 9 poles.

•Solder pin length tolerance of +0.1/-0.3 mm.

•Operating temperature range from -50°C to +100°C.

•Storage temperature range from -40°C to +70°C.

Specifications:
