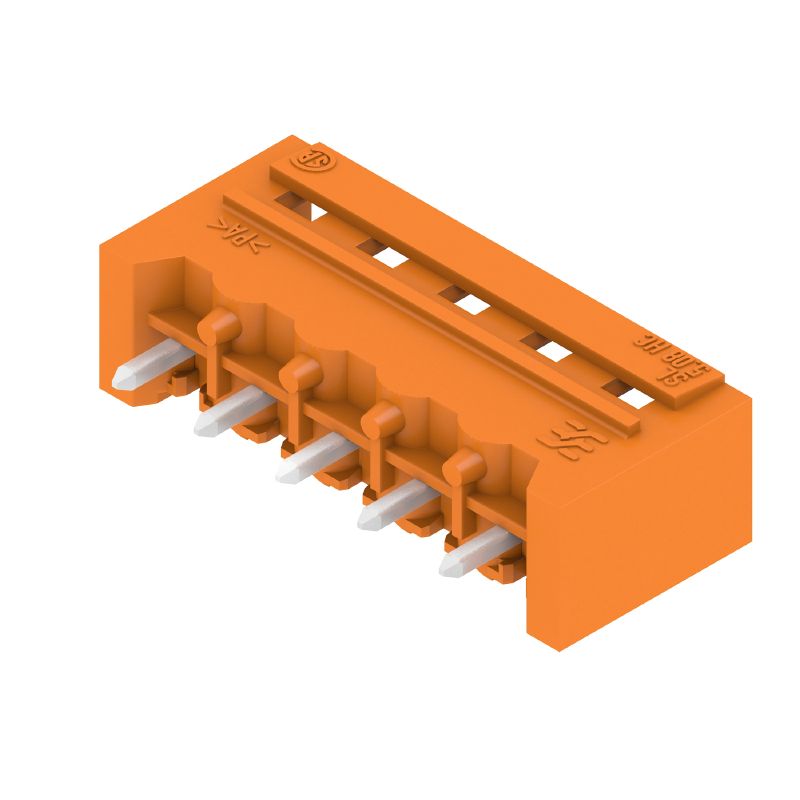

1146800000 - 5-Pole PCB Connector, 5.08mm Pitch, 180° Elbow, 24A (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable PCB plug-in connector featuring a male header with a closed side and THR solder connection, set at a 508 mm pitch This component includes 5 poles and is designed with a 180° outgoing elbow for enhanced connectivity The solder pins measure 32 mm in length and have a tinned surface for solid adhesion Each unit comes neatly packed in a box and meets various international compliance standards, including RoHS.

Capable of handling an operational voltage of up to 400 V and a current rating of 24 A, this connector is engineered for efficient performance in your projects.

Features and Benefits:

•RoHS compliant.

•Finger-safe when unplugged and back-of-hand-safe when plugged.

•Can be coded for orientation.

•Low volume resistance of ≤5 mΩ.

•Meets touch-safety specifications according to DIN standards.

•Designed with a maximum plugging force of 10 N.

•Suitable for board connections and various electronic applications..

Specifications:
