1115680000 - 5.08mm Pitch Black PCB Plug-In Connector with 2 Poles (Pack of 250)

SKU: SKU: 1115680000 Download PDF

Select a Variant:

1115680000 - 5.08mm Pitch Black PCB Plug-In Connector with 2 Poles (Pack of 250)

SET THE QTY:

Now $272.58 Web pricing policy

~~BEFORE $0.00~~ Now $272.58 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

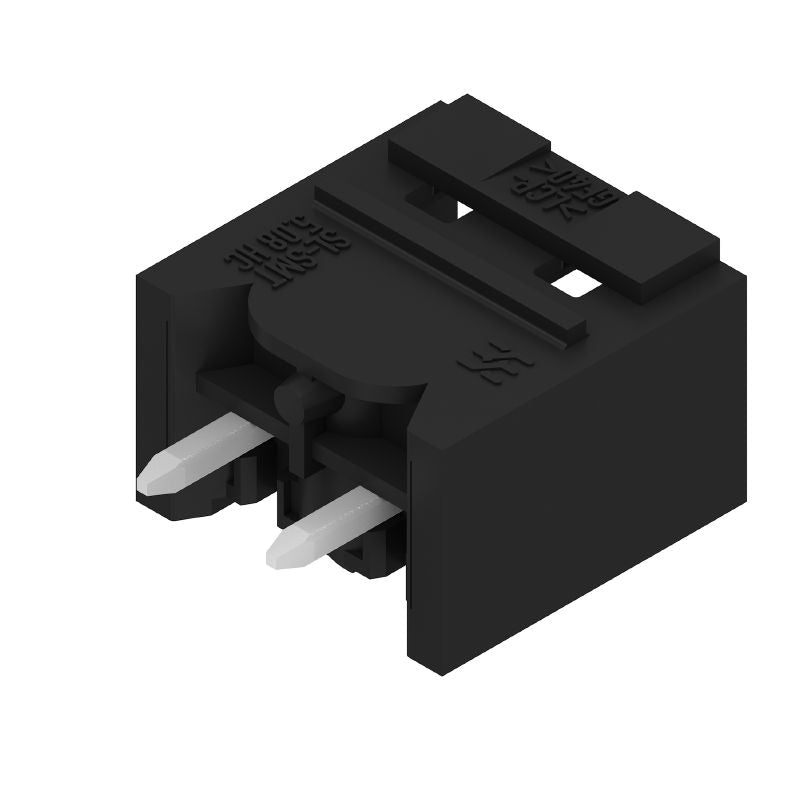

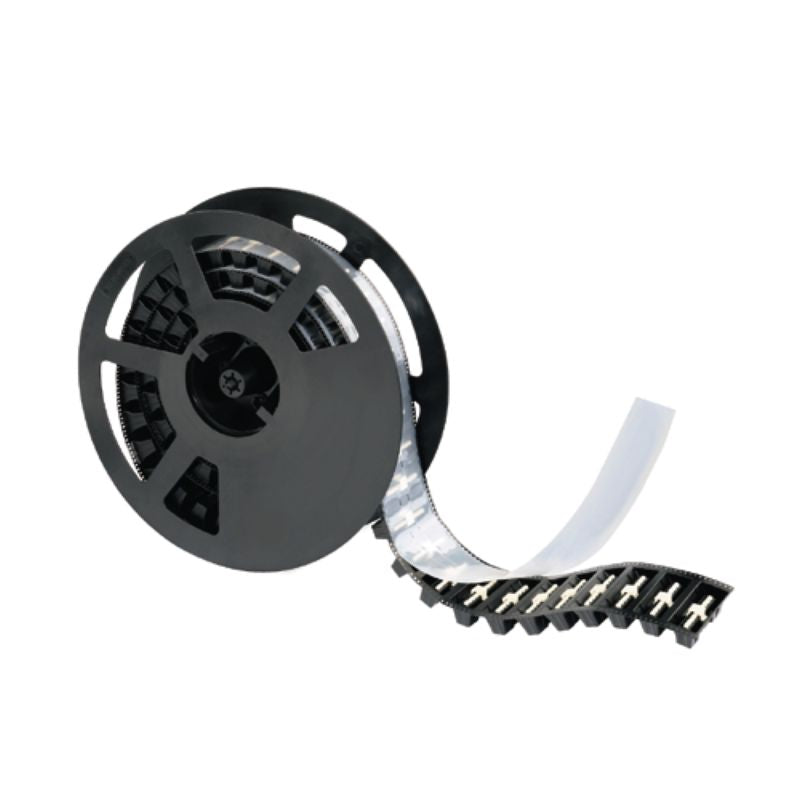

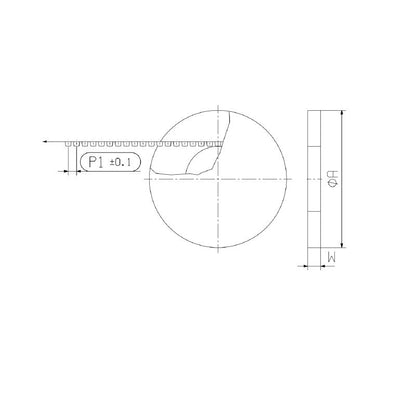

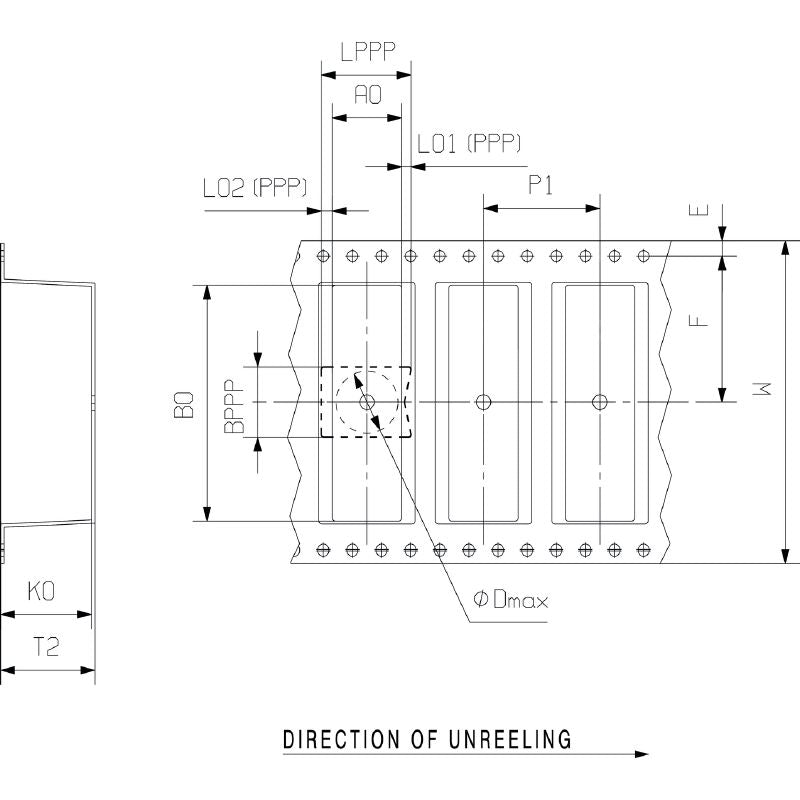

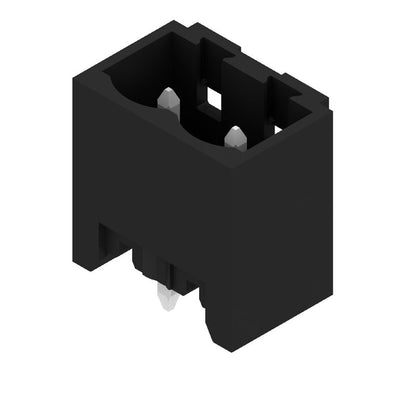

Introducing the SL-SMT 508HC/02/180G, a high-performance male header PCB plug-in connector optimized for THT/THR soldering With a 508 mm pitch, this connector boasts two poles positioned at a 180° angle It features solder pins measuring 32 mm in length, which are elegantly tin-plated with a stylish black finish For added convenience, this product is packaged in a tape format, making it easy to handle and store.

Features and Benefits:

•Complies with RoHS without exemptions.

•Can be coded.

•Finger-safe when unplugged and back-of-hand safe when plugged.

•Rated for 400 V and 27.5 A.

•Low volume resistance of ≤5 mΩ.

•Compatible with a variety of installation standards.

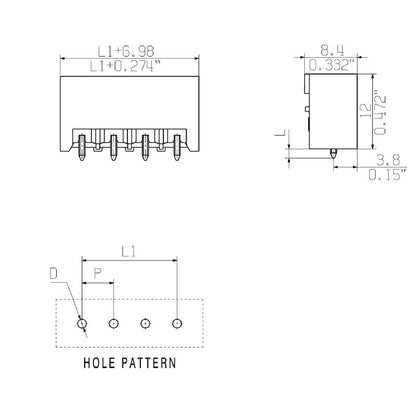

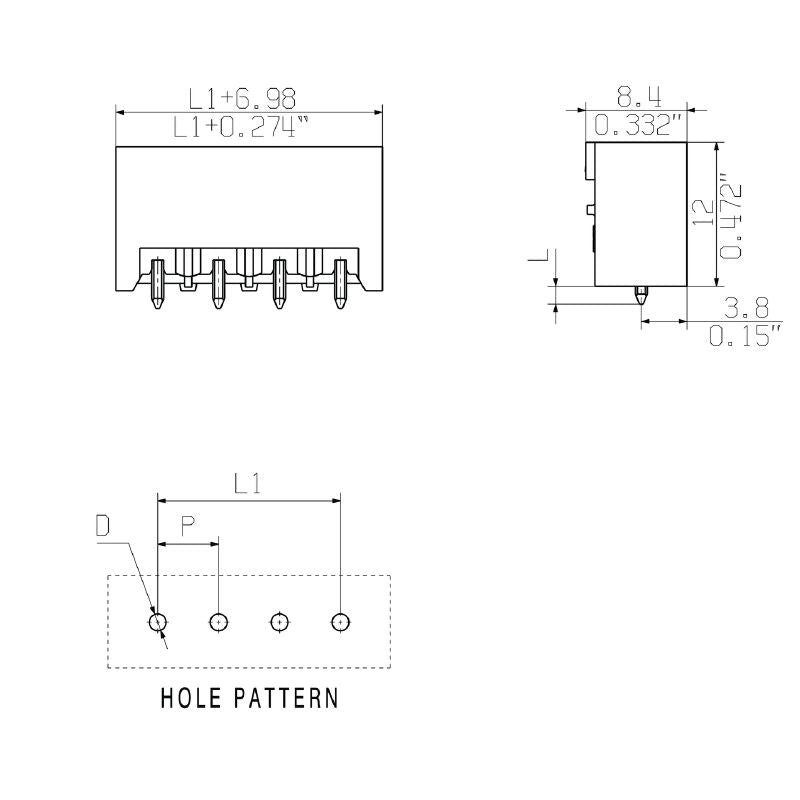

Specifications:

Depth	8.5 mm
Height	15.2 mm
Width	12.06 mm
Net weight	2.896 g
Type of connection	Board connection
Mounting onto the PCB	THT/THR solder connection
Rated current	{'min at 20°C': '27.5 A', 'max at 20°C': '19 A', 'min at 40°C': '24 A', 'max at 40°C': '16.5 A'}
Rated voltage	{'surge voltage class II/2': '400 V', 'surge voltage class III/2': '320 V', 'surge voltage class III/3': '250 V'}
Operating temperature	{'min': '-50 °C', 'max': '100 °C'}
Storage temperature	{'min': '-40 °C', 'max': '70 °C'}
Insulating material	LCP GF
Contact surface	tinned
