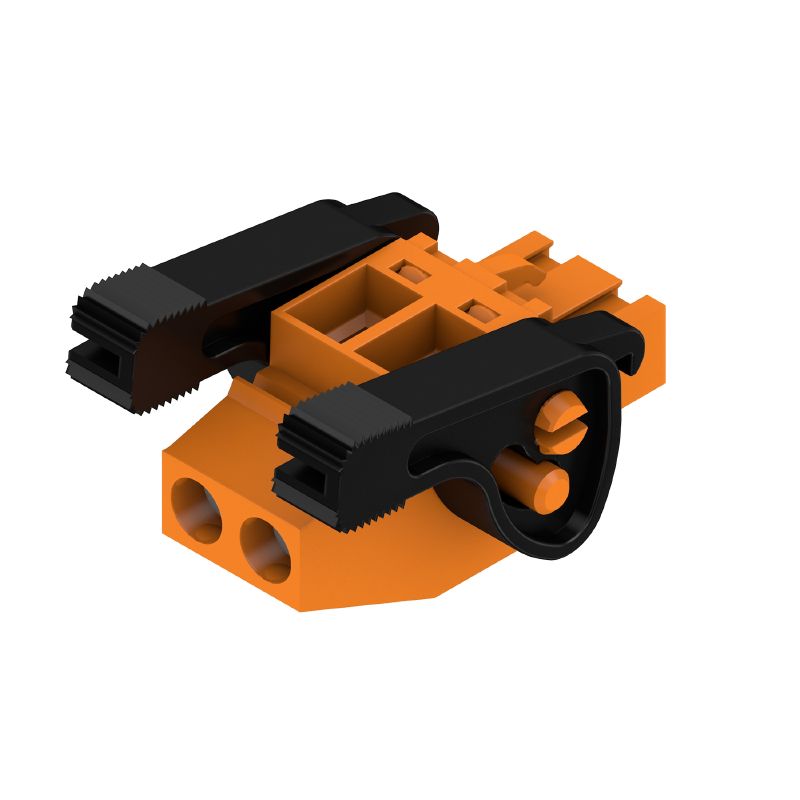

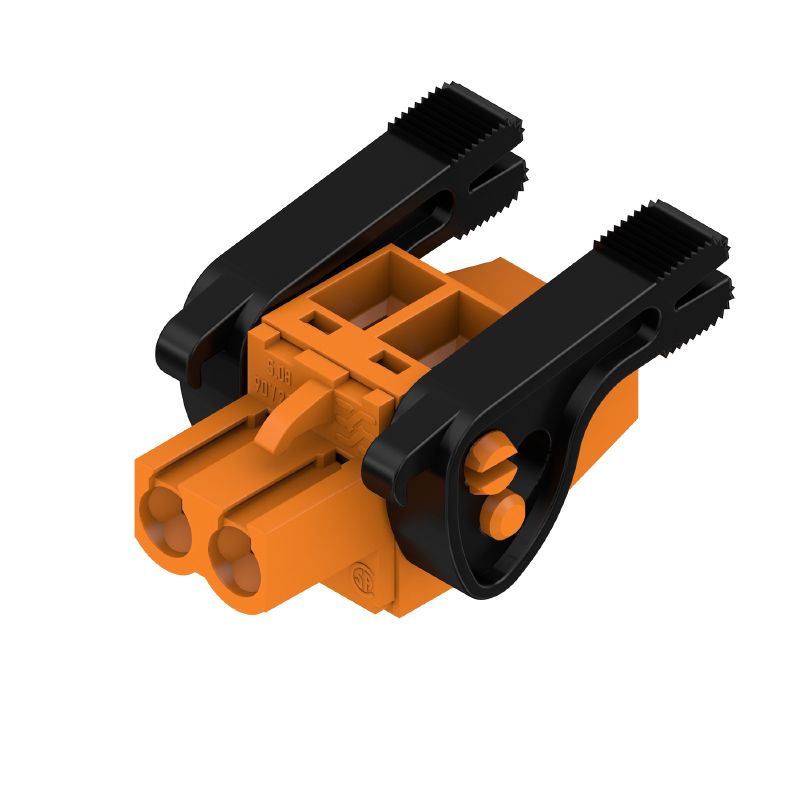

1087250000 - 90° Female PCB Connector, 5.08mm Pitch, 4 mm² Clamping (Pack of 90)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This female PCB plug-in connector boasts a pitch of 508 mm and comes with an angled 90° design The clamping yoke connection supports a maximum clamping range of 4 mm² Each purchase includes 90 connectors, all of which meet RoHS compliance standards Additionally, it holds a UL certification, number E60693 This component can handle voltage ratings of up to 400 V (IEC) and 300 V (UL), alongside current ratings of 23 A and 20 A respectively.

Features and Benefits:

•RoHS compliant.

•Easy to connect with a clamping yoke mechanism.

•Can handle multiple wire sizes between 0.2 - 4 mm².

•Touch-safe protection according to DIN standards.

•Can be coded for orientation during connection.

•Durable design suitable for various environments.

Specifications:
