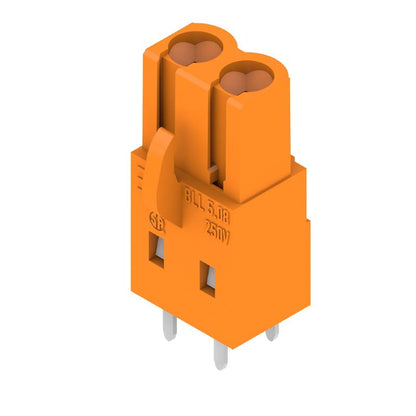

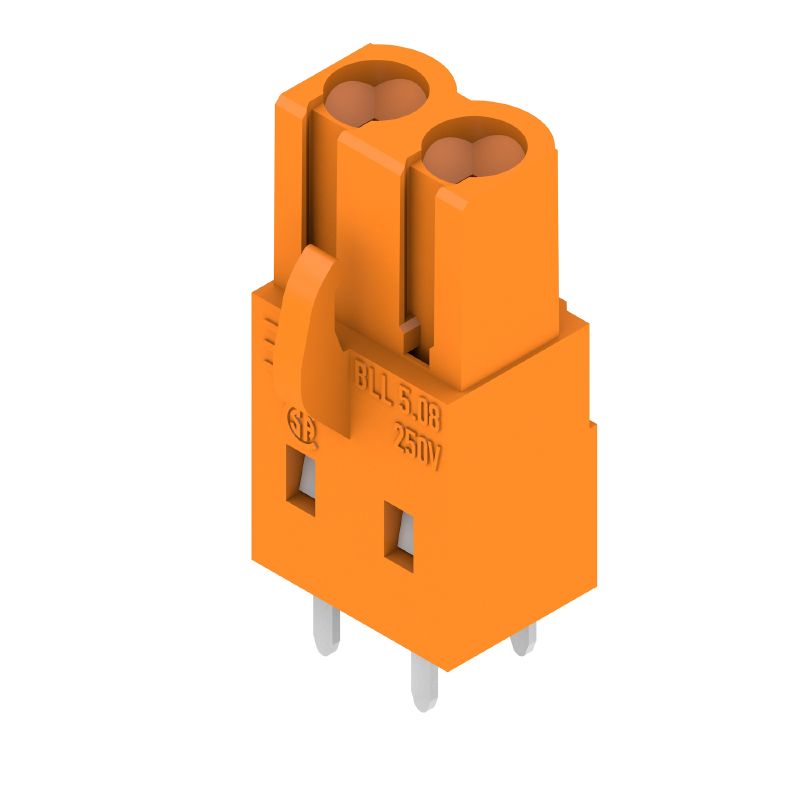

1045070000 - 5.08mm 2-Pole PCB Connector with 3.2mm Solder Pins (Pack of 180)

1045070000 - 5.08mm 2-Pole PCB Connector with 3.2mm Solder Pins (Pack of 180)

SKU: SKU: 1045070000   Download PDF

Select a Variant:
  • 1045070000 - 5.08mm 2-Pole PCB Connector with 3.2mm Solder Pins (Pack of 180)
Qty:
Regular price Now $200.08   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $200.08 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Elevate your circuit connections with the BLL508/02/180 32 SN BK BX CO PCB plug-in connector Designed specifically for female headers, this component includes a closed side and features THT solder connections with a 508 mm pitch, making it an excellent choice for secure board installations It accommodates 2 poles positioned at a 180° angle and offers solder pin lengths of 32 mm Crafted from tinned black material and supplied in a box, this connector is recognized for its compliance with RoHS standards and carries certifications such as UL E60693, ensuring reliability for your electronic projects.

Features and Benefits:

    •Includes touch-safe protection according to DIN VDE standards.

    •Can be coded for various applications.

    •Has a maximum plugging cycle of 25.

Specifications:

 IEC Rating 400 V / 23 A
 UL Rating 300 V / 15 A
 Insulating Material PBT GF
 Pitch in mm 5.08 mm
 Number of Poles 2
 Solder Eyelet Hole Diameter 1.3 mm
 Operating Temperature Range -50 °C to 100 °C
 Storage Temperature Range -40 °C to 70 °C
 Plugging Force/Pole, max 5 N
 Pulling Force/Pole, max 5 N
 Volume Resistance ≤5 mΩ
 Protection Degree IP20
 Flammability Rating V-0
 Contact Material Copper alloy
 Contact Surface tinned
