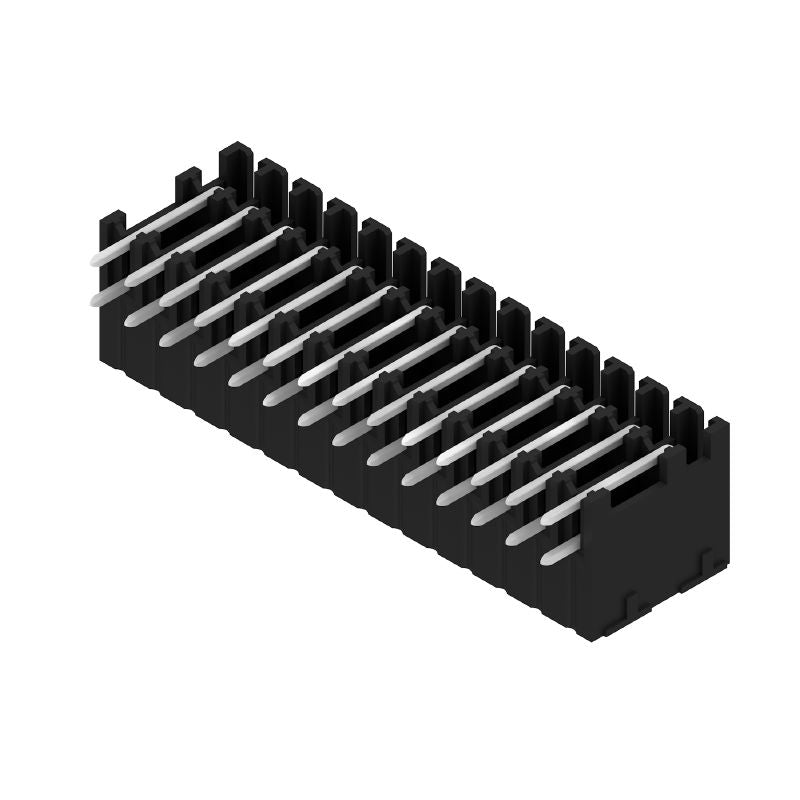

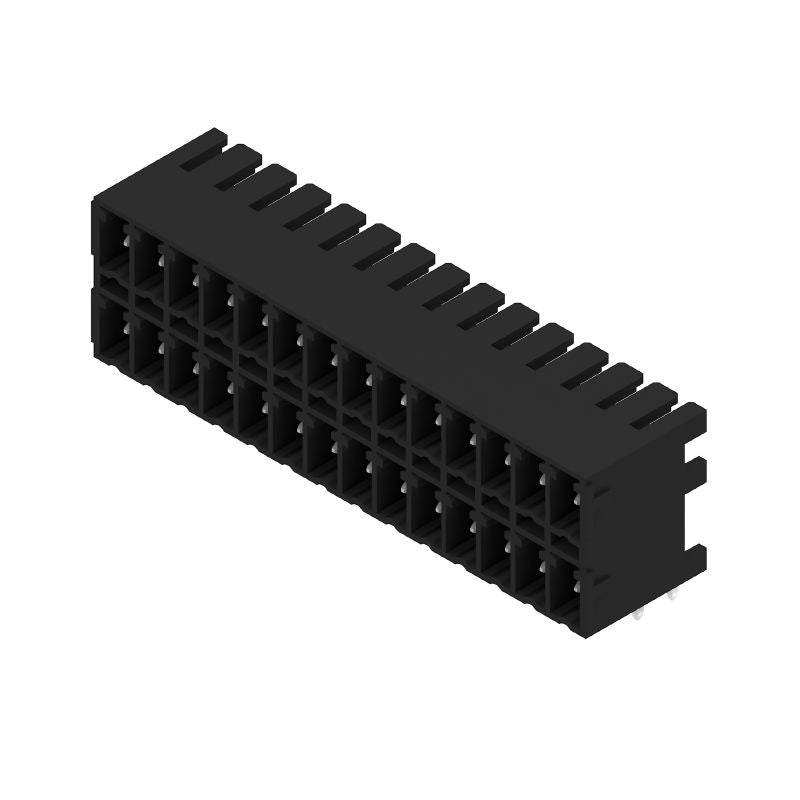

1040930000 - 28-Pole 90° PCB Plug-In Connector with 3.2mm Pins (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliability with this male header PCB plug-in connector, designed for efficient connections It features a closed side profile with a through-hole (THT) soldering method, boasting 28 poles oriented at a 90° angle The connector comes with 32 mm long solder pins finished in tin for enhanced conductivity, all packaged neatly in an elegant black container Rest assured, this product adheres to ROHS regulations, ensuring compliance with safety standards.

Features and Benefits:

•IEC rated for 320 V / 17.5 A.

•UL rated for 300 V / 10 A.

•Mounts onto the PCB with THT solder connection.

•Can be coded for configuration.

•Touch-safe protection.

•RoHS compliant without exemption.

•No SVHC above 0.1 wt%.
