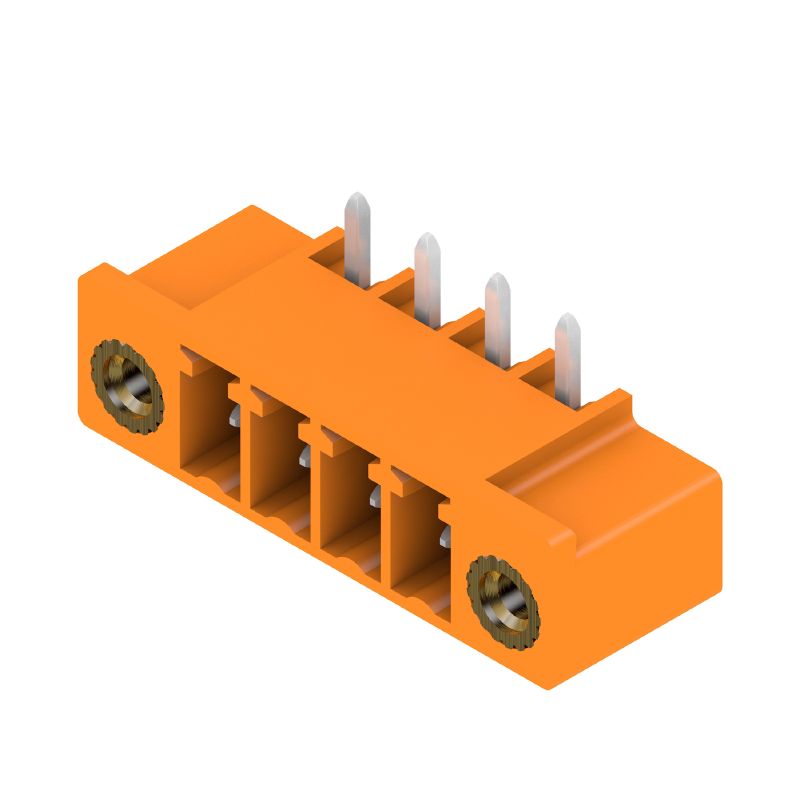

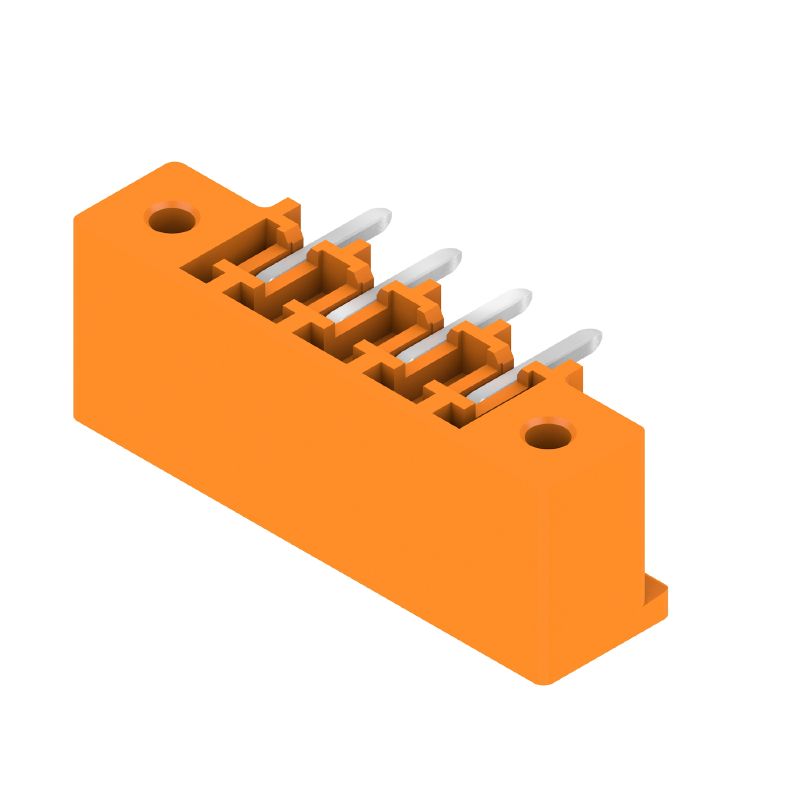

1038060000 - 4-Pole 3.81mm PCB Connector with 270° Elbow and Tinned Pins (Pack of 50)

Description:

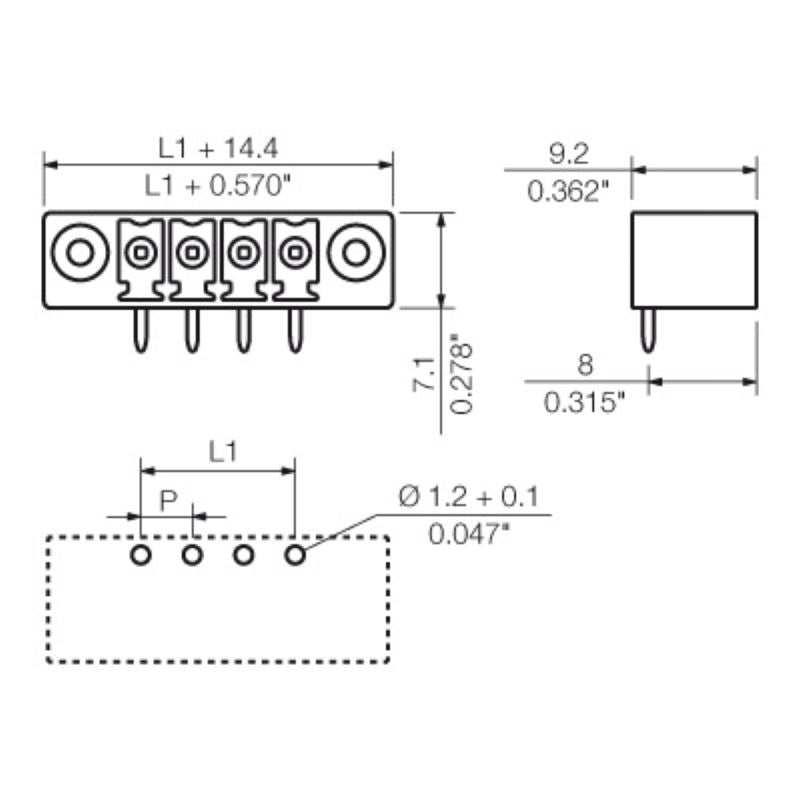

Introducing this robust male header PCB plug-in connector, designed for reliable performance with its flange and THT solder connection Offering a pitch measurement of 381 mm and accommodating 4 poles, this connector features a 270° outgoing elbow for versatile applications The solder pins, measuring 32 mm, are tinned and showcased in a vibrant orange hue This product adheres to ROHS regulations, guaranteeing safety and compliance.

For quality assurance, refer to its UL File Number E60693 It is conveniently packaged in a box, with the order number 1038060000 for easy reference.

Features and Benefits:

•Can be coded.

•Finger-safe when unplugged and back-of-hand-safe when plugged.

•Touch-safe protection according to DIN VDE standards.

•Compliant with ROHS requirements.

•Storage temperature range from -40 °C to 70 °C.

•Operating temperature range from -50 °C to 120 °C.

•Rated current of 17.5 A at 20 °C and 17 A at 40 °C.

Specifications:
