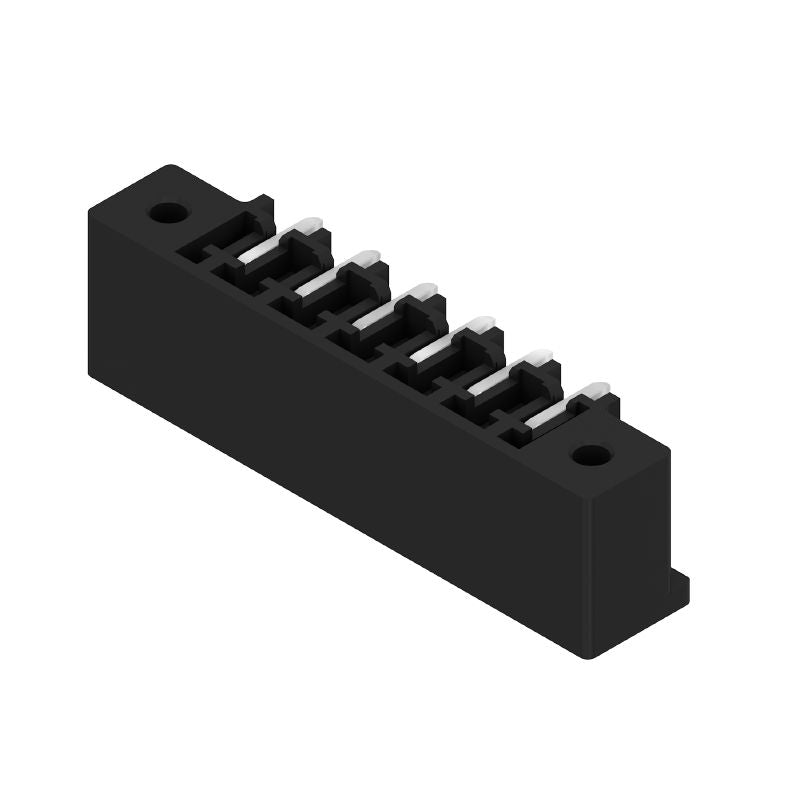

1037370000 - 3.81mm Male Header Connector with 270° Angle, 6 Poles (Pack of 50)

SKU: SKU: 1037370000 Download PDF

Select a Variant:

1037370000 - 3.81mm Male Header Connector with 270° Angle, 6 Poles (Pack of 50)

SET THE QTY:

Now $189.65 Web pricing policy

~~BEFORE $0.00~~ Now $189.65 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a male header PCB plug-in connector equipped with a sturdy flange This component features a THT/THR solder connection with a measurement of 381 mm and includes six poles for efficient connectivity The connector is designed with an outgoing elbow at a 270° angle, complemented by solder pins that measure 15 mm in length Finished in a sleek black color, it is conveniently packaged in a box for easy storage and transport.

Features and Benefits:

•Designed for THT/THR solder connection.

•Finger-safe unplugged and back-of-hand-safe plugged.

•Can be coded for different applications.

Specifications:

Order No.	1037370000
IEC Rated Voltage	320 V / 17.5 A
UL Rated Voltage	300 V / 11 A
Dimensions	{'Depth': '9.2 mm', 'Height': '8.6 mm', 'Width': '33.45 mm'}
Storage Temperature	{'Min': '-40 °C', 'Max': '70 °C'}
Operating Temperature	{'Min': '-50 °C', 'Max': '120 °C'}
Rated Current	{'Min (Tu=20°C)': '17.5 A', 'Max (Tu=20°C)': '17 A'}
Solder Pin Length	1.5 mm
Number of Poles	6
Touch-safe Protection	IP20 plugged / IP10 unplugged
Material	{'Insulating Material': 'LCP GF', 'Contact Material': 'Cu-alloy'}
RoHS Compliance	Compliant with exemption
CR Rating	≥ 175
VPE Dimensions	{'Length': '50 mm', 'Width': '70 mm', 'Height': '100 mm'}
