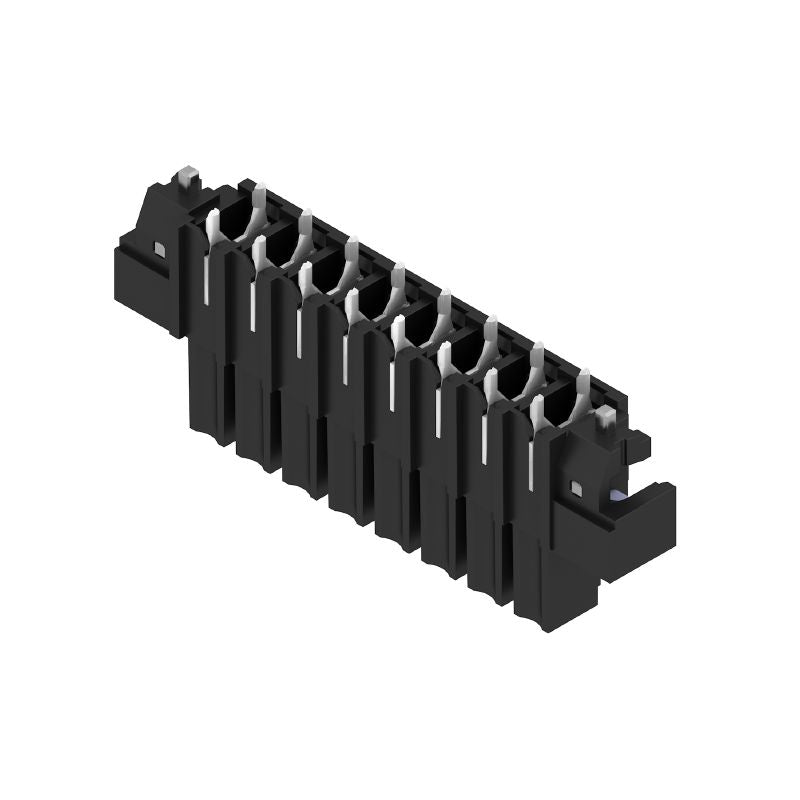

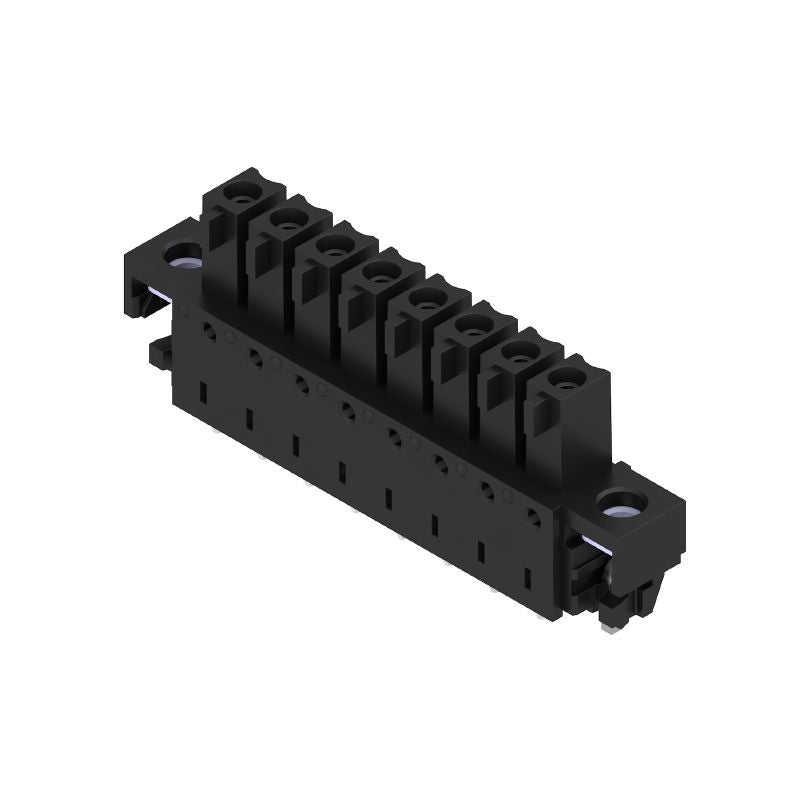

1029330000 - 8-Pole 3.81mm PCB Connector with Inverted Solder Flange (Pack of 50)

1029330000 - 8-Pole 3.81mm PCB Connector with Inverted Solder Flange (Pack of 50)

SKU: SKU: 1029330000   Download PDF

Select a Variant:
  • 1029330000 - 8-Pole 3.81mm PCB Connector with Inverted Solder Flange (Pack of 50)
Qty:
Regular price Now $282.26   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $282.26 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable PCB plug-in connector featuring a female header with an inverted solder flange This component is engineered for THT/THR solder connections, providing a pitch of 381 mm across its eight poles, arranged at a 180° angle Each pin measures 15 mm and comes with tinned surfaces, all neatly packaged in a black box for easy storage and use Perfect for ensuring secure and effective electrical connections.

Features and Benefits:

    •Conforms to RoHS standards without exemptions.

    •Safe from back-of-hand touch according to DIN VDE 57 106.

    •Can be coded for secure connections.

    •Minimal pulling and plugging forces required.

    •Suitable for board connections in various electronic applications.

Specifications:

 Number of poles 8
 Solder pin length 1.5 mm
 Solder pin dimensions d = 0.8 mm
 Operating temperature, min -50 °C
 Operating temperature, max 120 °C
 Rated voltage 320 V

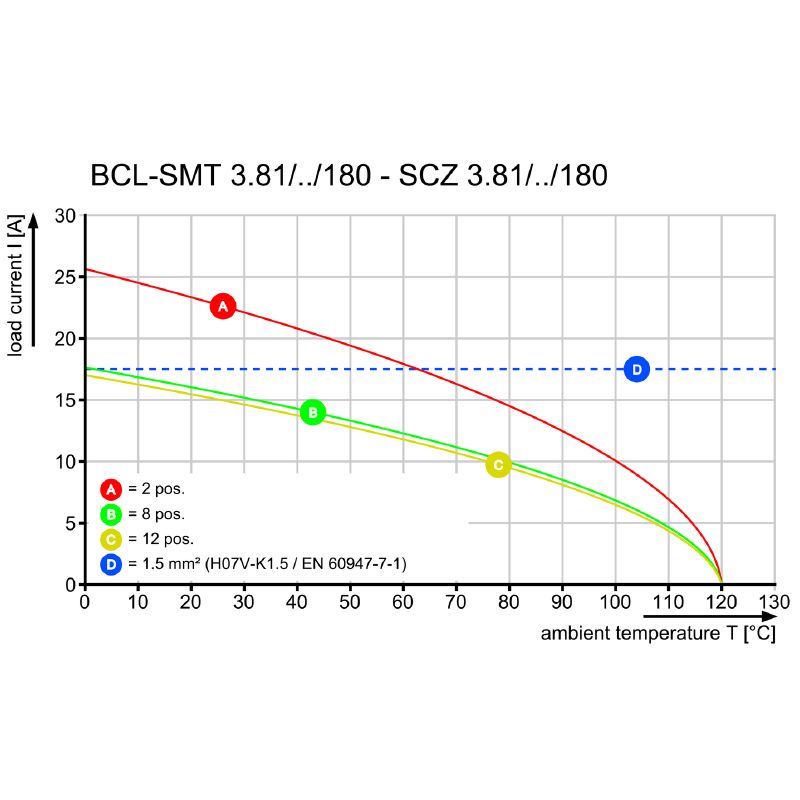

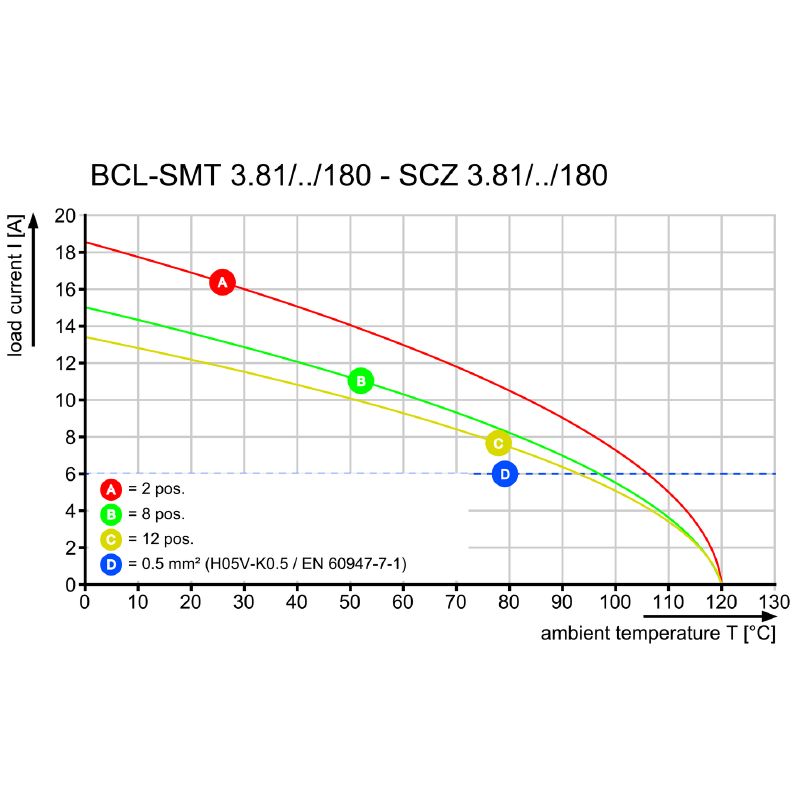

 Rated current 17.5 A
 Pitch in mm (P) 3.81 mm
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
 Volume resistance ≤5 mΩ
 Touch-safe protection IP20 plugged
