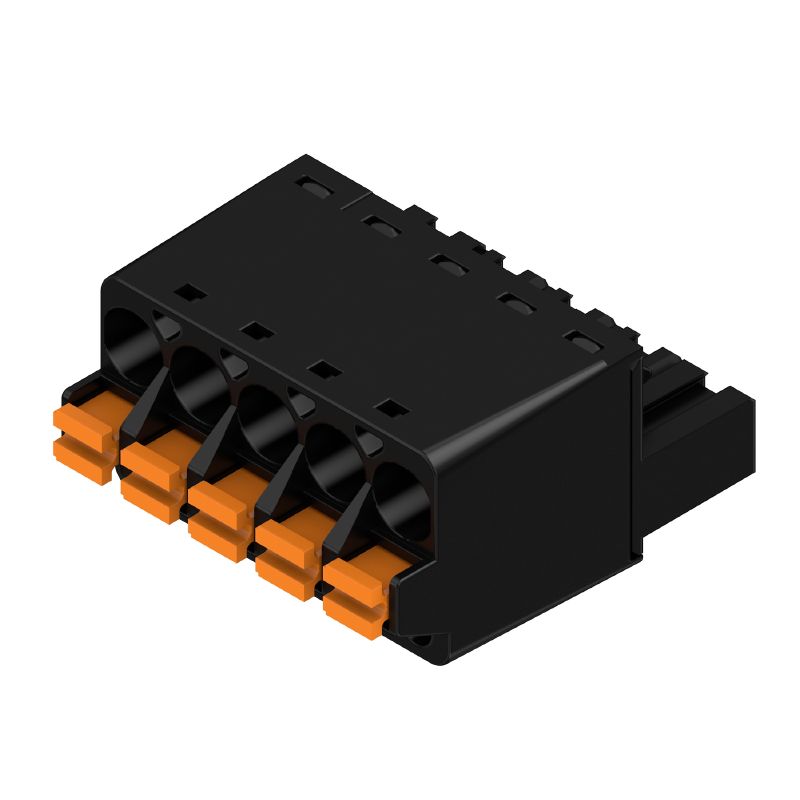

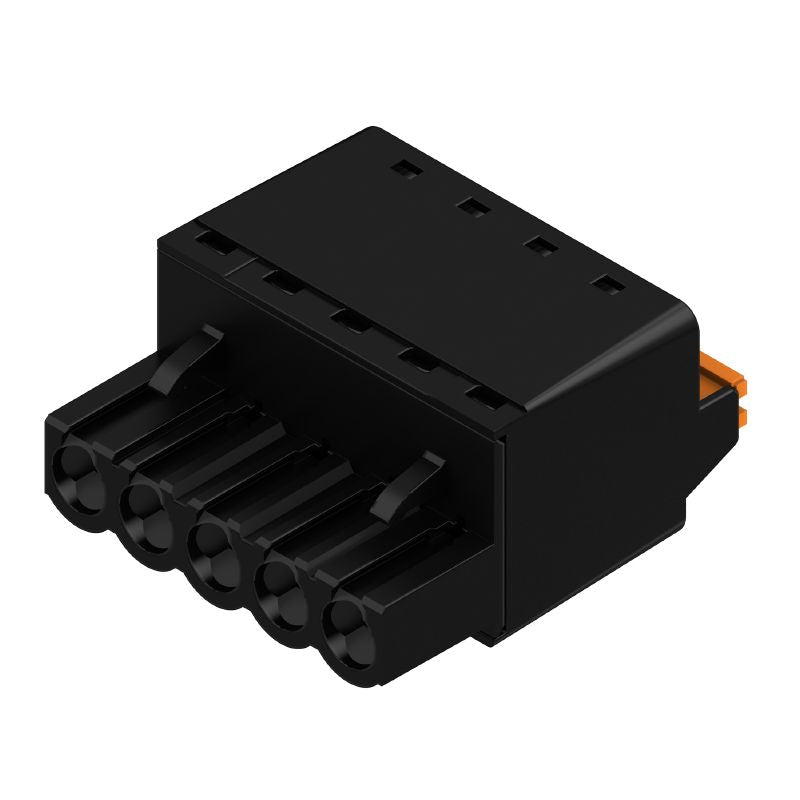

1017710000 - 5mm Pitch PCB Female Connector with Push-In Design (Pack of 72)

1017710000 - 5mm Pitch PCB Female Connector with Push-In Design (Pack of 72)

SKU: SKU: 1017710000   Download PDF

Select a Variant:
  • 1017710000 - 5mm Pitch PCB Female Connector with Push-In Design (Pack of 72)
Qty:
Regular price Now $233.09   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $233.09 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the BLF 500HC/05/180 SN BK BX, a versatile female plug-in connector crafted for PCB applications With a compact 500 mm pitch, it utilizes a PUSH IN connection method complemented by an actuator for seamless integration This connector supports a maximum clamping range of 331 mm², accommodating wire sizes between 02 mm² and 25 mm² Engineered for reliability, it boasts a rated voltage of 400 V and a rated current of 23 A to meet IEC standards, making it an excellent choice for various electrical applications.

Features and Benefits:

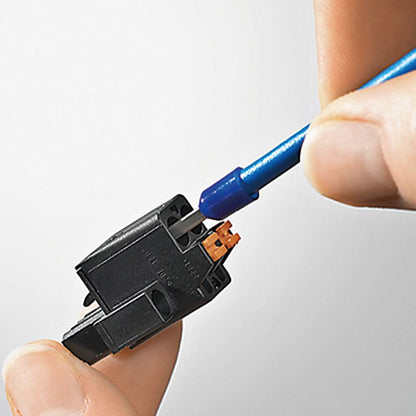

    •Designed for field connection.

    •180° conductor outlet direction.

    •Touch-safe protection according to DIN standards.

    •Rated for high surge voltage and current.

Specifications:

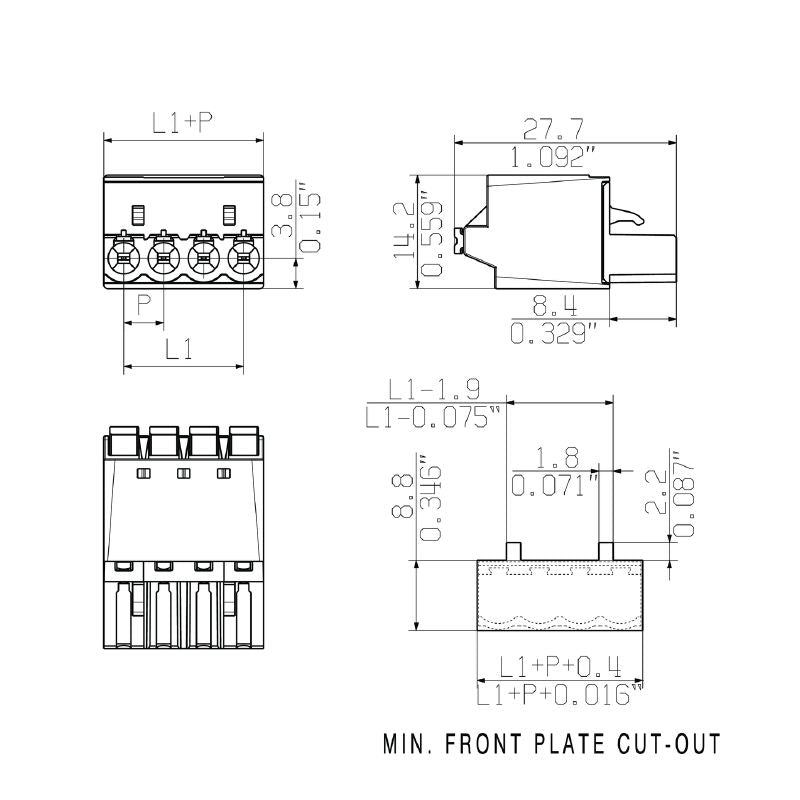

 Depth 27.6 mm
 Height 14.2 mm
 Width 25 mm
 Number of poles 5
 Rated cross-section 2.5 mm²
 Insulating material PBT
 Rated voltage 400 V / 300 V

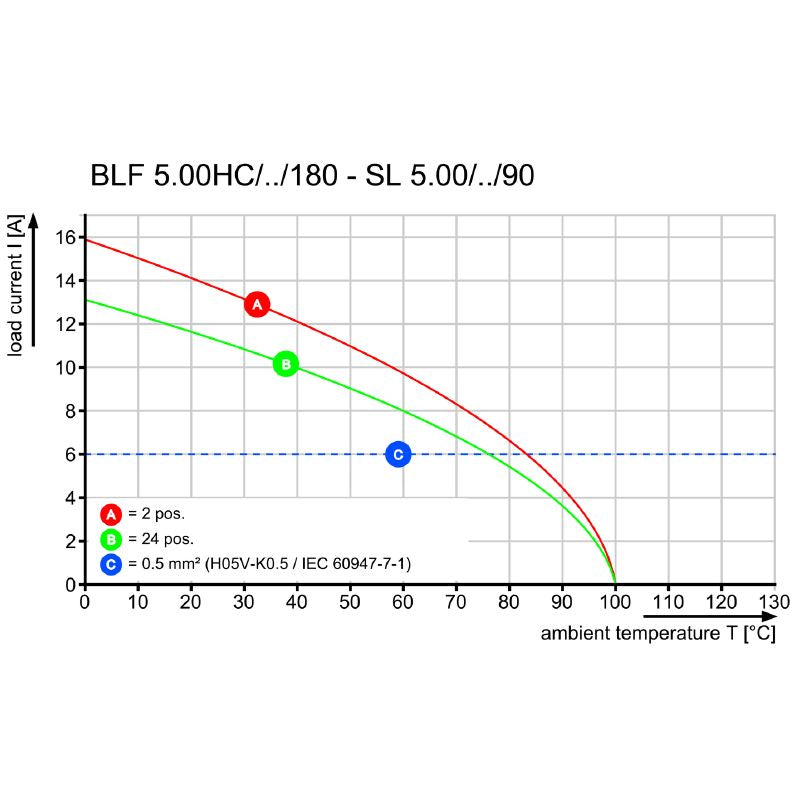

 Rated current 23 A
 Touch-safe protection IP20 plugged / IP10 unplugged
 Volume resistance ≤5 mΩ
 Temperature range, installation, min. -30 °C
 Temperature range, installation, max. 100 °C
 Protection degree IP20
 Plugging cycles 25
