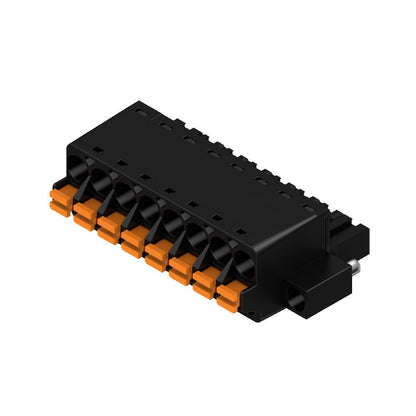

1017310000 - 5.00mm Female PCB Connector, 8 Poles, 180° Angle (Pack of 36)

1017310000 - 5.00mm Female PCB Connector, 8 Poles, 180° Angle (Pack of 36)

SKU: SKU: 1017310000   Download PDF

Select a Variant:
  • 1017310000 - 5.00mm Female PCB Connector, 8 Poles, 180° Angle (Pack of 36)
Qty:
Regular price Now $184.25   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $184.25 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

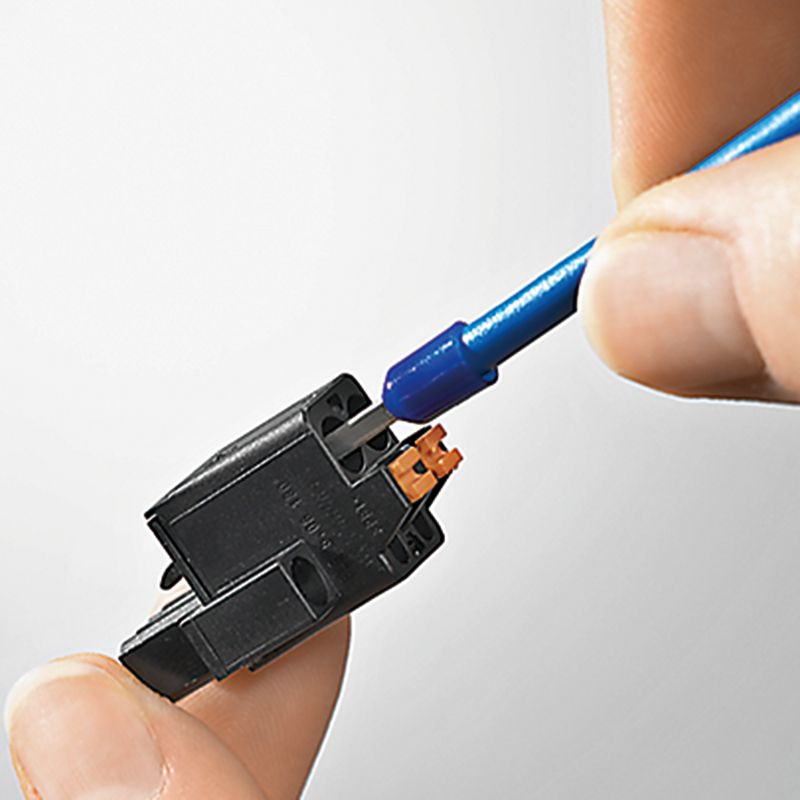

Discover a robust female plug PCB connector engineered for dependable field applications This connector features a 500 mm pitch and can securely accommodate up to 8 poles positioned at a 180° angle With a PUSH IN connection mechanism complemented by an actuator, it efficiently hosts a maximum clamping range of 331 mm² Compliant with RoHS standards, this connector is delivered in a convenient box, ensuring easy storage and transport.

Features and Benefits:

    •Rated for IEC applications up to 400 V and 23 A.

    •UL rated for 300 V and 18.5 A.

    •Safe from back-of-hand touch according to DIN VDE regulations.

    •Has a protection degree of IP20 when plugged and IP10 when unplugged.

    •Contains 25 mating cycles lifespan.

    •Suitable for field connections in various electrical systems.

Specifications:

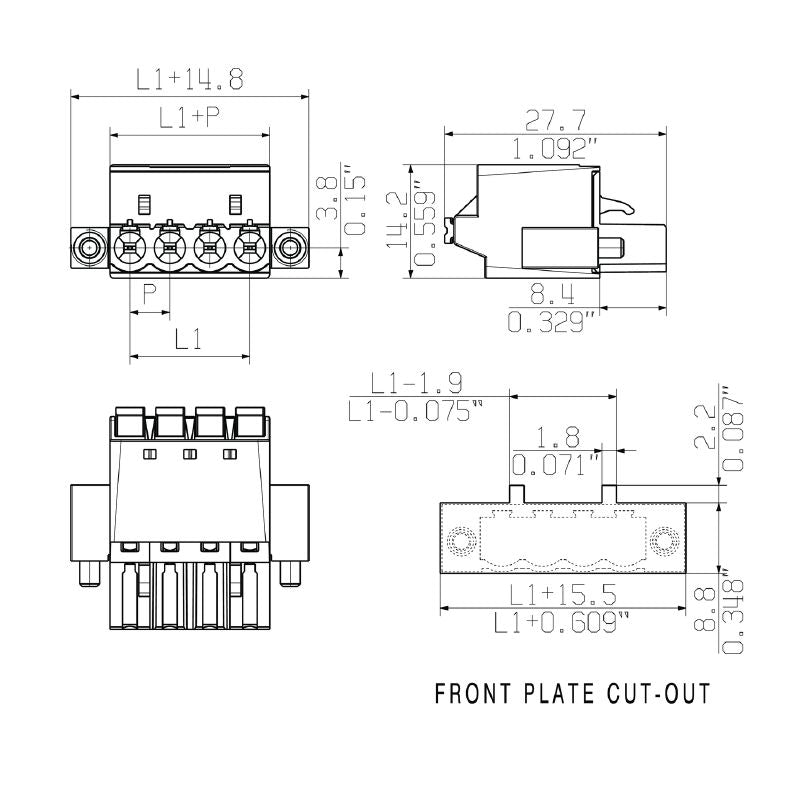

 Depth 27.6 mm
 Height 14.2 mm
 Width 45.1 mm
 Rated voltage (IEC) 400 V
 Rated current (IEC) 23 A
 Clamping range (max) 3.31 mm²
 Operating temperature min -50 °C
 Operating temperature max 100 °C
 Storage temperature min -40 °C
 Storage temperature max 70 °C
 Insulating material PBT
 Plugging force/pole, max 7 N
 Pulling force/pole, max 5.5 N
 Rated impulse voltage 4 kV
