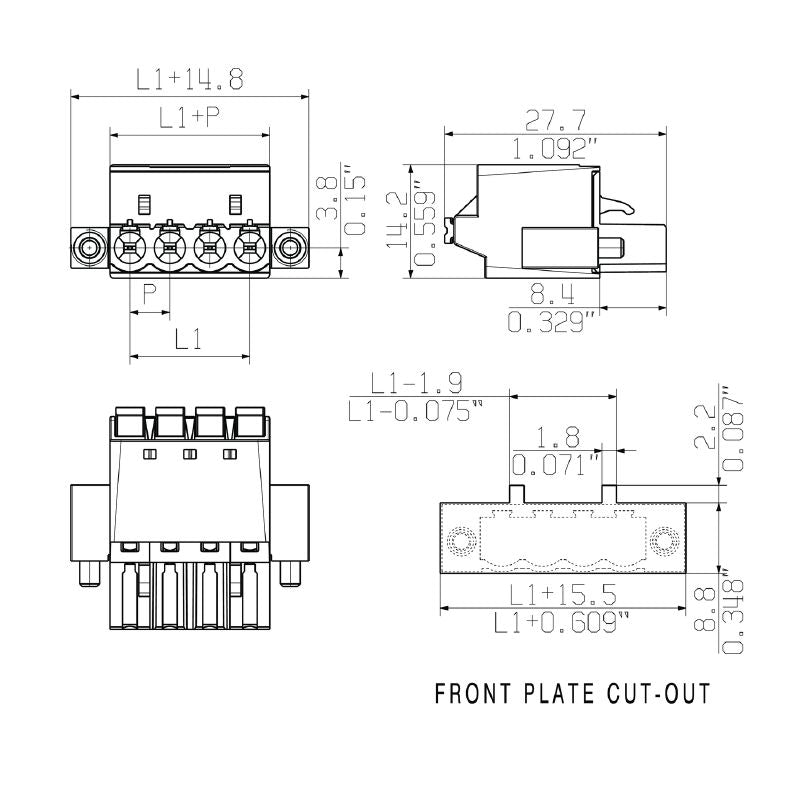

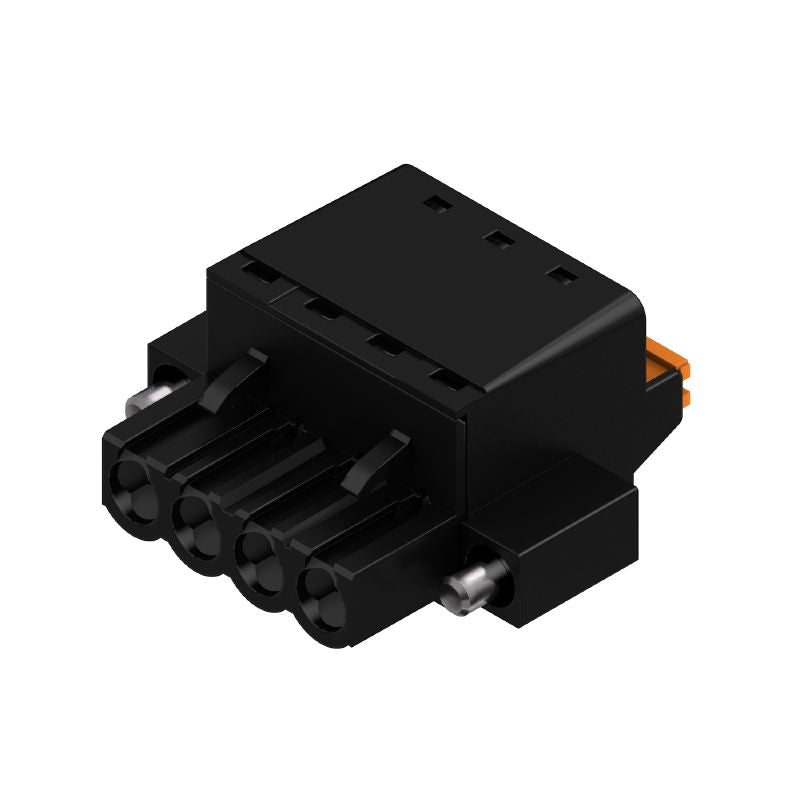

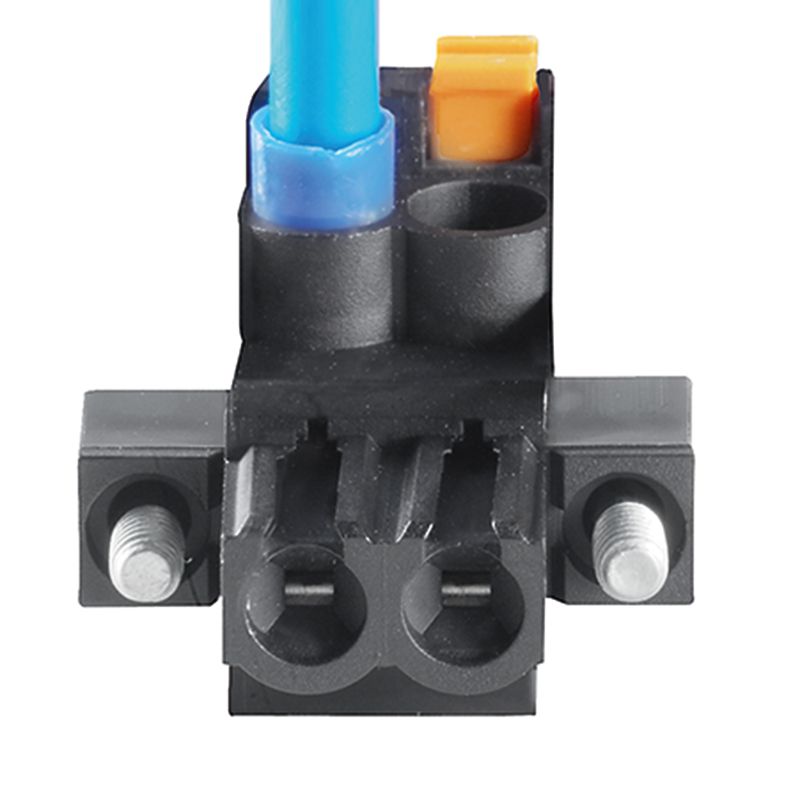

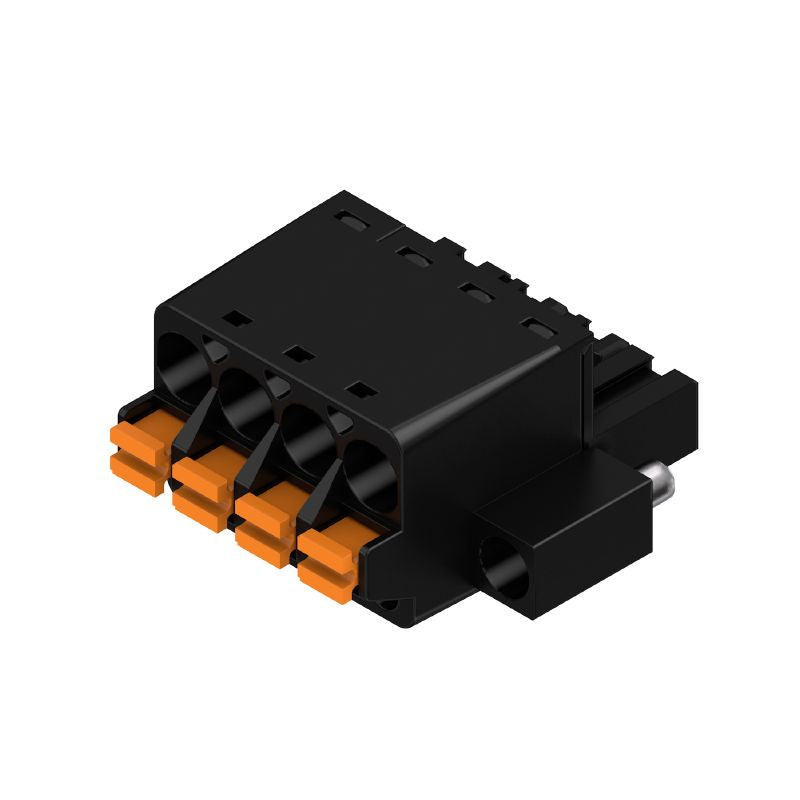

1017260000 - 5.00mm 4-Pole Female PCB Connector, 180° Configuration (Pack of 60)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

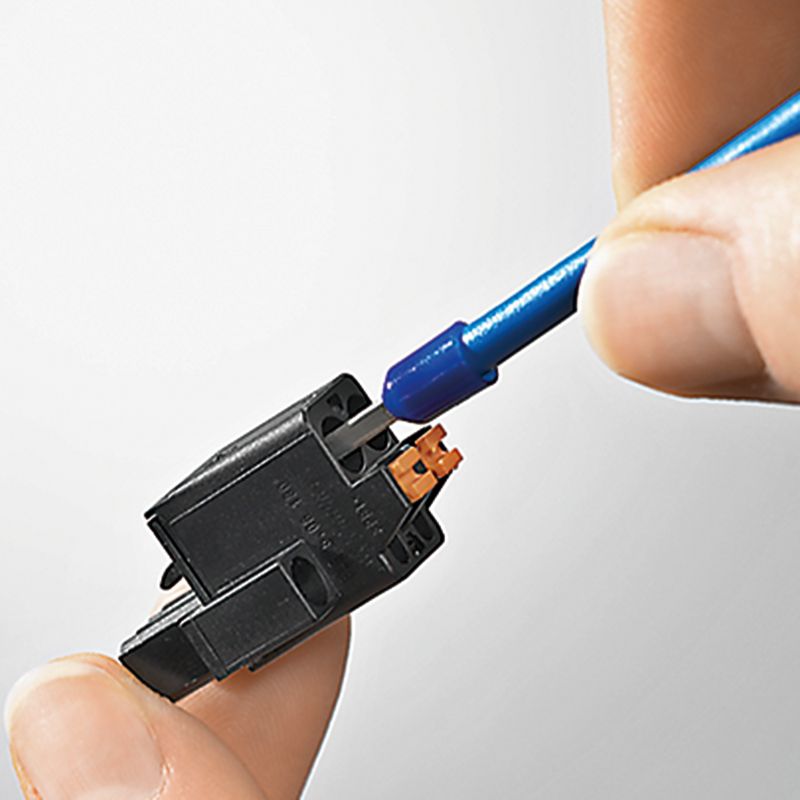

Introducing a versatile PCB plug-in connector designed for seamless integration This female plug boasts a 500 mm pitch and is equipped with four poles arranged in a 180° layout It facilitates a reliable PUSH IN connection via an actuator, with a maximum clamping capacity of 331 mm² Packaged neatly in a box, this connector adheres to several industry standards, including RoHS compliance, ensuring it meets your quality requirements without any exemptions.

Perfect for your electronic connectivity needs!.

Features and Benefits:

•Rated for IEC: 400 V / 23 A / 0.2 - 2.5 mm².

•UL rated for 300 V / 18.5 A / AWG 26 - AWG 12.

•Touch safe protection according to DIN VDE standards..

•Can be coded for secure connection..

•Field connection in electronic applications..

Specifications:
