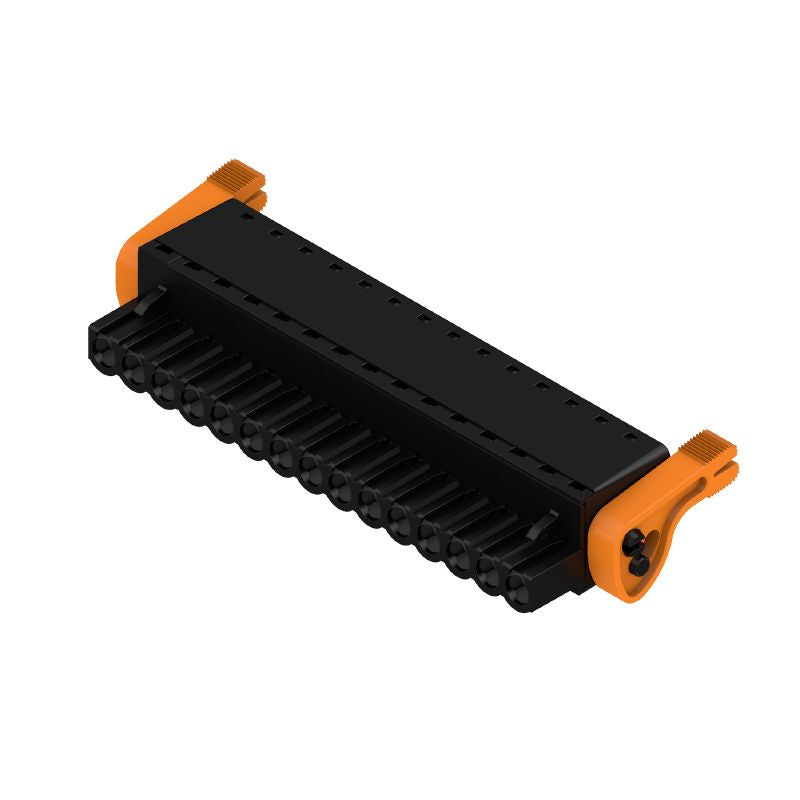

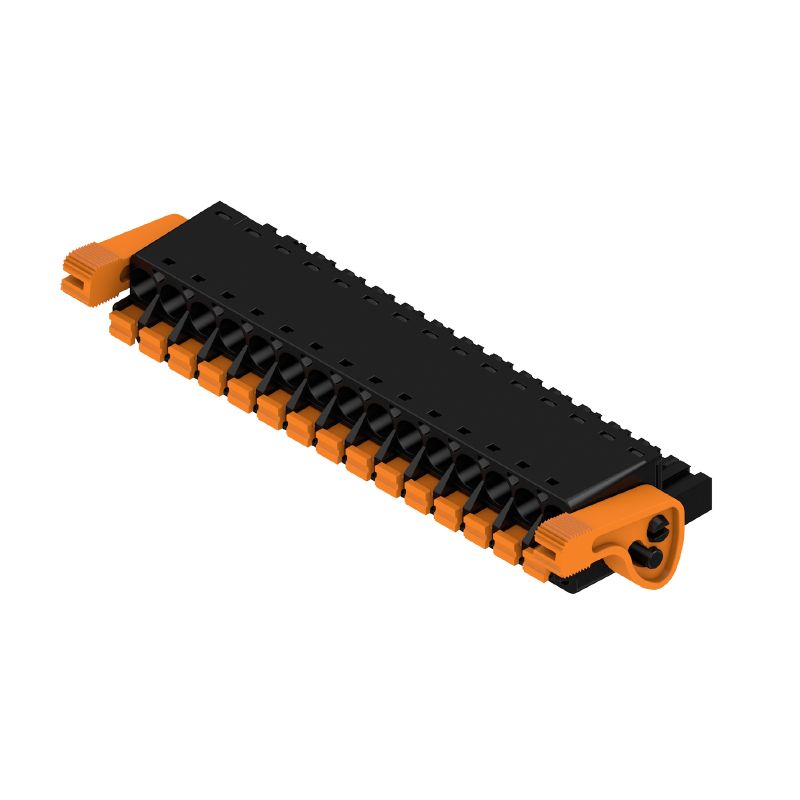

1015680000 - 15-Pole 5mm PCB Female Connector, 400V, Compact Design (Pack of 18)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience reliable connectivity with this female plug PCB connector, featuring a 500 mm pitch and 15 poles set at a 180° angle This connector utilizes a PUSH IN method with an actuator and can accommodate wire cross-sections of up to 331 mm² It's RoHS compliant for safety and sustainability, with a maximum voltage rating of 400 V and a rated current capacity of 23 A The compact design measures 296 mm in depth, 15.

1 mm in height, and 848 mm in width, making it a practical choice for various applications Each unit comes securely packaged in a box.

Features and Benefits:

•RoHS Compliant.

•PUSH IN connection with actuator.

•Suitable for field connections.

•Can be coded for connection safety.

•Safe from back-of-hand touch (touch-safe protection).

•Compact design.

Specifications:
