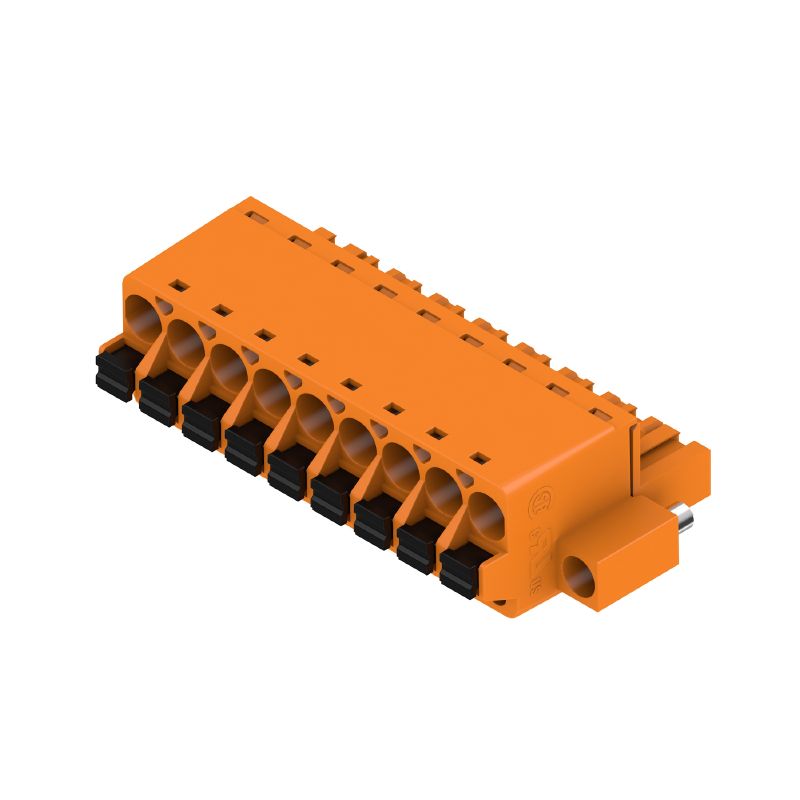

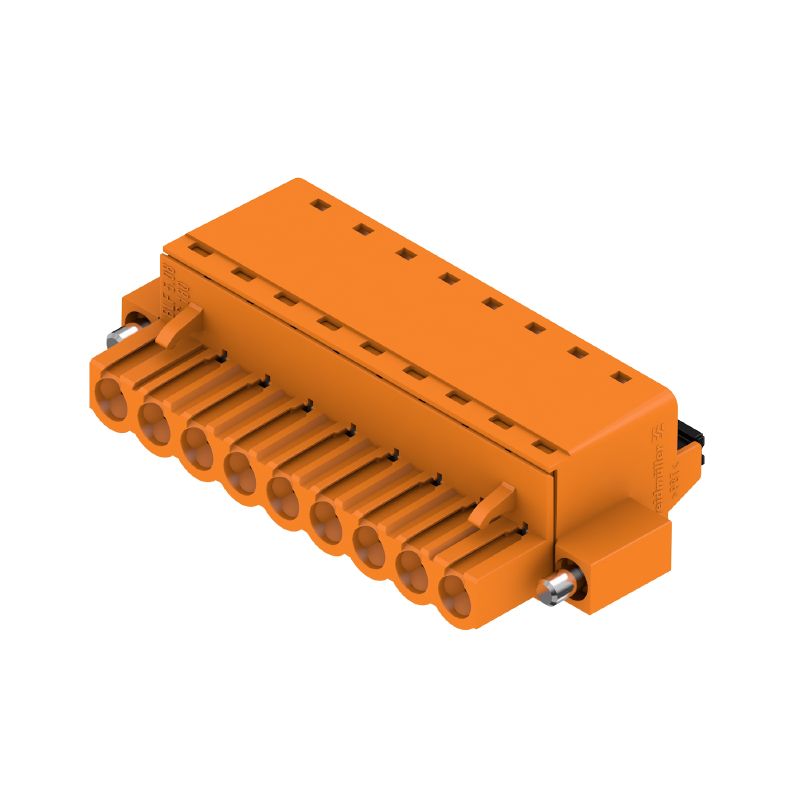

1013160000 - 5.08mm PCB Female Connector with 9 Poles, 180° Angle (Pack of 30)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BLF 508HC/09/180F SN OR BX, a robust female plug-in connector engineered for PCB applications This connector boasts a 508 mm pitch and features 9 pins, allowing for a 180° connection angle It is equipped with a convenient push-in mechanism activated by an actuator, enabling the use of wires with sizes of up to 331 mm² Adhering to RoHS standards, this connector comes with multiple international certifications, including UL and CSA approval.

Each package contains 30 connectors, making it an excellent choice for your projects.

Features and Benefits:

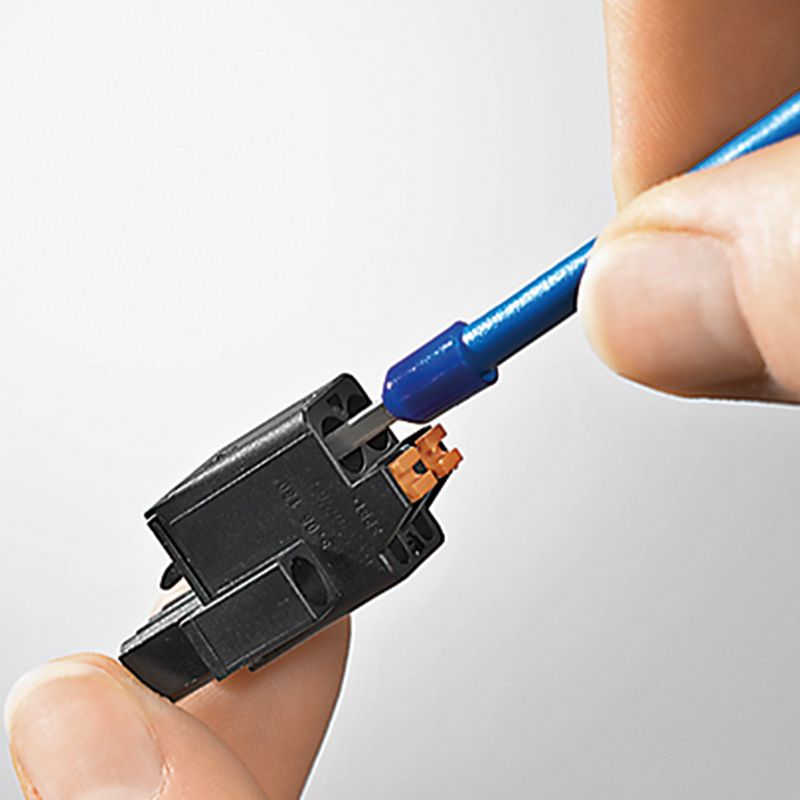

•PUSH IN with actuator connection method.

•Field connection type.

•Touch-safe protections per DIN VDE standards.

•Can be coded for specific applications.

•Compliance with RoHS and other international standards.

•Suitable for use in various PCB applications where reliable connections are necessary.

Specifications:
