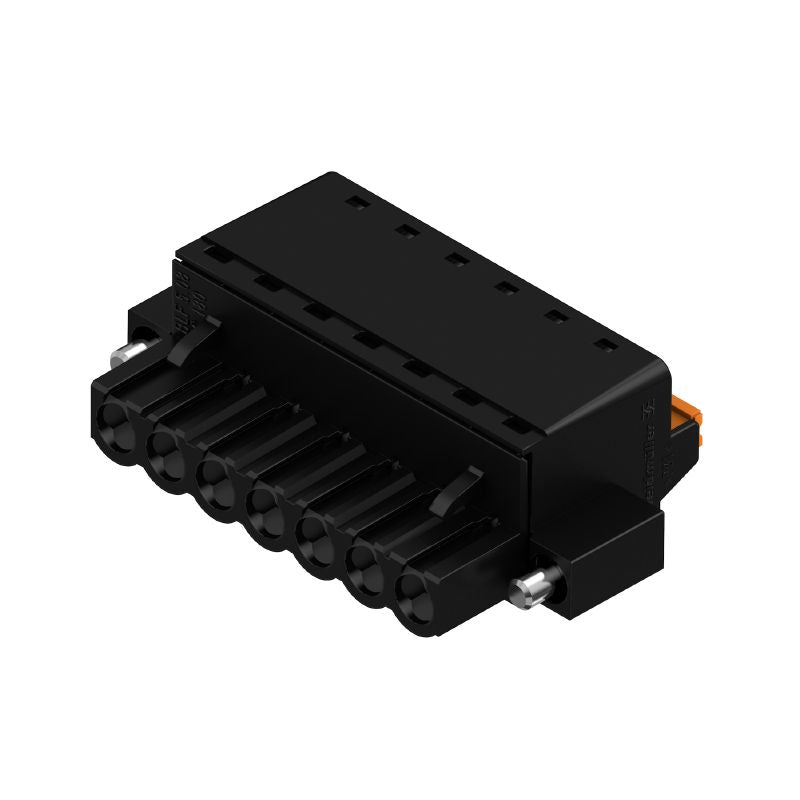

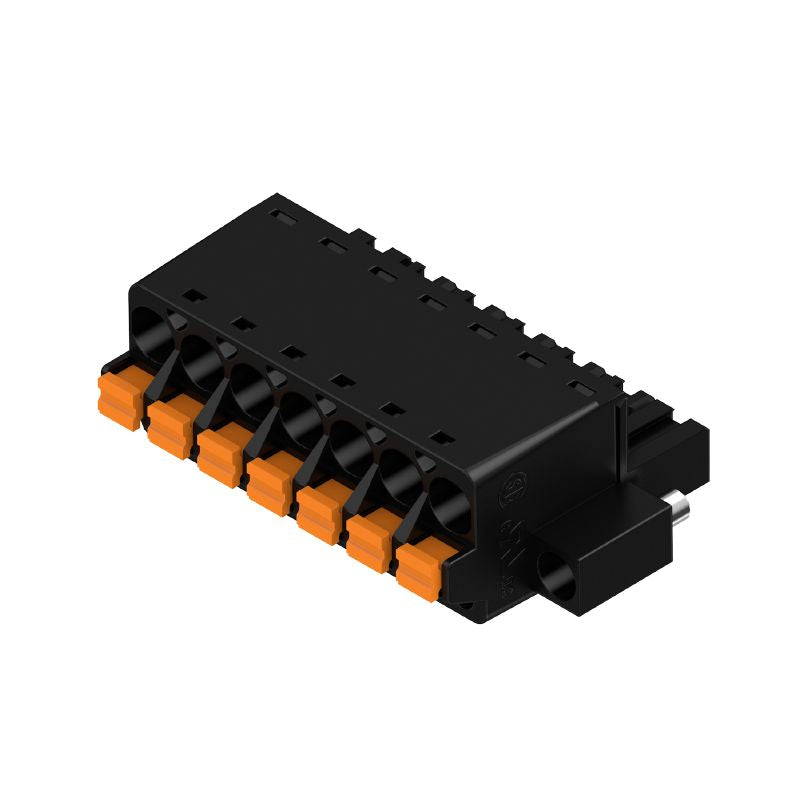

1012690000 - 7-Pole 5.08mm Female PCB Connector with PUSH IN Design (Pack of 36)

1012690000 - 7-Pole 5.08mm Female PCB Connector with PUSH IN Design (Pack of 36)

SKU: SKU: 1012690000   Download PDF

Select a Variant:
  • 1012690000 - 7-Pole 5.08mm Female PCB Connector with PUSH IN Design (Pack of 36)
Qty:
Regular price Now $176.24   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $176.24 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the BLF 508HC/07/180F SN BK BX, a high-quality female plug-in connector specifically engineered for PCB applications This connector features a 508 mm pin spacing with 7 poles arranged in a convenient 180° layout It utilizes a reliable PUSH IN connection mechanism, complete with an actuator for ease of use With a maximum clamping range of 331 mm², this connector is also compliant with RoHS standards, ensuring it meets environmental regulations.

Perfect for reliable and efficient circuit connections in various electronic projects.

Features and Benefits:

    •Designed for field connection with a compact 180° conductor outlet direction.

    •Can be coded to ensure correct connection.

    •Touch-safe protection according to relevant standards.

    •Easy wire connection method with PUSH IN actuator.

Specifications:

 Rated Voltage IEC 400 V
 Rated Current IEC 24 A
 Rated Cross-section 2.5 mm²
 Wire Connection Method PUSH IN with actuator
 Depth 27.7 mm
 Height 14.2 mm
 Width 45.36 mm
 Protection Degree IP20
 Operating Temperature Min -50 °C
 Operating Temperature Max 100 °C
 Insulating Material PBT
 Colour black
 Net Weight 13.89 g
 Stripping Length 10 mm
