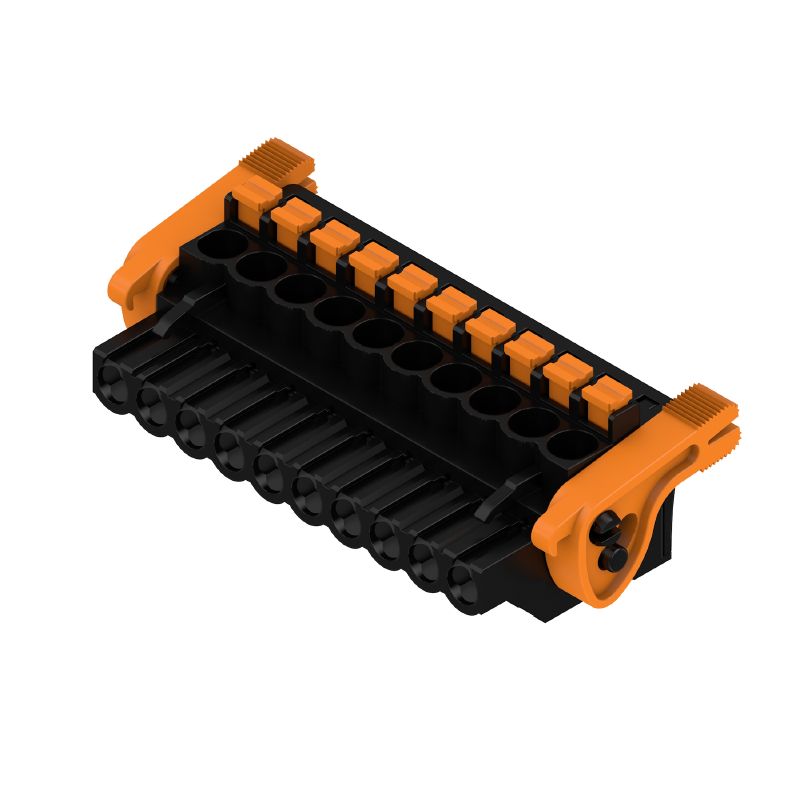

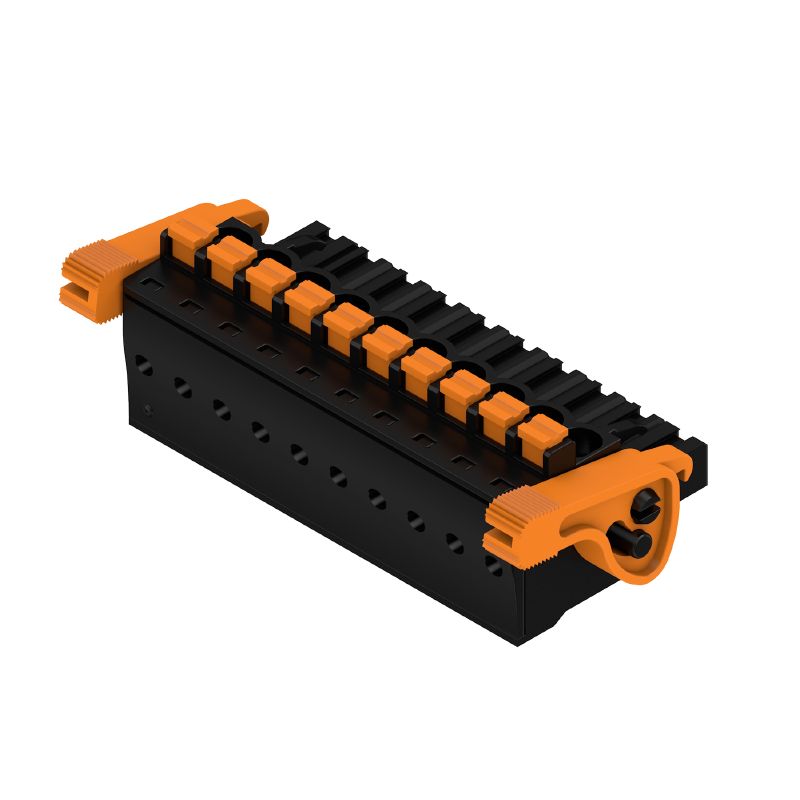

1000490001 - 10-Pole 5.08mm Female PCB Connector, 90° Push-In Design (Pack of 30)

1000490001 - 10-Pole 5.08mm Female PCB Connector, 90° Push-In Design (Pack of 30)

SKU: SKU: 1000490001   Download PDF

Select a Variant:
  • 1000490001 - 10-Pole 5.08mm Female PCB Connector, 90° Push-In Design (Pack of 30)
Qty:
Regular price Now $217.46   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $217.46 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable PCB plug-in connector, equipped with a female plug and a 508 mm pitch, featuring 10 poles for seamless connectivity This connector is engineered for a 90° connection and employs a PUSH IN mechanism with an actuator, allowing it to handle a clamping capacity of up to 331 mm² The product comes neatly packaged in a box for your convenience.

Features and Benefits:

    •RoHS compliant without exemption.

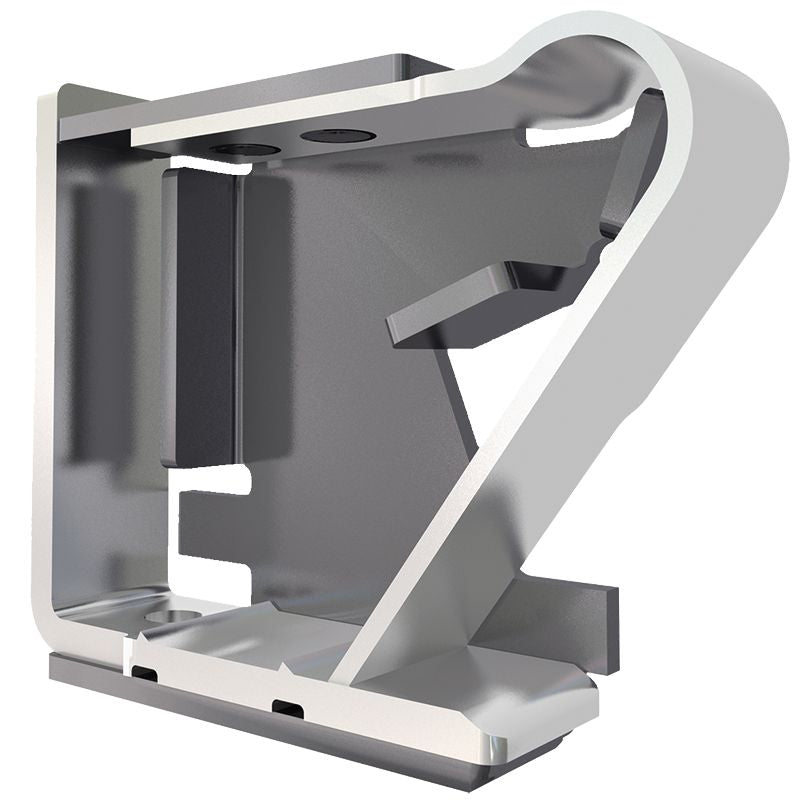

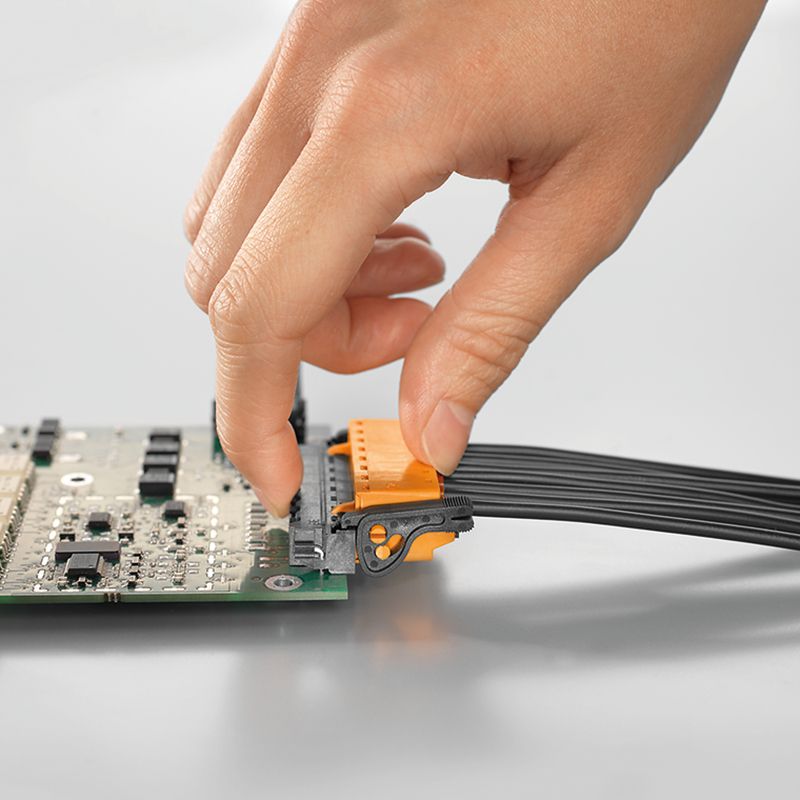

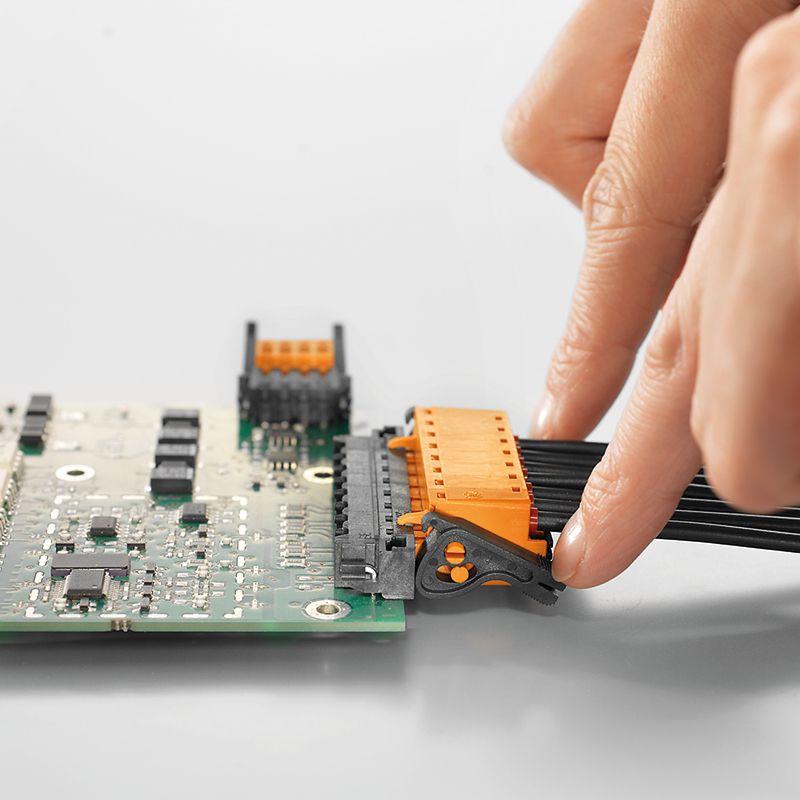

    •Assembly allows for quick wire connections with the PUSH IN actuator.

    •Can be coded for non-interchangeability.

    •Touch-safe protection against finger touch.

    •IP20 protection degree when plugged and IP10 when unplugged.

Specifications:

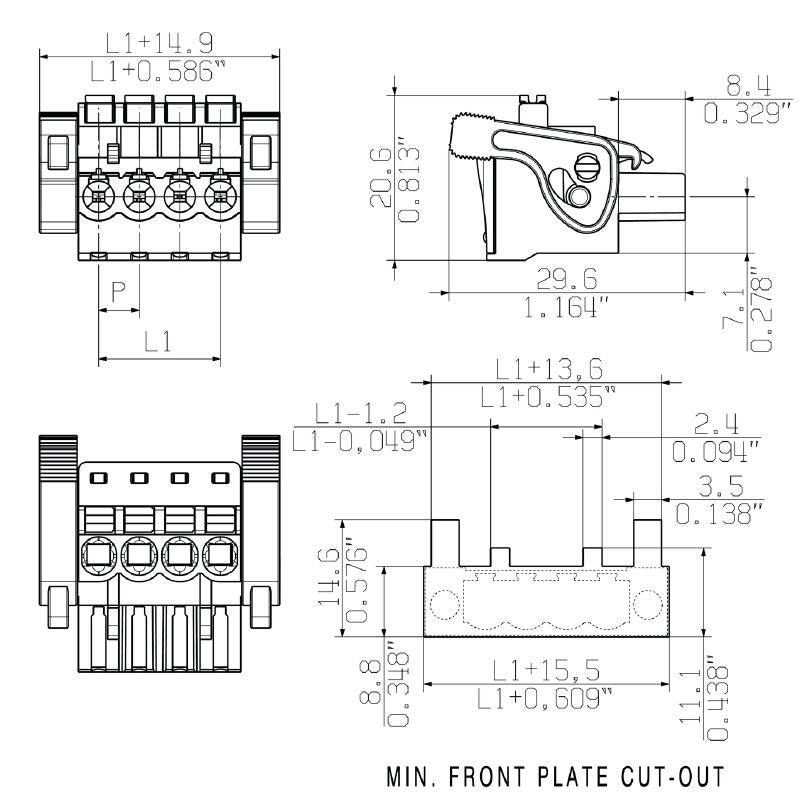

 Depth 29.6 mm
 Height 20.6 mm
 Width 60.62 mm
 Rated Voltage 400 V / 300 V

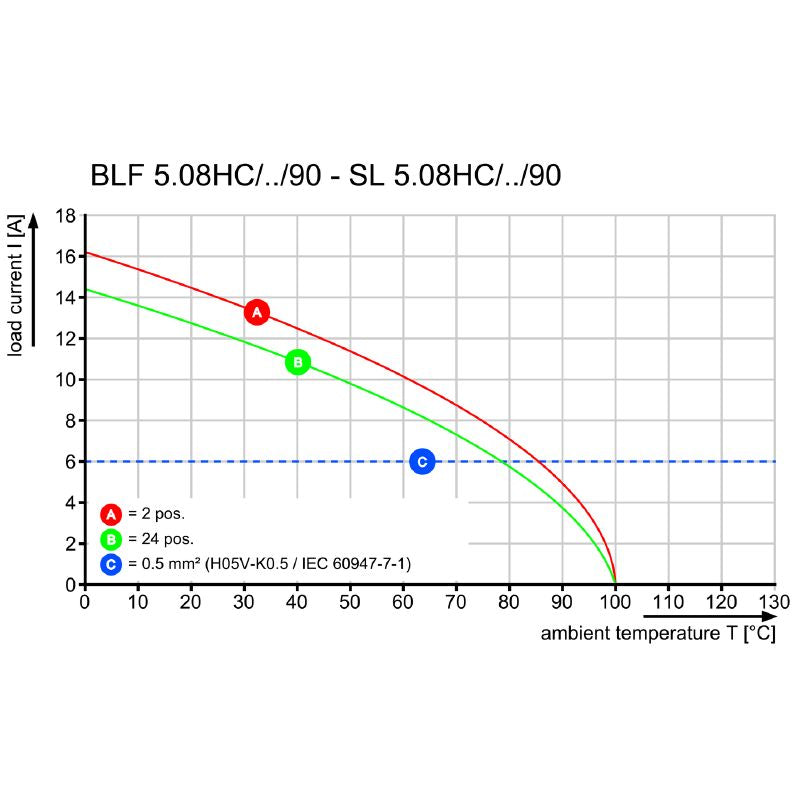

 Rated Current 24 A / 18.5 A
 Clamping Range 0.13 - 3.31 mm²
 Temperature Range (Operating) -50 to 100 °C
 Insulating Material PBT
 Color black
 Storage Temperature -40 to 70 °C
 Pitch 5.08 mm
 Number of Poles 10
 Plugging Cycles 25
 Volume Resistance ≤5 mΩ
