Description:
Slim Type with more Practicability and Convenience

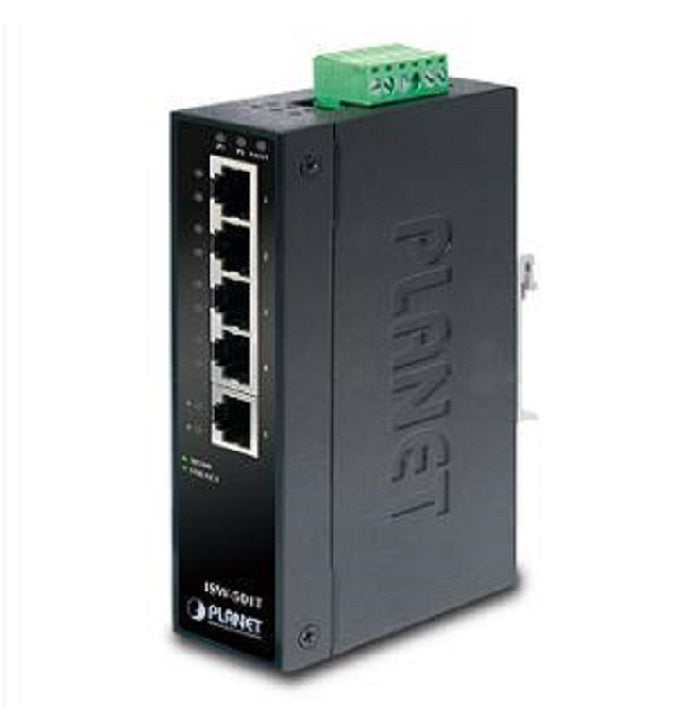

PLANET ISW-501T, an Industrial 5-port Fast Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 5-port 10/100BASE-TX RJ45 copper interfaces delivered in an IP30 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.
Energy Saving with Lower Power Consumption
The ISW-501T, adopting the advanced green networking technology, provides the IEEE 802.3az protocol based power saving. This feature makes the ISW-501T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
Stable Performance under Difficult Environments
The ISW-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-501T can be placed in almost any difficult environment. The ISW-501T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.
Applications:
The ISW-501T’s IP30-rated metal case is particularly designed for the most heavy industrial demanding environments, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.
Features:
Physical Port:
Layer 2 Features:
Industrial Case & Installation:
Slim Type with more Practicability and Convenience
PLANET ISW-501T, an Industrial 5-port Fast Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 5-port 10/100BASE-TX RJ45 copper interfaces delivered in an IP30 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.
Energy Saving with Lower Power Consumption
The ISW-501T, adopting the advanced green networking technology, provides the IEEE 802.3az protocol based power saving. This feature makes the ISW-501T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
Stable Performance under Difficult Environments
The ISW-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-501T can be placed in almost any difficult environment. The ISW-501T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.
Applications:
The ISW-501T’s IP30-rated metal case is particularly designed for the most heavy industrial demanding environments, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.
Features:
Physical Port:
- 5-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
Layer 2 Features:
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex mode
- High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Backplane (switching fabric): 1Gbps
- Integrated address look-up engine, supporting 1K absolute MAC addresses
- Automatic address learning and address aging
Industrial Case & Installation:
- IP30-rated metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protection function and connective removable terminal block for master and slave power, 24V AC power support
- Lower Power Consumption device in full load operation mode
- Supports EFT protection for 6000 VDC for power line
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
