Description:

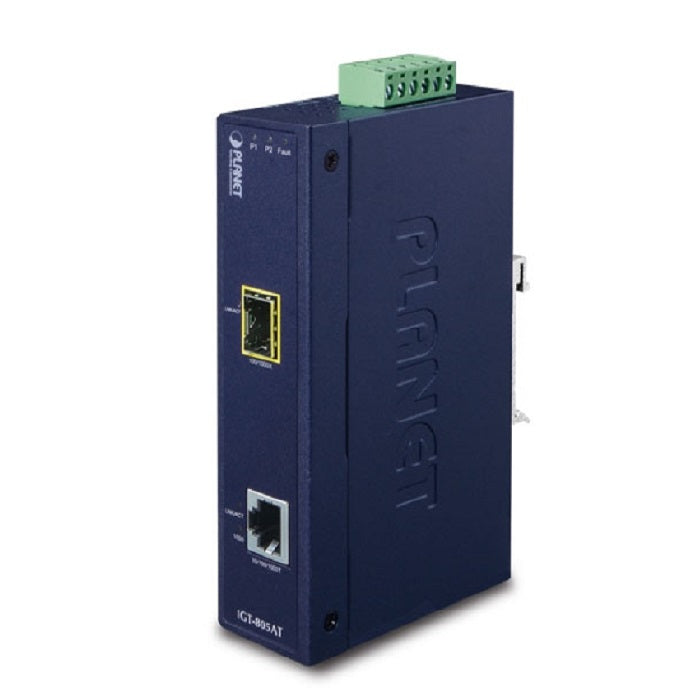

IP30 Industrial 10/100/1000T to 100/1000X SFP Gigabit Media Converter (-40 to 75 degree C).
Features:
Physical Port:
IP30 Industrial 10/100/1000T to 100/1000X SFP Gigabit Media Converter (-40 to 75 degree C).
Features:
Physical Port:
- 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
- 1 SFP interface, 100/1000BASE-X dual mode (auto detection)
- IEEE 802.3 / 802.3u / 802.3ab / 802.3z Ethernet standard compliant
- Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- 9K jumbo frame size support
- LFP function support
- Automatic address learning and address aging
- Slim-type IP30 metal case
- DIN rail and wall-mount design
- Redundant power design
- - 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptable
- Supports EFT protection for 6000 VDC for power line
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
