Description:

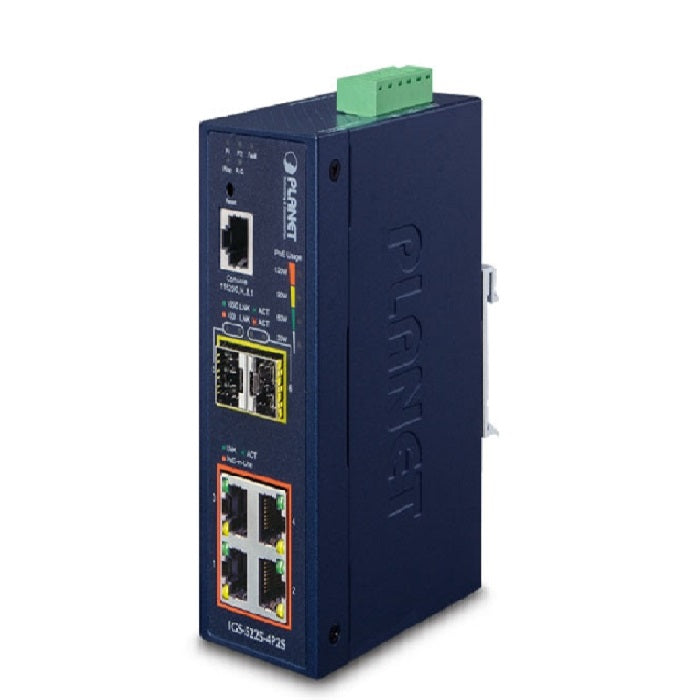

IP40 Industrial L2+/L4 4-Port 1000T 802.3at PoE + 2-Port 100/1000X SFP Full Managed Switch (-40 to 75 C, dual redundant power input on 48~56VDC terminal block, ERPS Ring, 1588, Modbus TCP, ONVIF, Cybersecurity features).
Features:
Physical Port
Power over Ethernet
Industrial Protocol
Industrial Case and Installation
IP40 Industrial L2+/L4 4-Port 1000T 802.3at PoE + 2-Port 100/1000X SFP Full Managed Switch (-40 to 75 C, dual redundant power input on 48~56VDC terminal block, ERPS Ring, 1588, Modbus TCP, ONVIF, Cybersecurity features).
Features:
Physical Port
- 4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
- 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
- One RJ45 console interface for basic management and setup
Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
- Up to 4 IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- PoE management features
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE admin-mode control
- PoE port power feeding priority
- Per PoE port power limit
- PD classification detection
- Intelligent PoE features
- Temperature threshold control
- PoE usage threshold control
- PD alive check
- PoE schedule
Industrial Protocol
- Modbus TCP for real-time monitoring in a SCADA system
- IEEE 1588v2 PTP (Precision Time Protocol)
Industrial Case and Installation
- IP40 metal case
- DIN-rail and wall-mount designs
- 48~56V DC, redundant power with polarity reverse protect function
- Supports 6000V DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
