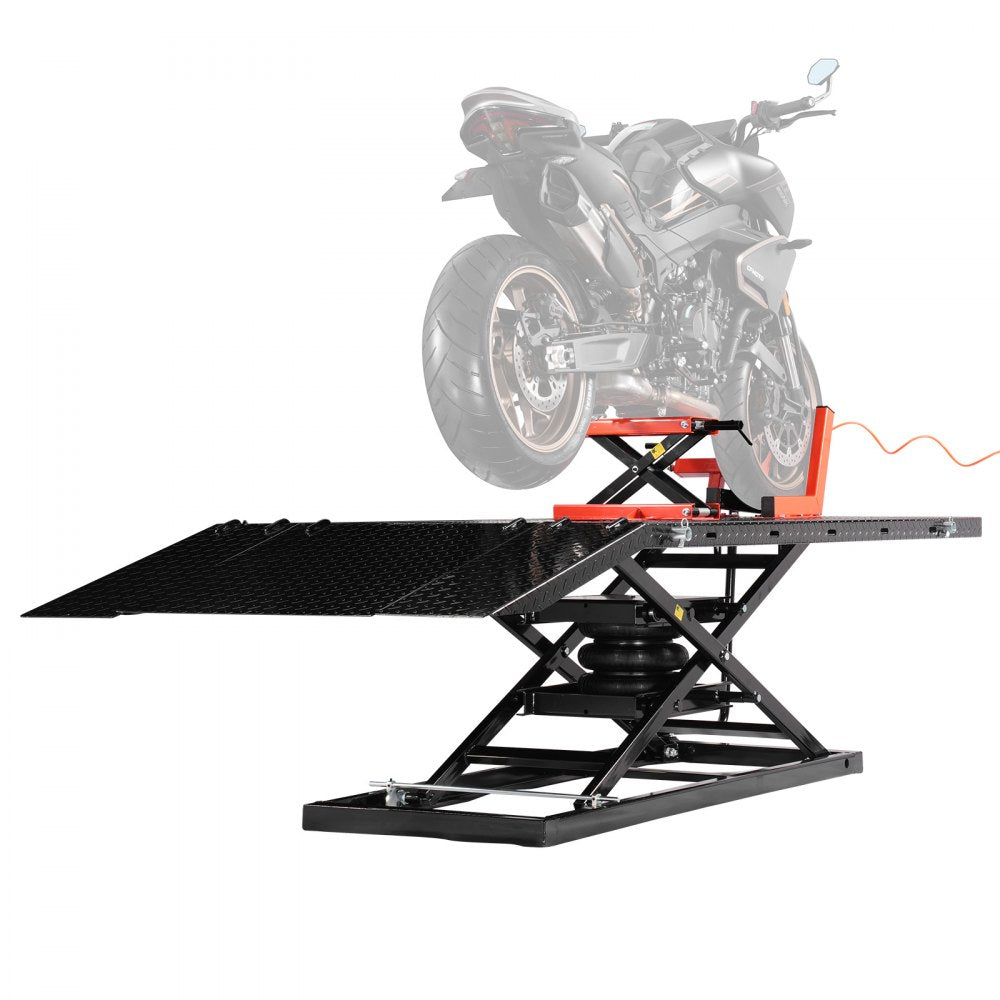

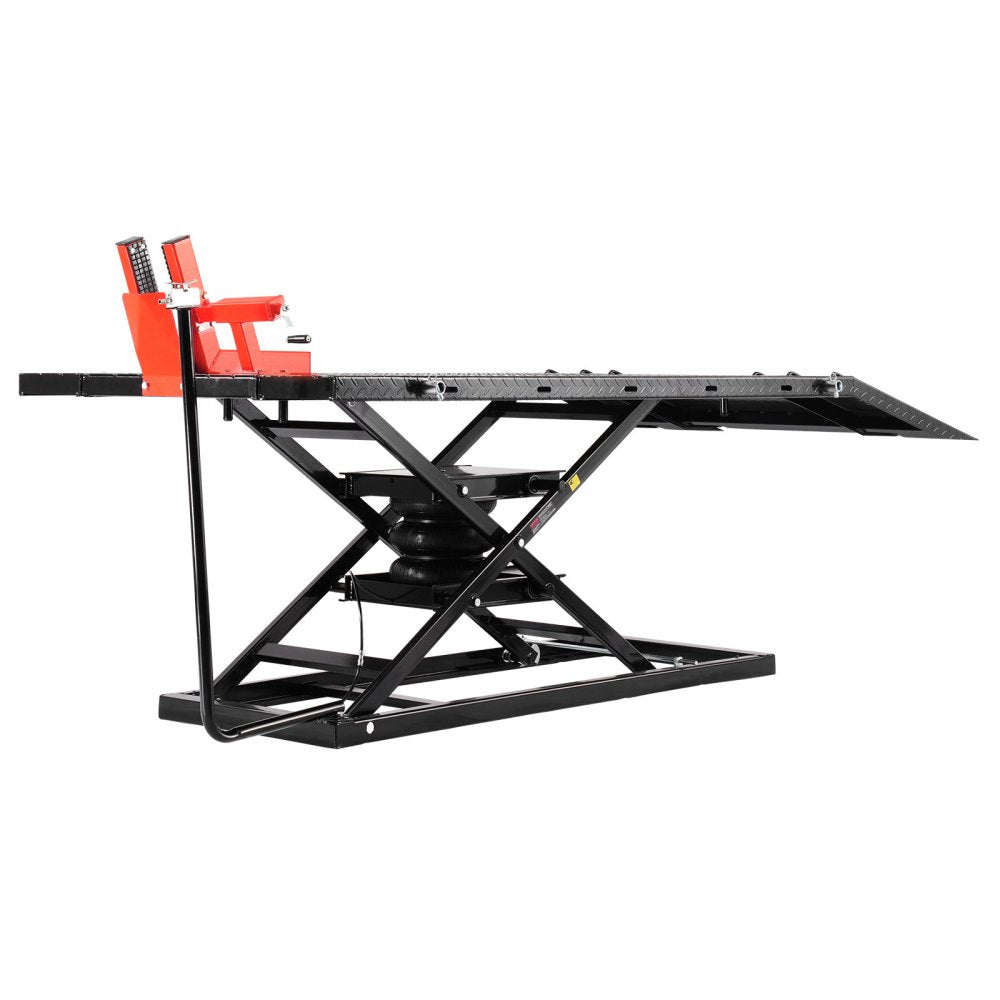

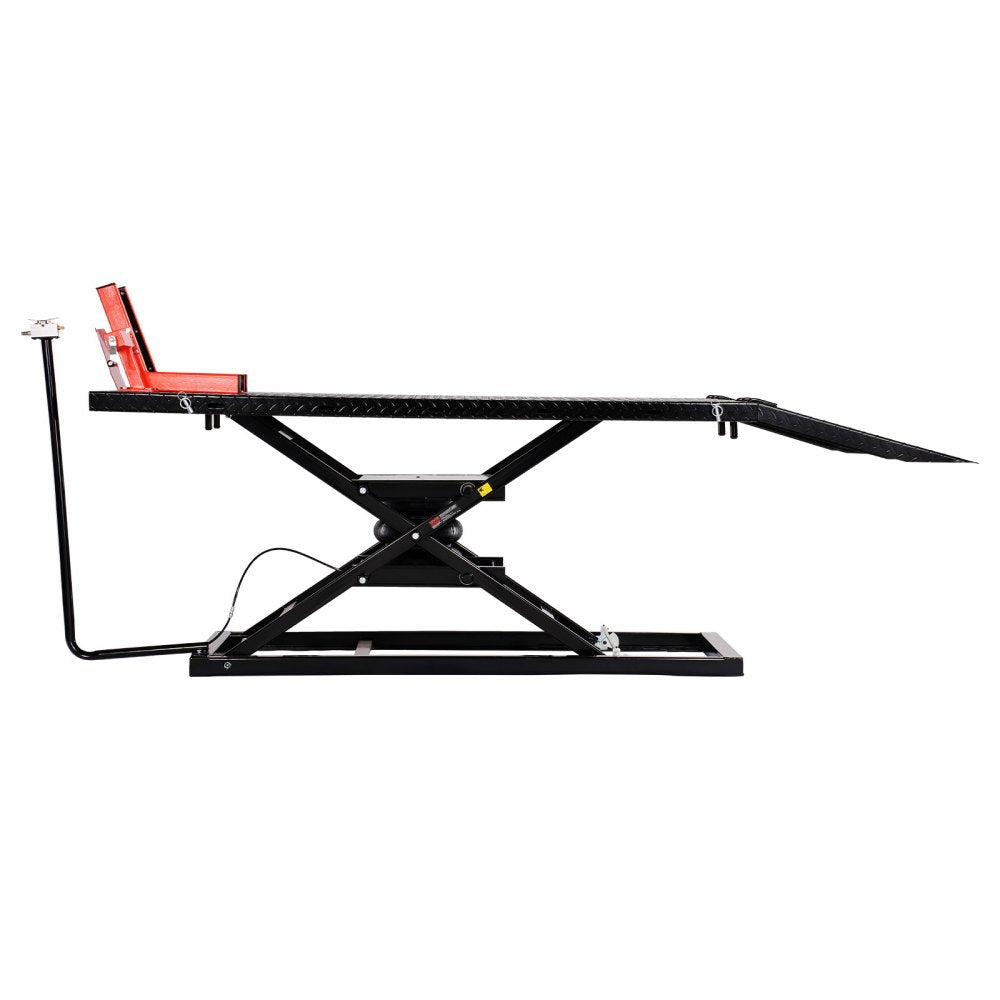

JL-M03804 - Adjustable Motorcycle Lift with Security Pin, 1500lb Capacity

JL-M03804 - Adjustable Motorcycle Lift with Security Pin, 1500lb Capacity

SKU: SKU: JL-M03804

Variant:
  • JL-M03804 - Adjustable Motorcycle Lift with Security Pin, 1500lb Capacity
Regular price Now $1,807.33
Regular price BEFORE   $0.00 Sale price Now $1,807.33
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

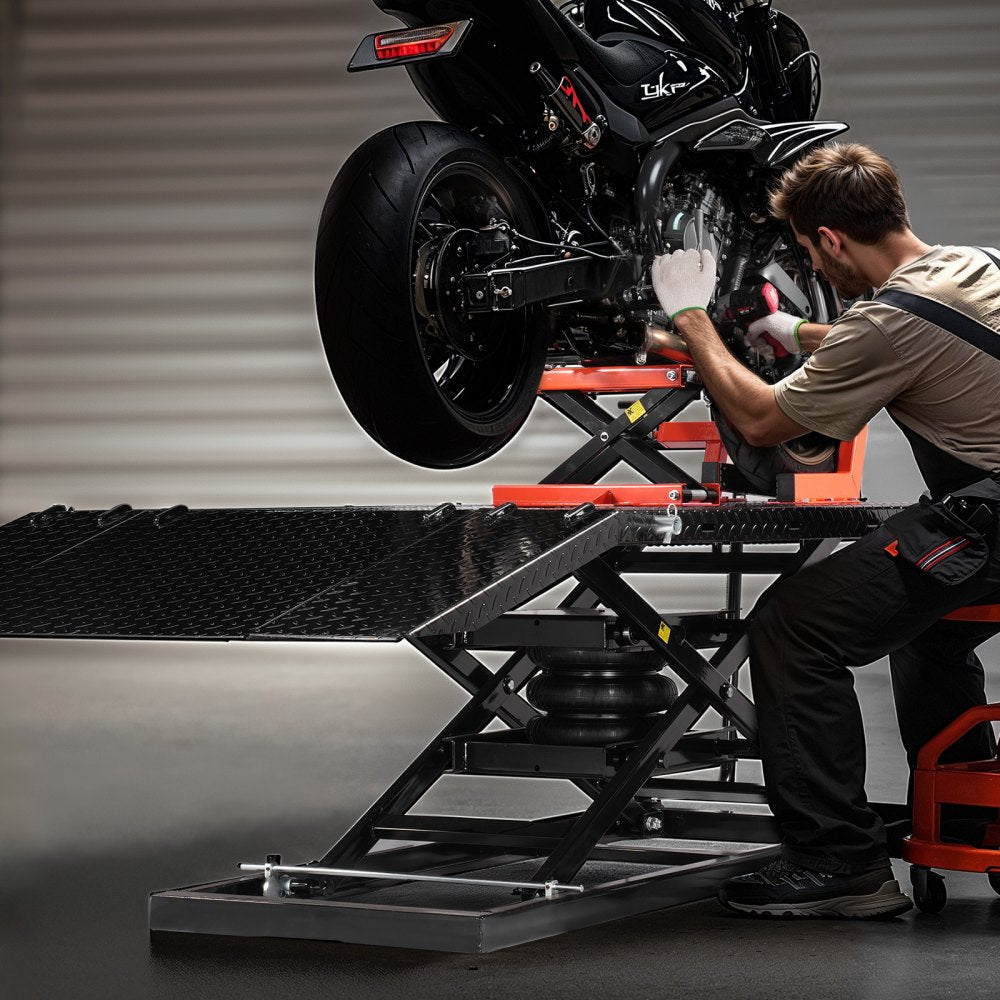

Elevate your motorcycle maintenance with this versatile lift, designed to accommodate a variety of motorcycle models With a robust load capacity, it effortlessly raises heavier bikes, ensuring optimal stability during use The adjustable height feature allows for tailored operation, while the included security pin lock guarantees that your selected height remains securely in place for professional-grade maintenance.

Features and Benefits:

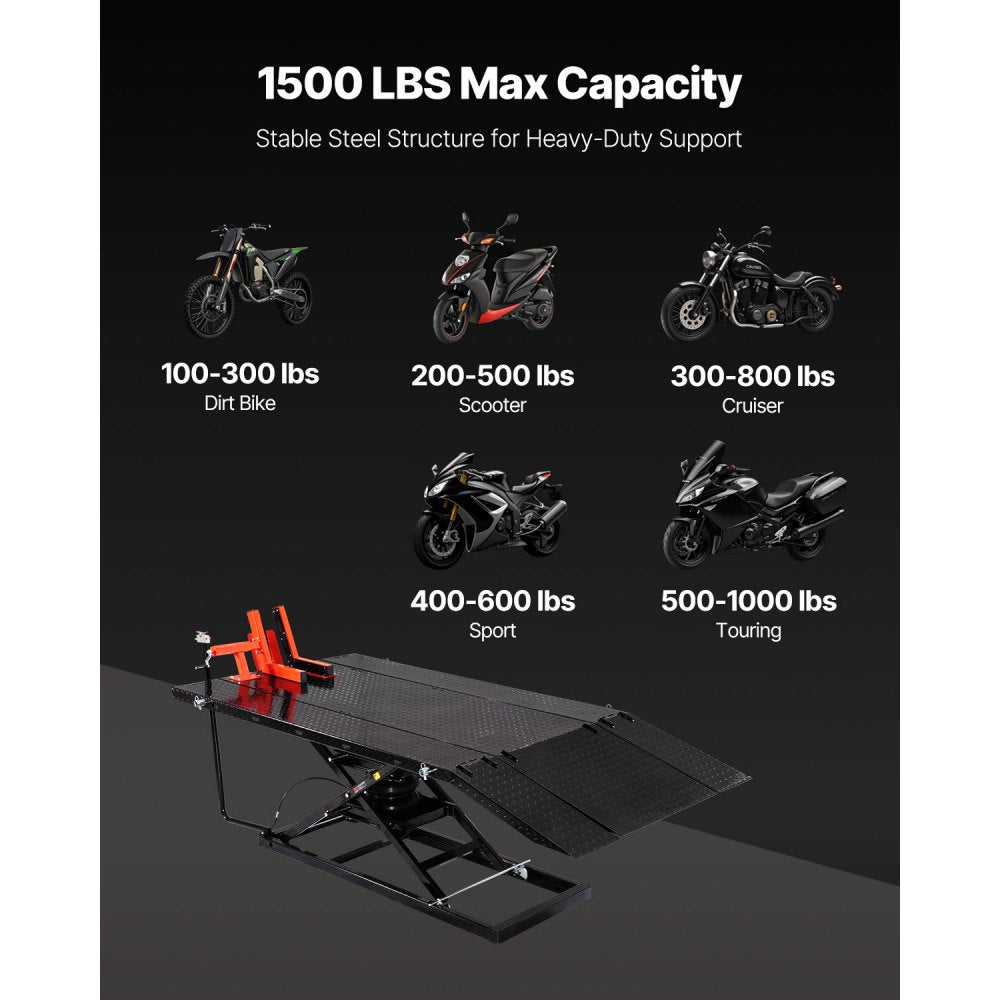

    •1500 lbs Weight Capacity: This pneumatic motorcycle lift platform has a maximum load capacity of 1500 lbs, making it capable of lifting most standard motorcycles, touring bikes, cruisers, and more..

    •Pneumatic Lifting: Equipped with a high-quality pneumatic pump, the motorcycle lift jack with foot pedal easily lifts the bike, saving effort and reducing resistance..

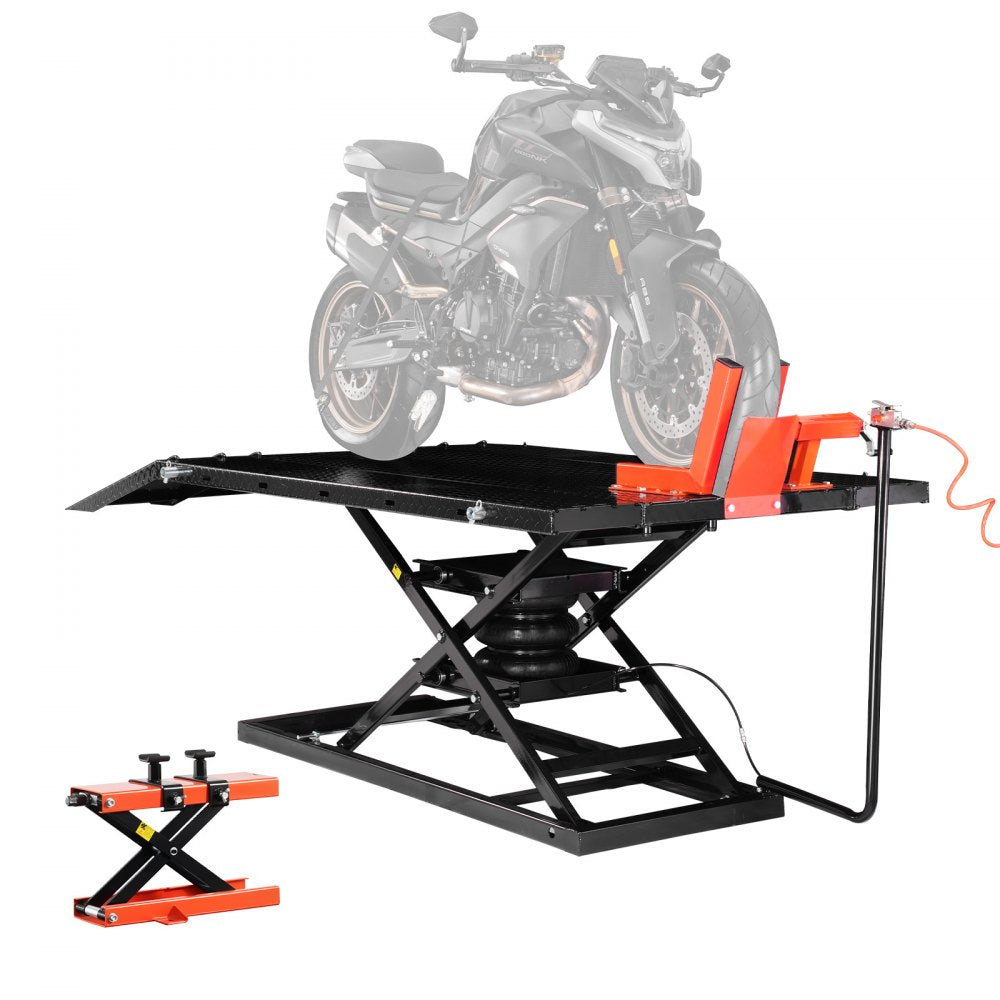

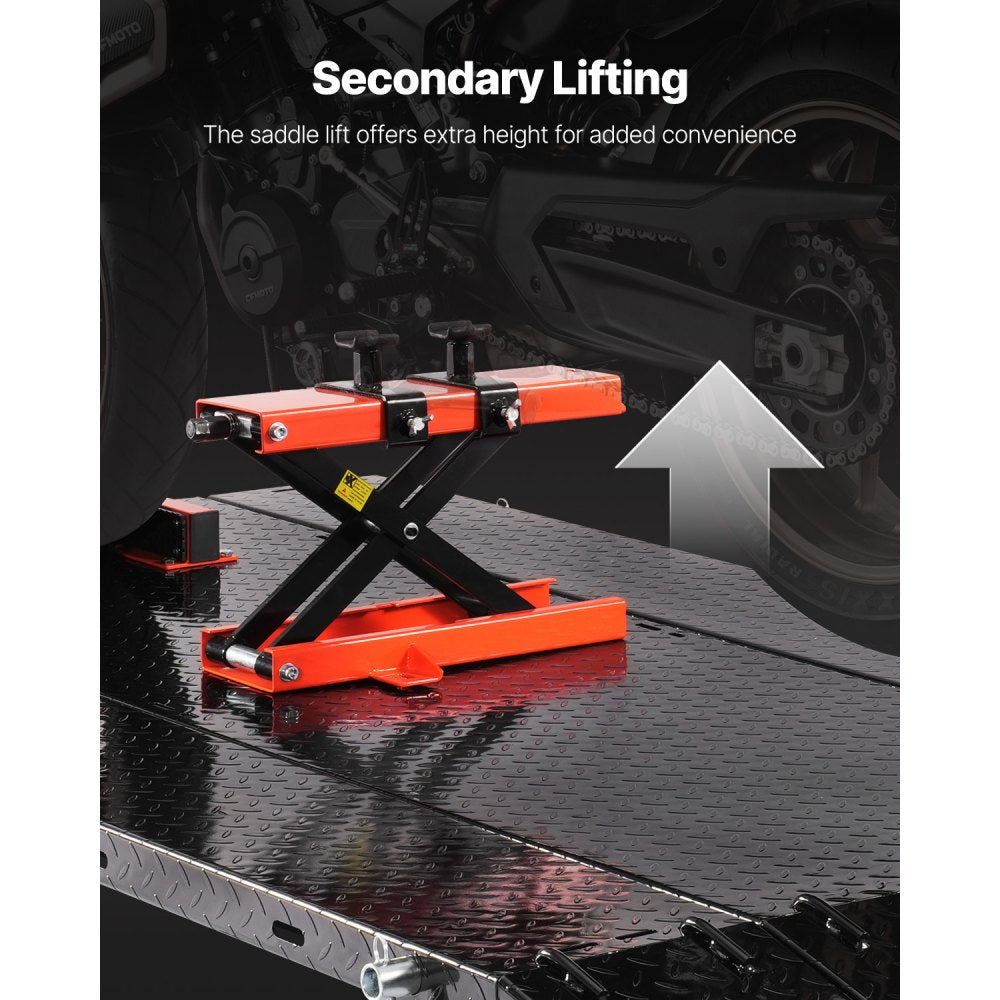

    •Height Range: With an extensive height adjustment range of 7 to 37 inches (177.8 - 940.2 mm), this lift includes a central jack to provide additional height, making it ideal for professional repair shops..

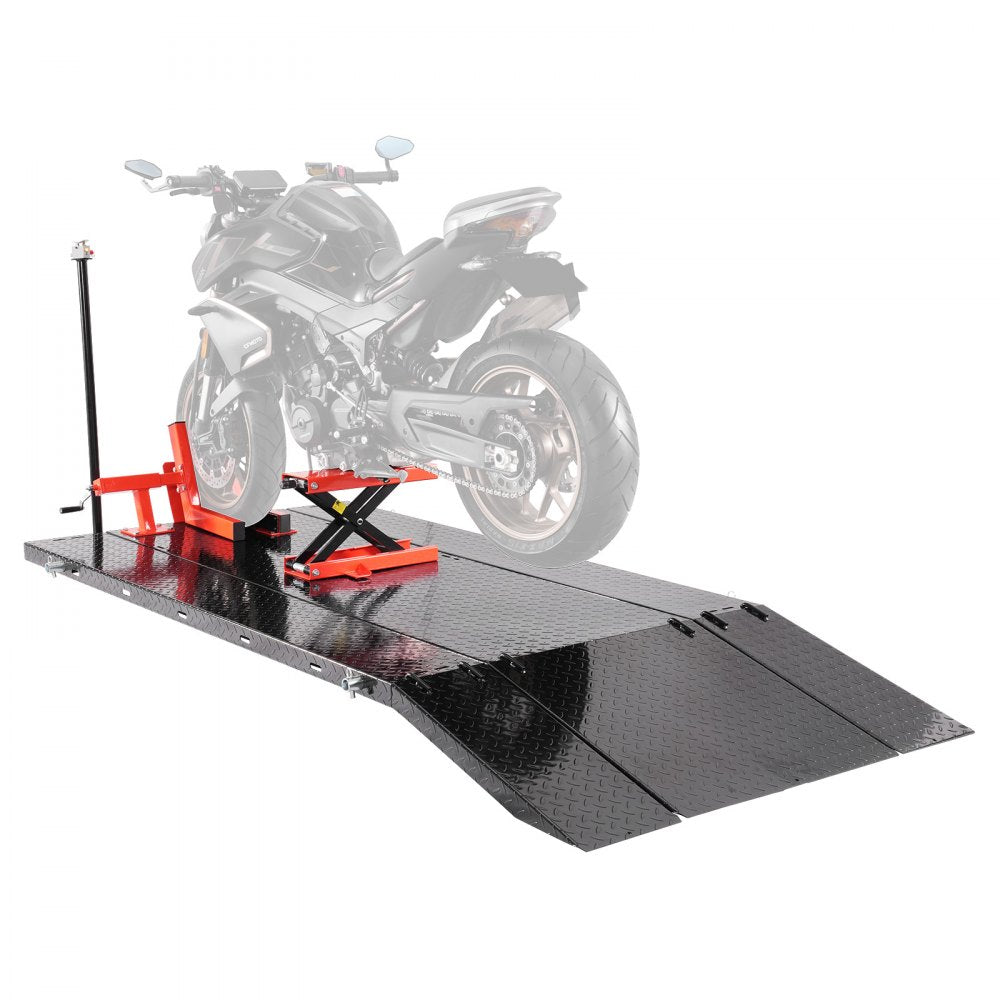

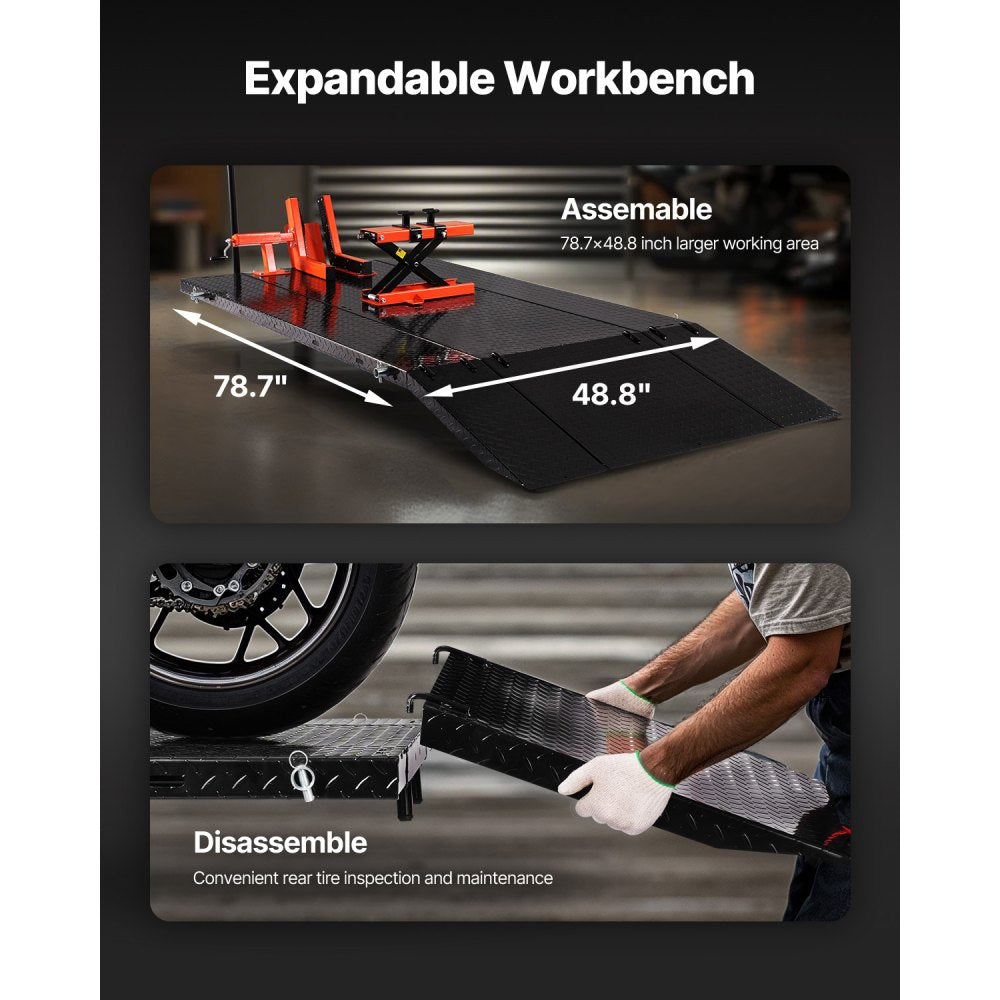

    •Removable Workbench: The ramp is divided into three sections, which can be easily disassembled and assembled for easy loading of motorcycles onto the platform..

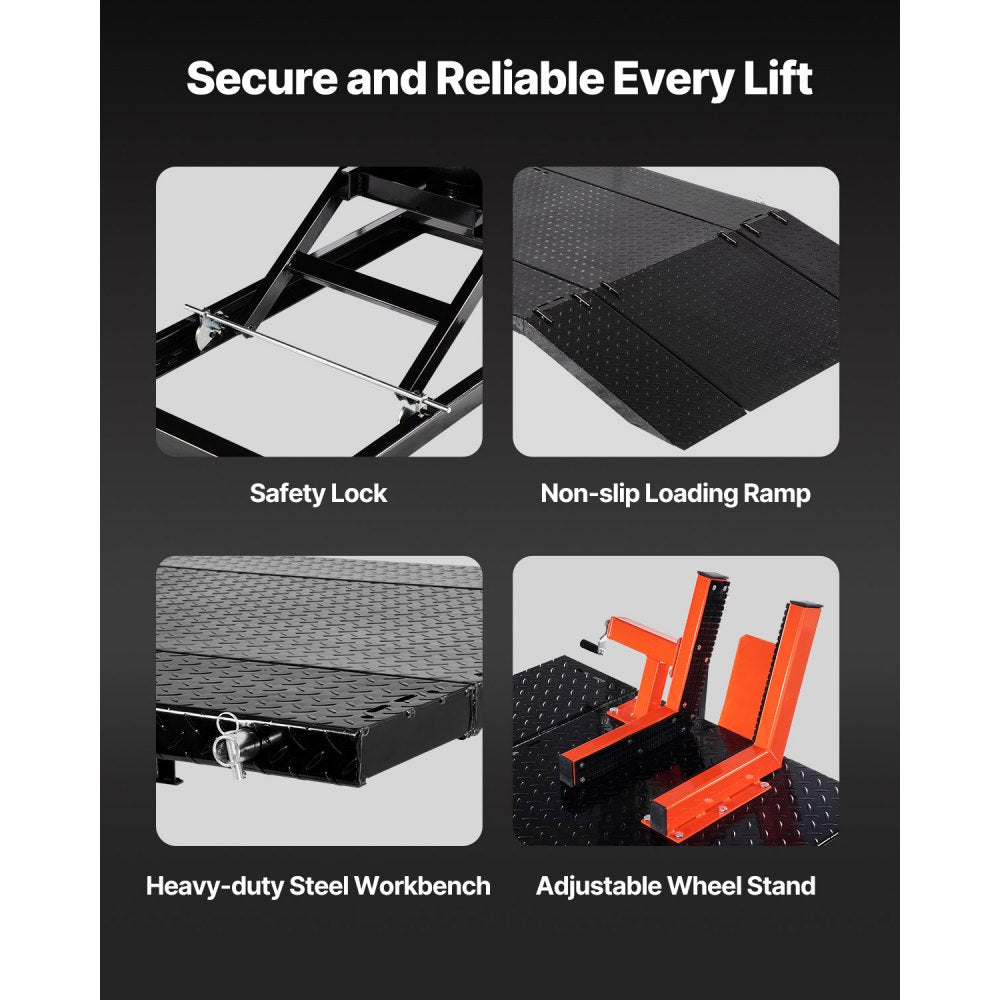

    •Secure Fixing: The adjustable wheel chock fits tires of different diameters and includes a security pin to prevent accidental lowering..

Specifications:

 Item Model Number JL-M03804
 Load Capacity 1500 lbs
 Workbench Dimensions (L x H) 78.7 x 48 inches / 2000 x 1220 mm
 Thickness 0.1 inch / 2.5 mm
 Minimum Lifting Height 7 inches / 177.8 mm
 Maximum Lifting Height 37 inches / 940.2 mm
 Lifting Type Pneumatic
 Surface Treatment Powder Coating
 Pressure Range 1.6 MPa
 Airbag Model 300H-3
 Airbag Material Rubber
 Thrust 3t
 Center Jack Load 1100 lbs
 Center Jack Material Q235B
 Dimensions 17.7 x 5.9 x (3.5-16.5) inches / 450 x 150 x (90-420) mm
 Net Weight 560 lbs / 254kg

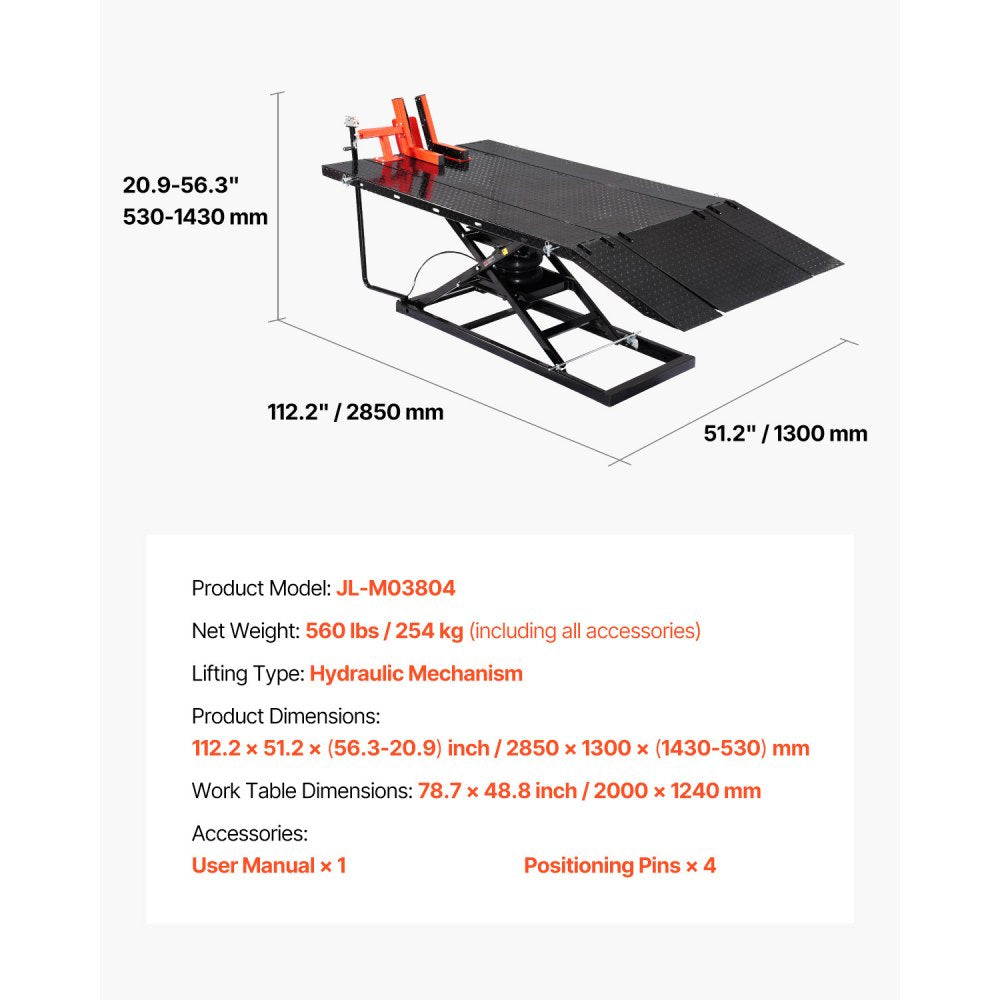

 Product Dimensions 112.2 × 51.2× (56.3-20.9) inch / 2850 × 1300× (1430-530) mm
