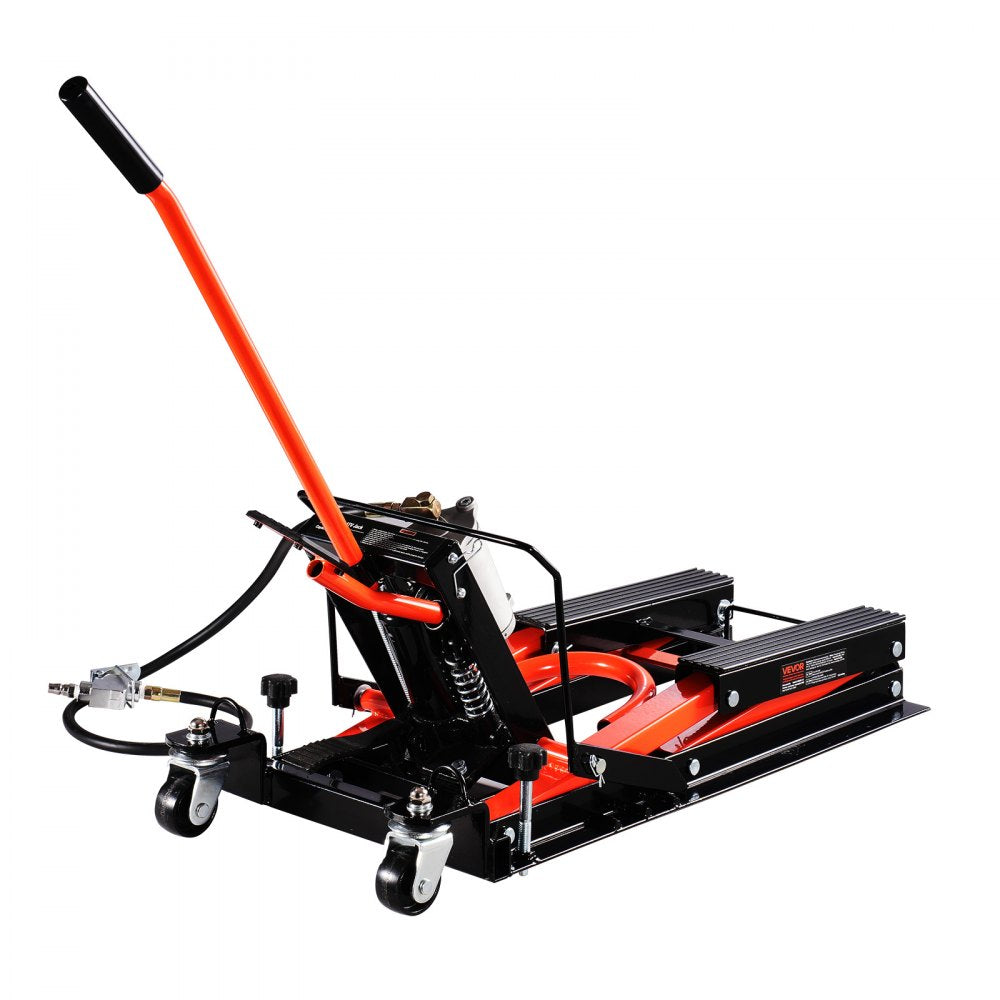

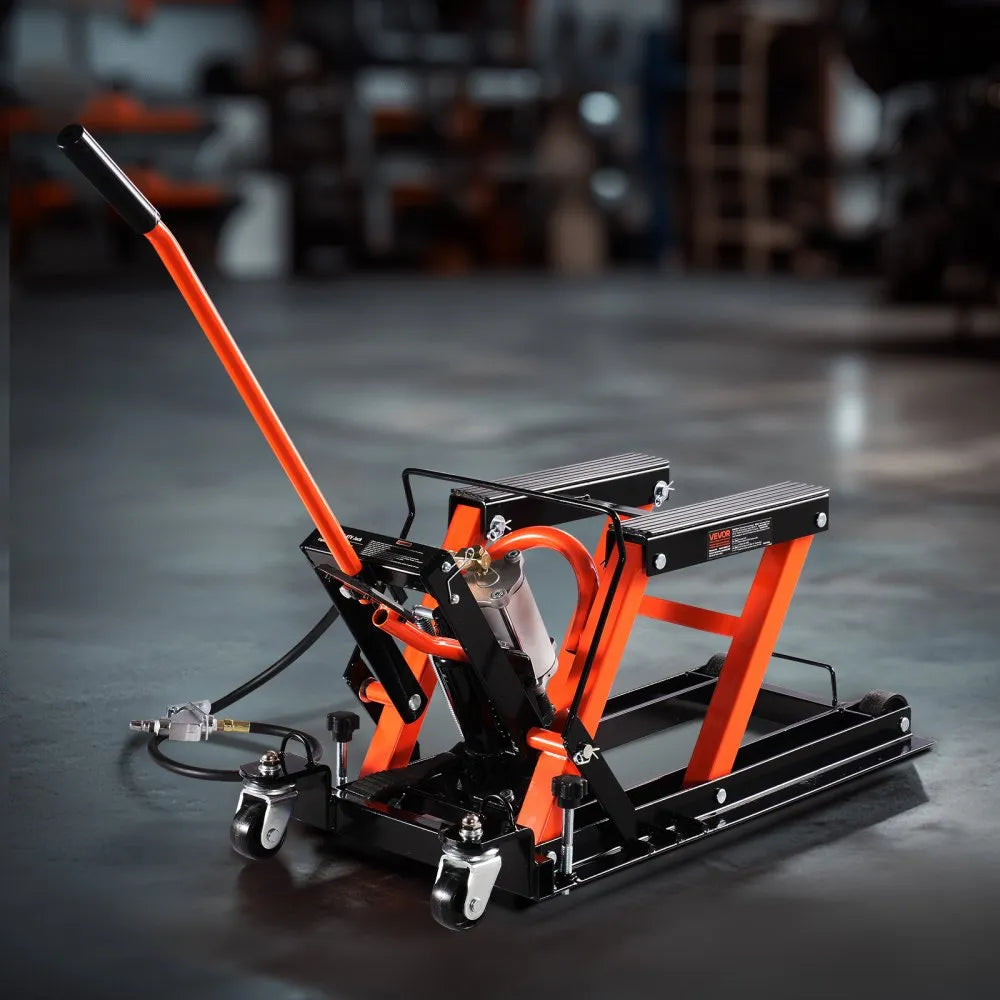

JL-M02304 - 1500 lb Motorcycle Lift with Dual Hydraulic System and Swivel Casters

JL-M02304 - 1500 lb Motorcycle Lift with Dual Hydraulic System and Swivel Casters

SKU: SKU: JL-M02304

Variant:
  • JL-M02304 - 1500 lb Motorcycle Lift with Dual Hydraulic System and Swivel Casters
Regular price Now $207.73
Regular price BEFORE   $0.00 Sale price Now $207.73
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

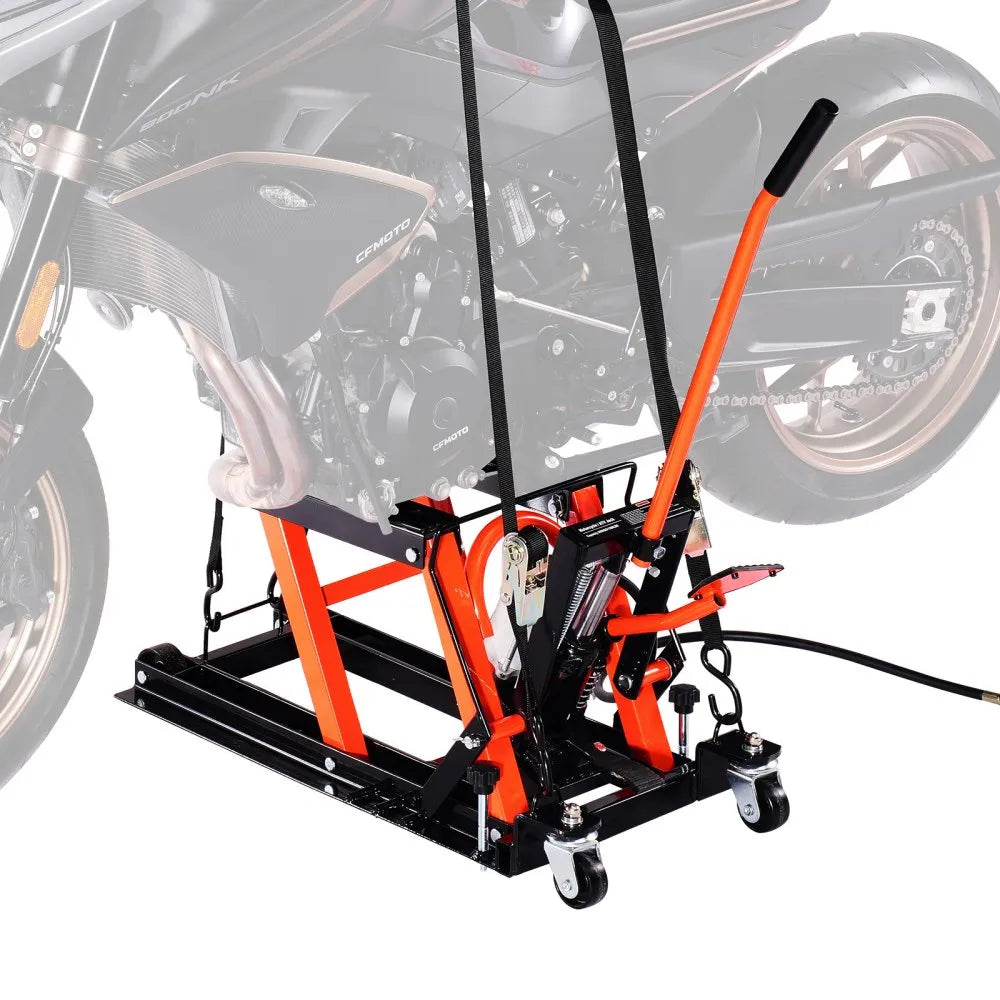

Elevate your motorcycle maintenance experience with this advanced lift featuring both hydraulic and pneumatic systems for optimal support and swift lifting capabilities with ease Engineered for durability, the oil-resistant hydraulic pump paired with an airtight pneumatic pump ensures reliable operation, handling most standard motorcycles, touring bikes, and cruisers with an impressive maximum load of 1500 lbs.

Offering an adjustable height ranging from 47 to 15 inches (119-381 mm), this lift allows for effortless adjustments and mobility Enhanced with two 360° swivel casters and two directional casters, it guarantees smooth movement and a secure position, complete with a ratchet strap and security pin lock to prevent any accidental drops.

Features and Benefits:

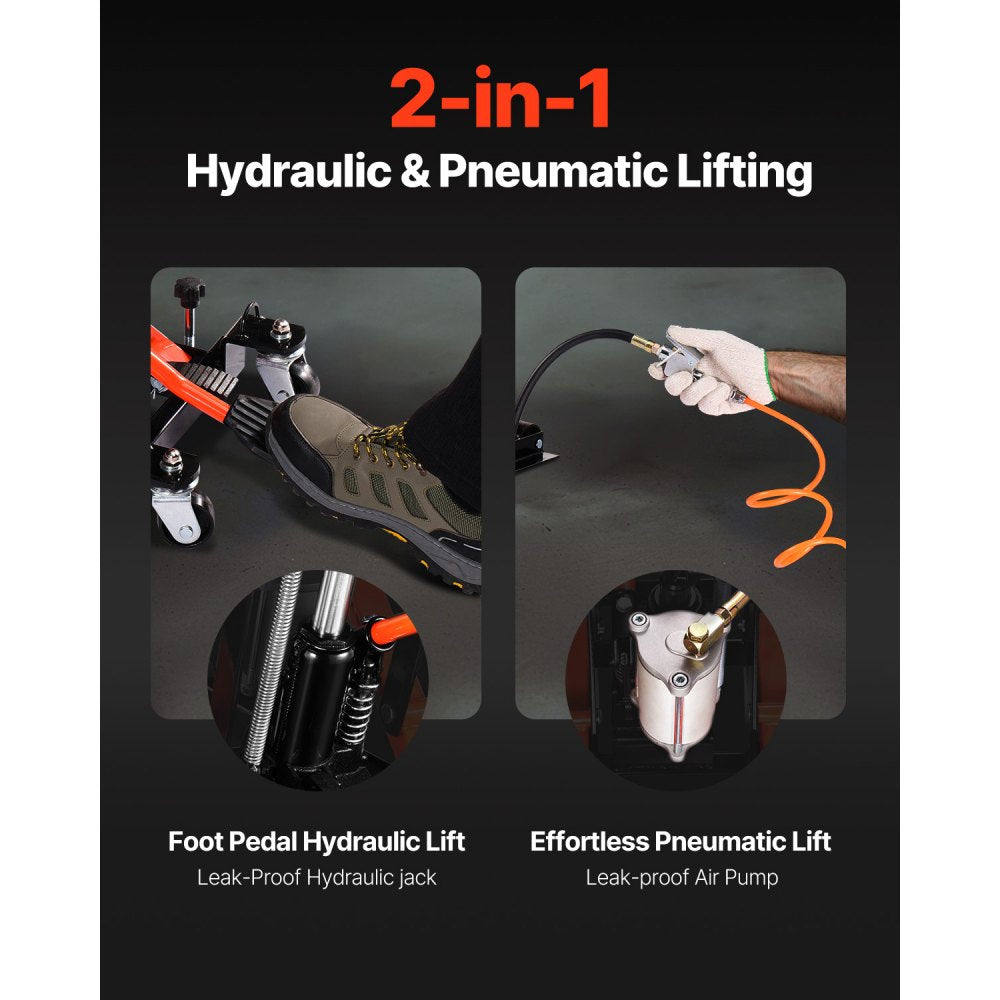

    •Dual Hydraulic & Pneumatic Power for strong support and fast lifting.

    •1500 lbs Weight Capacity for lifting various motorcycle types.

    •Wide height adjustment from 4.7 to 15 inches for convenience.

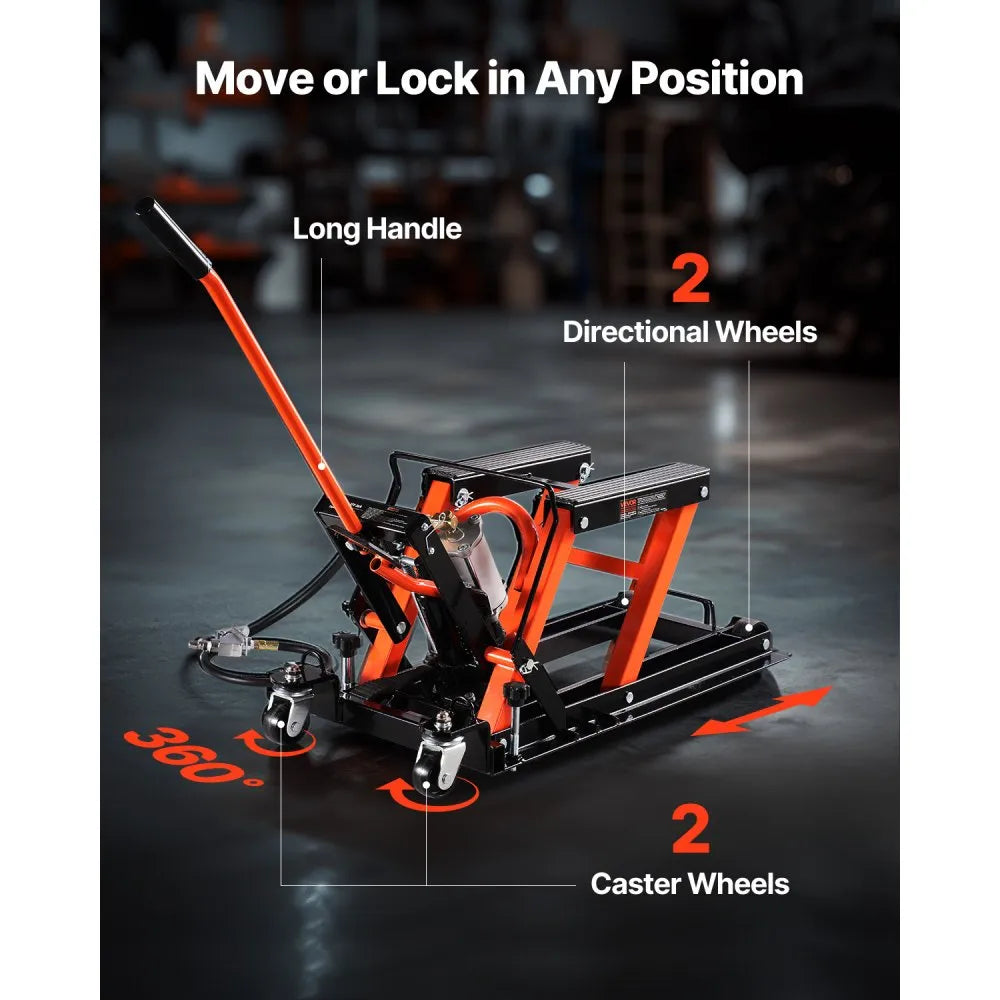

    •360° Flexible Movement for easy transport.

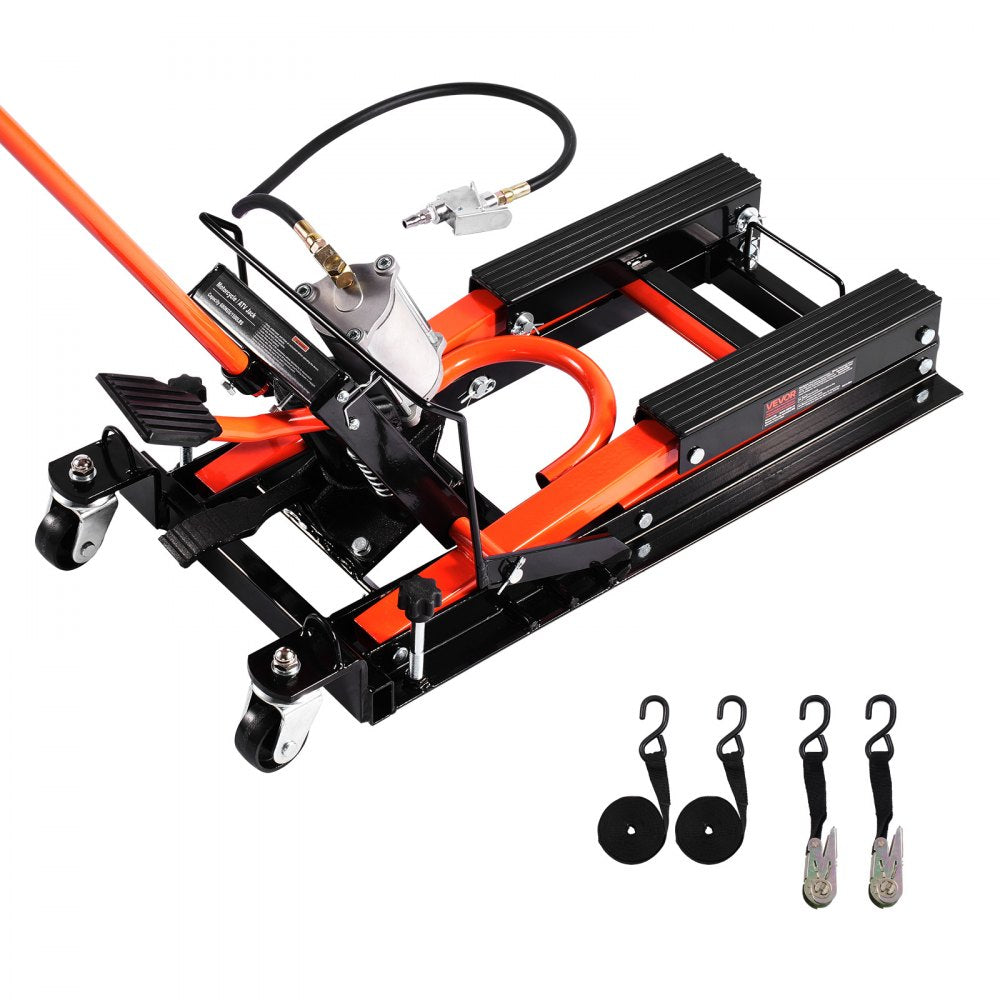

    •Secure Fixing with ratchet strap and anti-slip pads.

Specifications:

 Item Model Number JL-M02304
 Load Capacity 1500 lbs

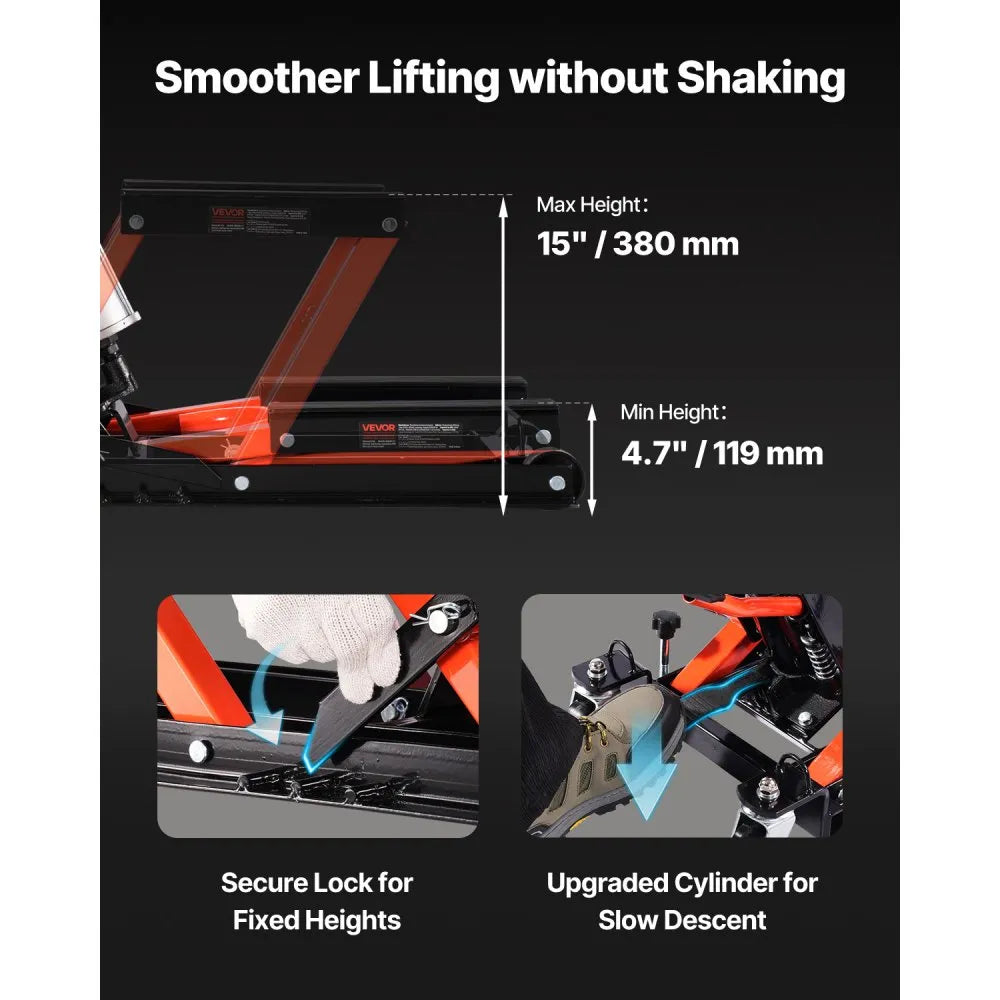

 Minimum Lifting Height 4.7 inches / 119 mm
 Maximum Lifting Height 15 inches / 381 mm
 Lifting Type Pneumatic and Hydraulic
 Surface Treatment Powder Coating
 Swivel Wheels Outer Diameter φ60mm
 Directional Wheels Outer Diameter φ64mm
 Material Cast Iron
 Pressure Range 0.8-2 MPa
 Hydraulic Jack Cylinder Diameter φ60mm
 Hydraulic Jack Material Q235B
 Hydraulic Jack Stroke 100mm
 Hydraulic Jack Thrust 2.5t
 Pneumatic Lifter Cylinder Diameter φ75mm
 Pneumatic Lifter Material 6061 Aluminum
 Pneumatic Lifter Thrust 2.5t
 Air Hose (Outer Diameter φ13mm, Length)

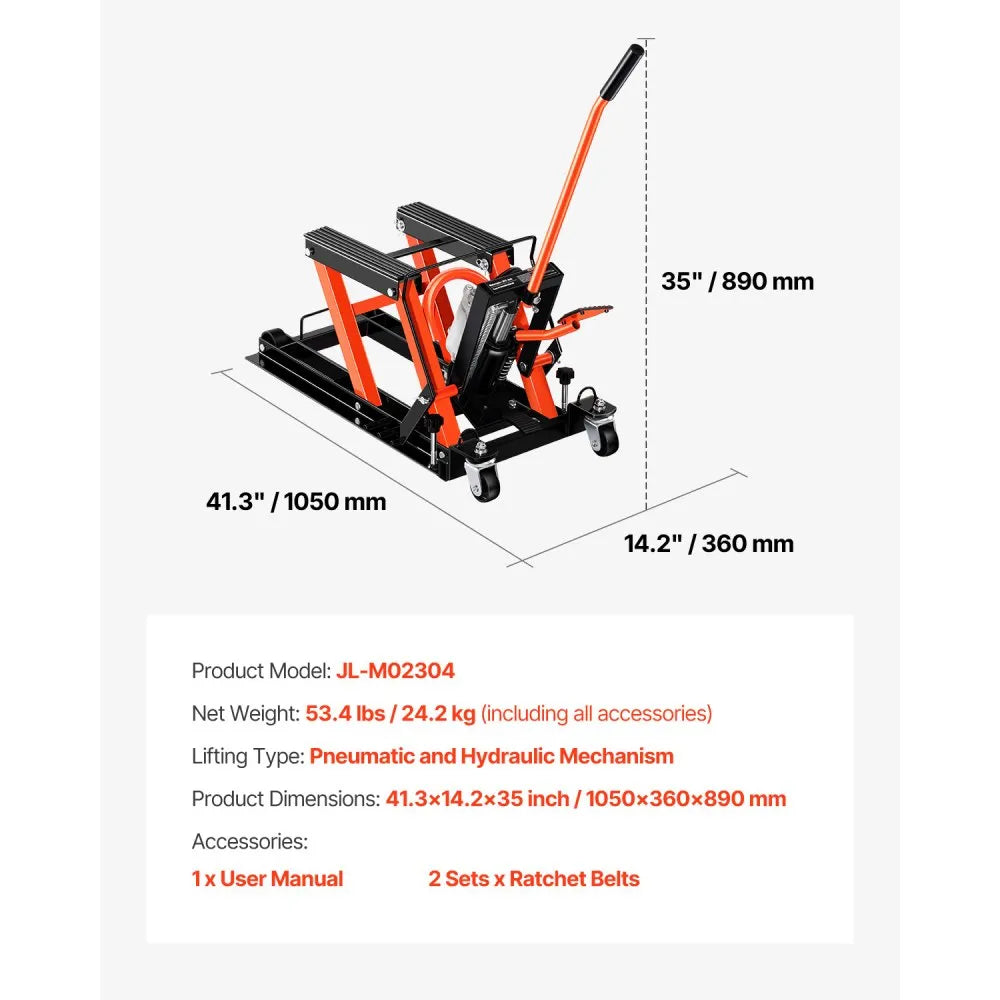

 Product Dimensions 41.3 × 14.2 × 35 inch / 1050 × 360 × 890mm
