JT-19 - 6-Ton Hydraulic Frame Straightener with Adjustable Column and 3m Chain

JT-19 - 6-Ton Hydraulic Frame Straightener with Adjustable Column and 3m Chain

SKU: SKU: JT-19

Select a Variant:
  • JT-19 - 6-Ton Hydraulic Frame Straightener with Adjustable Column and 3m Chain
Qty:
Regular price Now $2,177.59   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $2,177.59 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

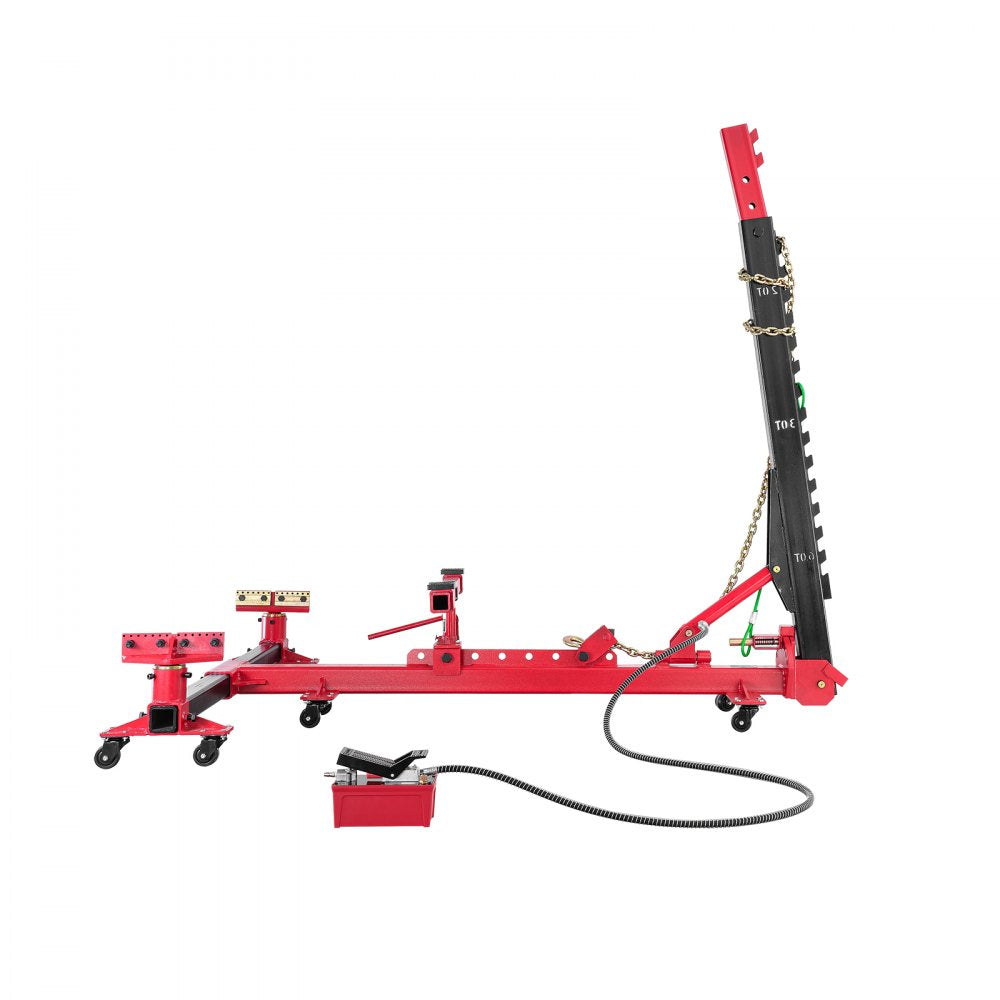

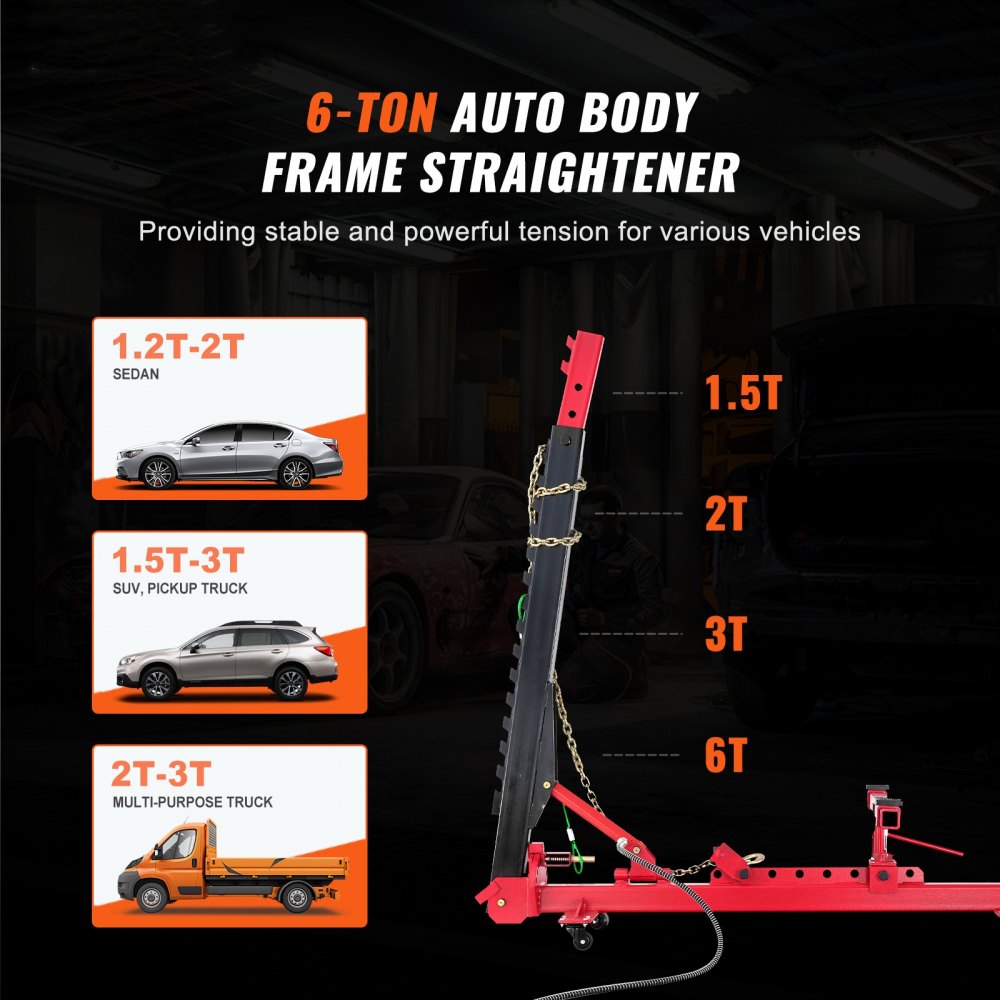

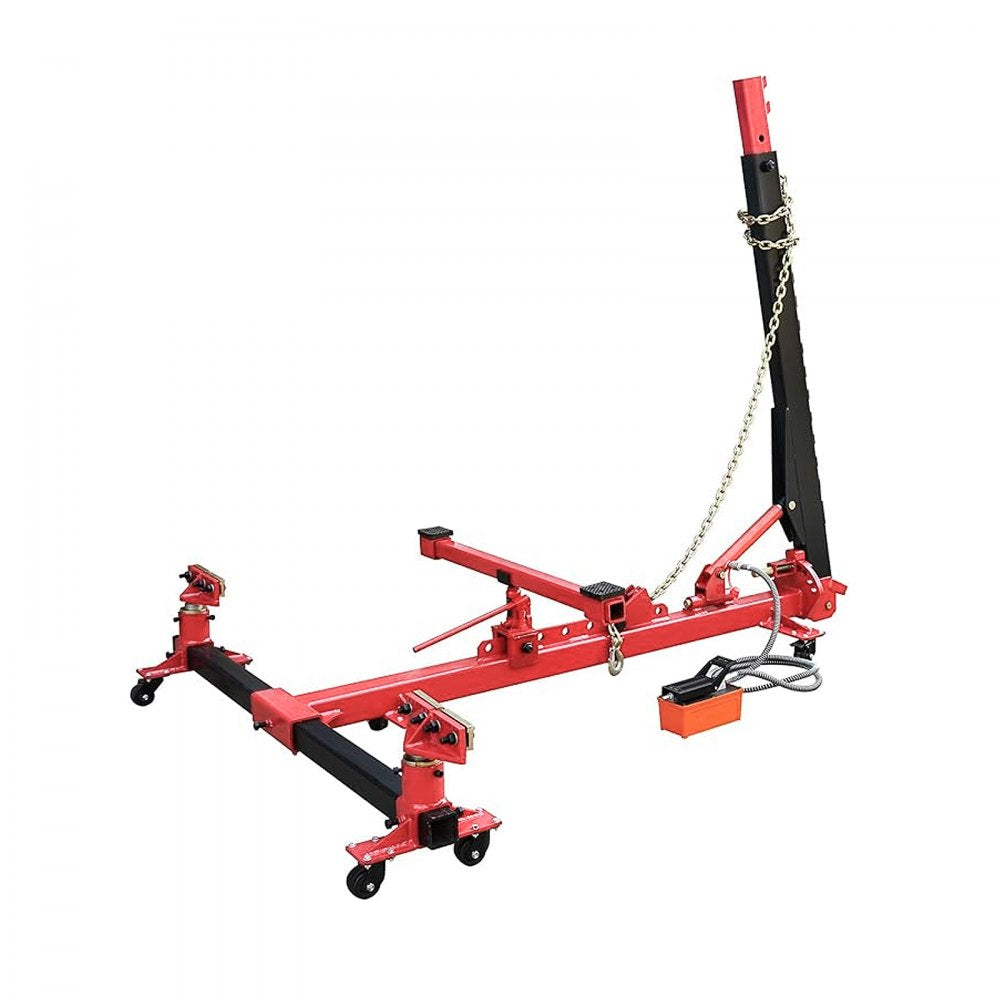

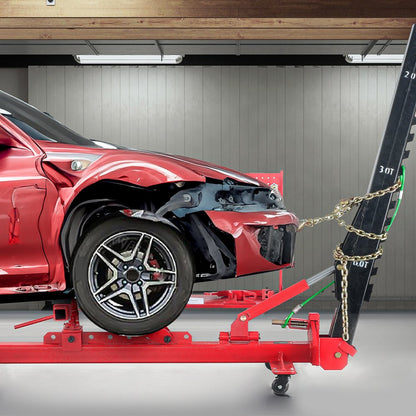

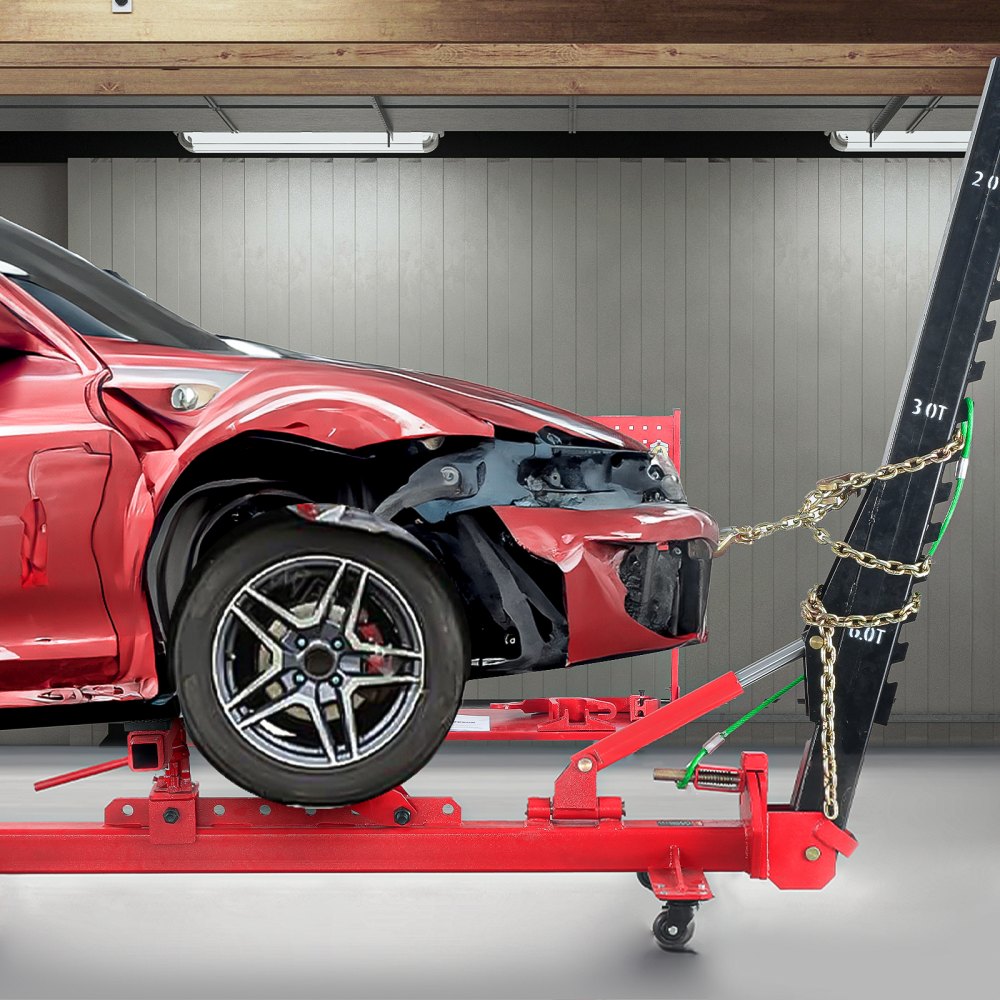

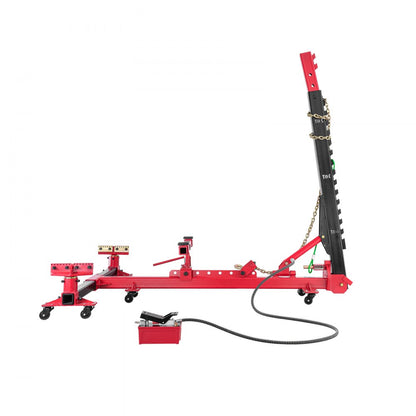

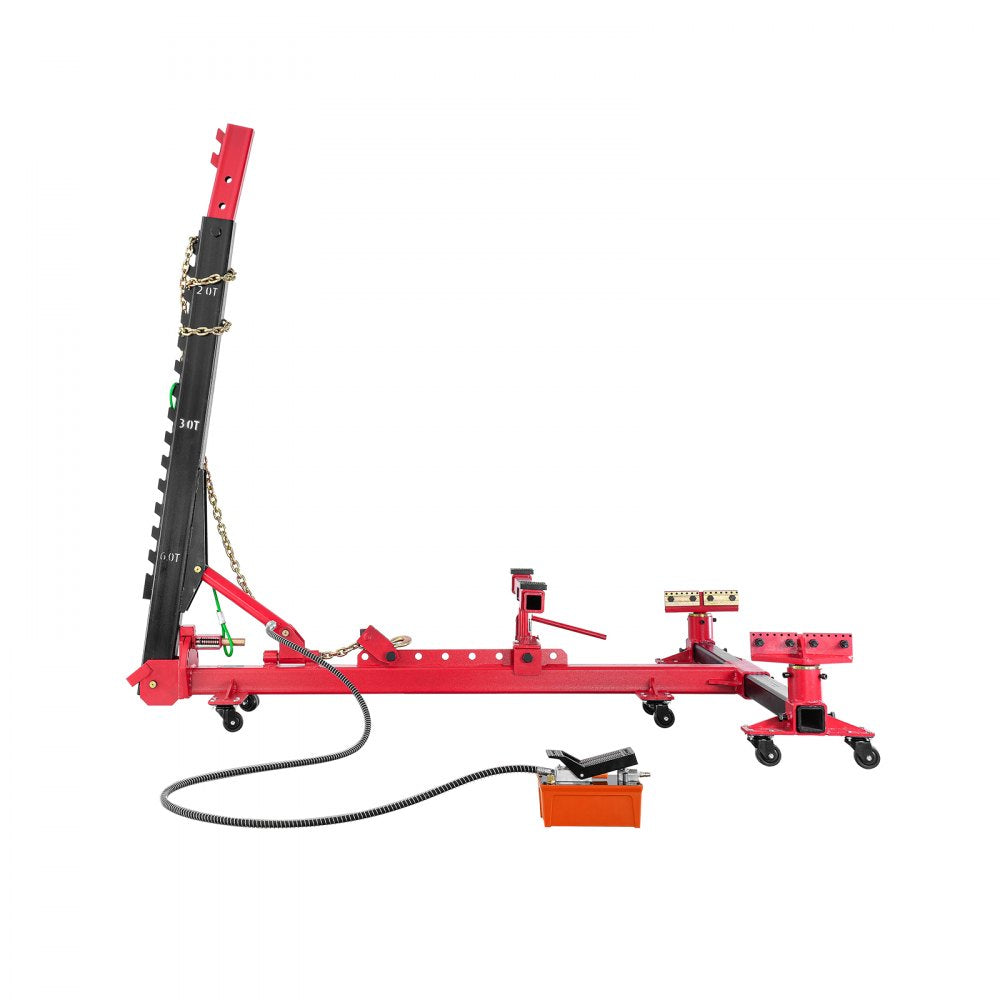

Introducing the VEVOR auto body frame straightener, boasting an impressive 6-ton tensile strength, perfect for addressing various dents and deformities in vehicle bodies Featuring a durable 7-ton hydraulic cylinder alongside a hydraulic air pump, this tool delivers reliable and steady performance for auto repairs The 3-meter iron chain adds exceptional tension strength, making it an invaluable resource for restoring bent frames and correcting drippings.

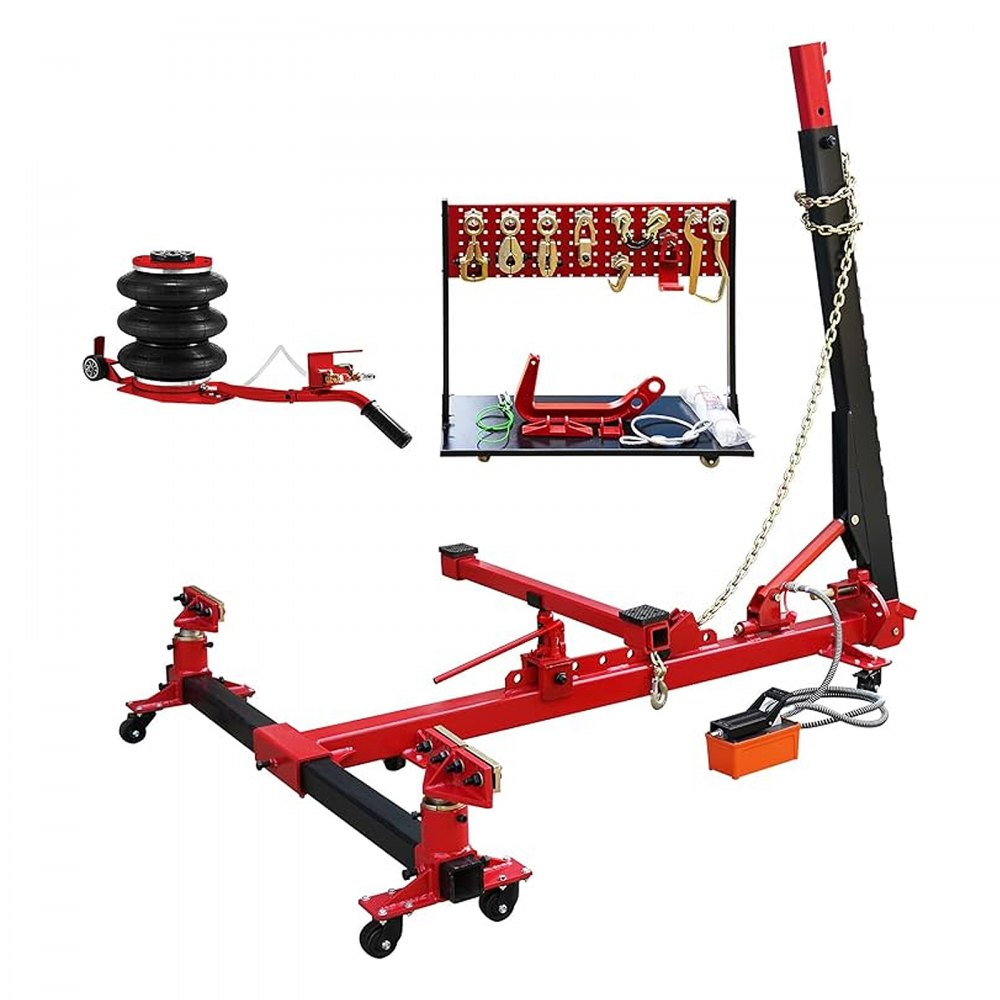

This straightener is engineered for precise and effective repairs, making it essential for any body shop Its powerful tensile force streamlines the repair process, ultimately saving you both time and effort in vehicle maintenance With an adjustable column that swings between -60 to +60 degrees, it easily accommodates different vehicle components Included is a 3-ton airbag jack for rapid vehicle lifting, and double-screw clamps provide added stability.

The mobility of the frame, complemented by eight smooth casters, enhances its versatility, allowing it to easily adapt to various vehicle models.

Features and Benefits:

    •6-Ton Strong Tensile Force with robust hydraulic cylinder..

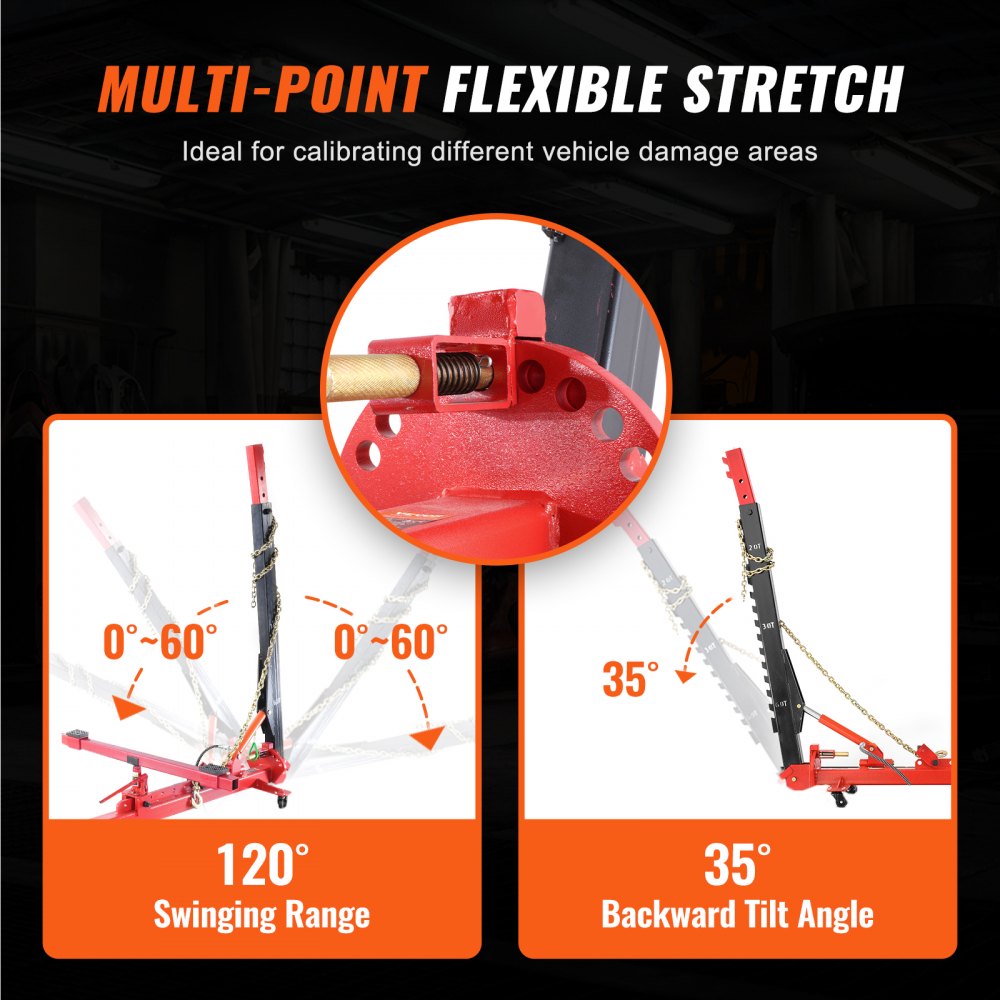

    •Flexible Adjustable Tower Column with a swing range from -60 to +60 degrees..

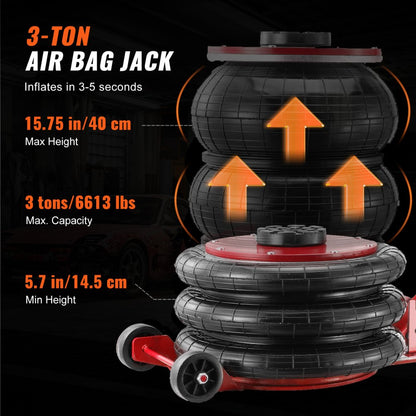

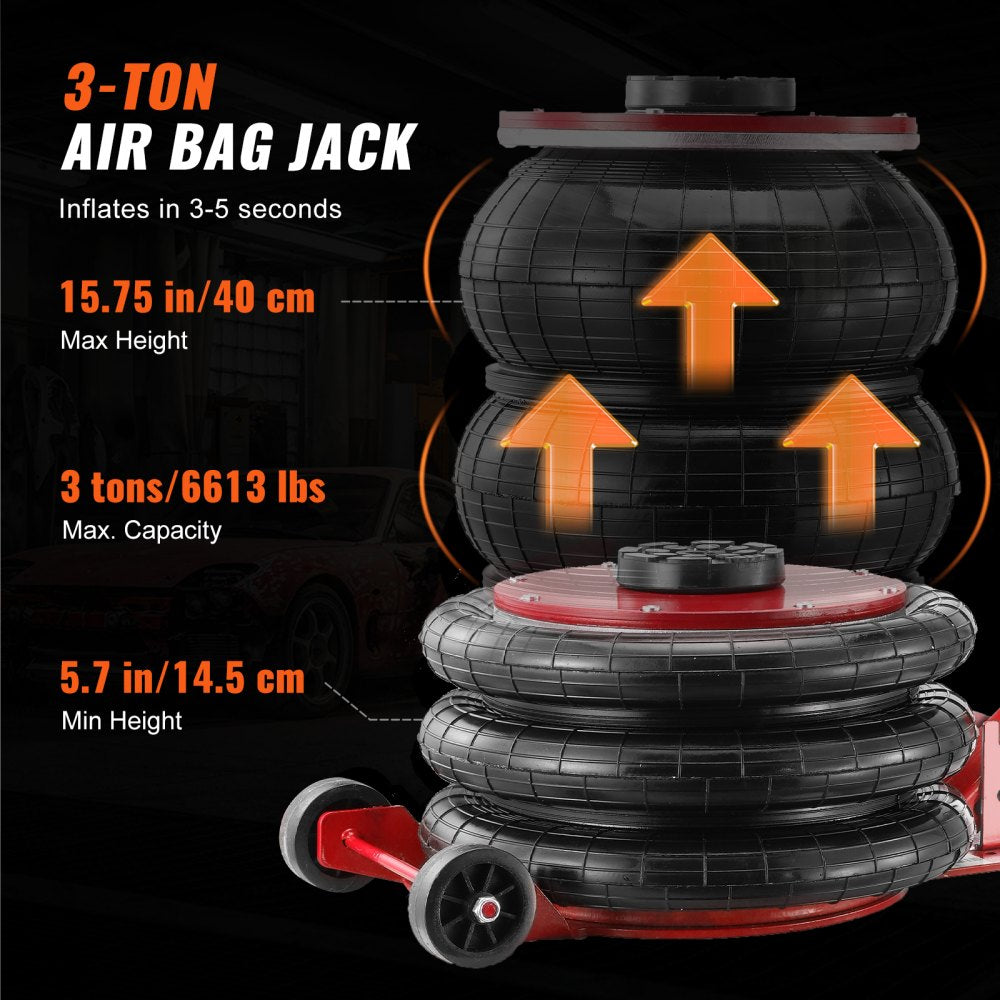

    •3-Ton Airbag Jack lifts 6,600 lbs between 5.7" and 15.75" in 5 seconds..

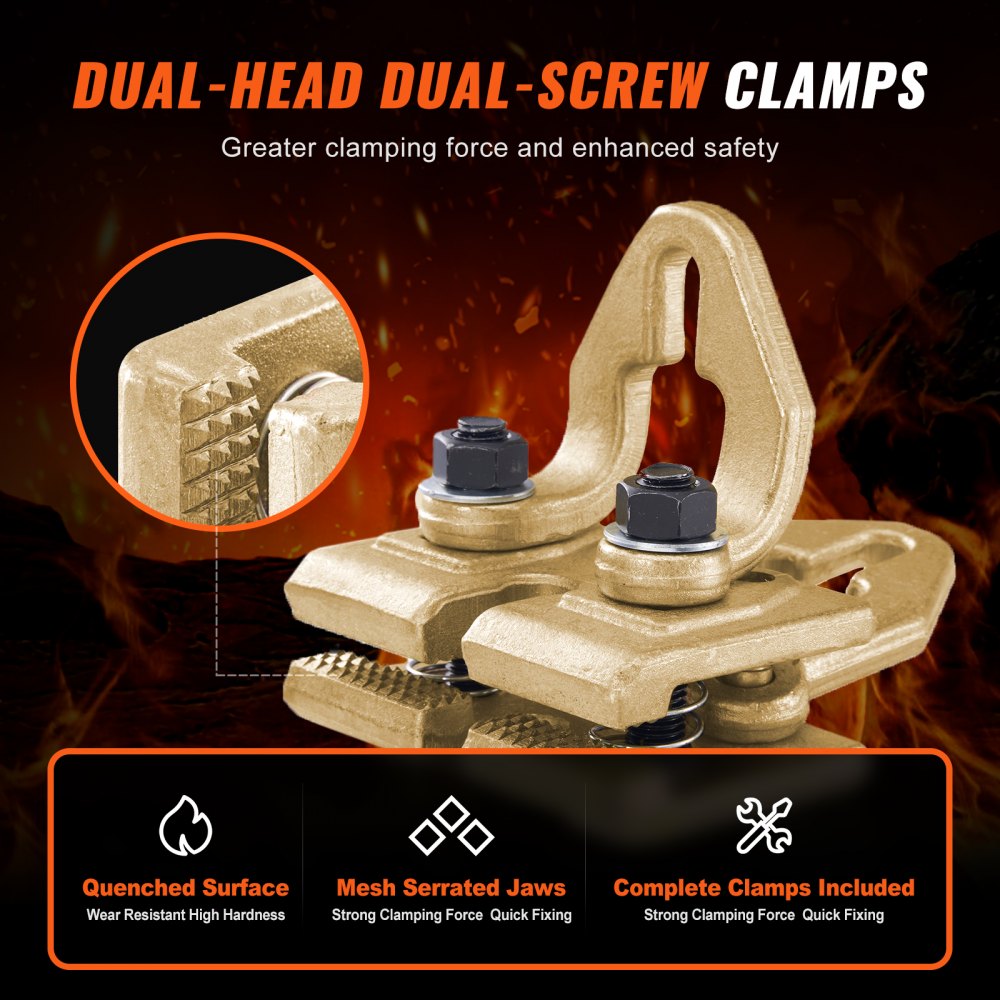

    •Durable Double-Screw Clamps for high clamping force and stability..

    •Enhanced Mobility with 8 smooth casters for easy adjustment and support..

    •Repairing vehicle body deformations and damages..

    •Straightening bent frames in automotive body shops..

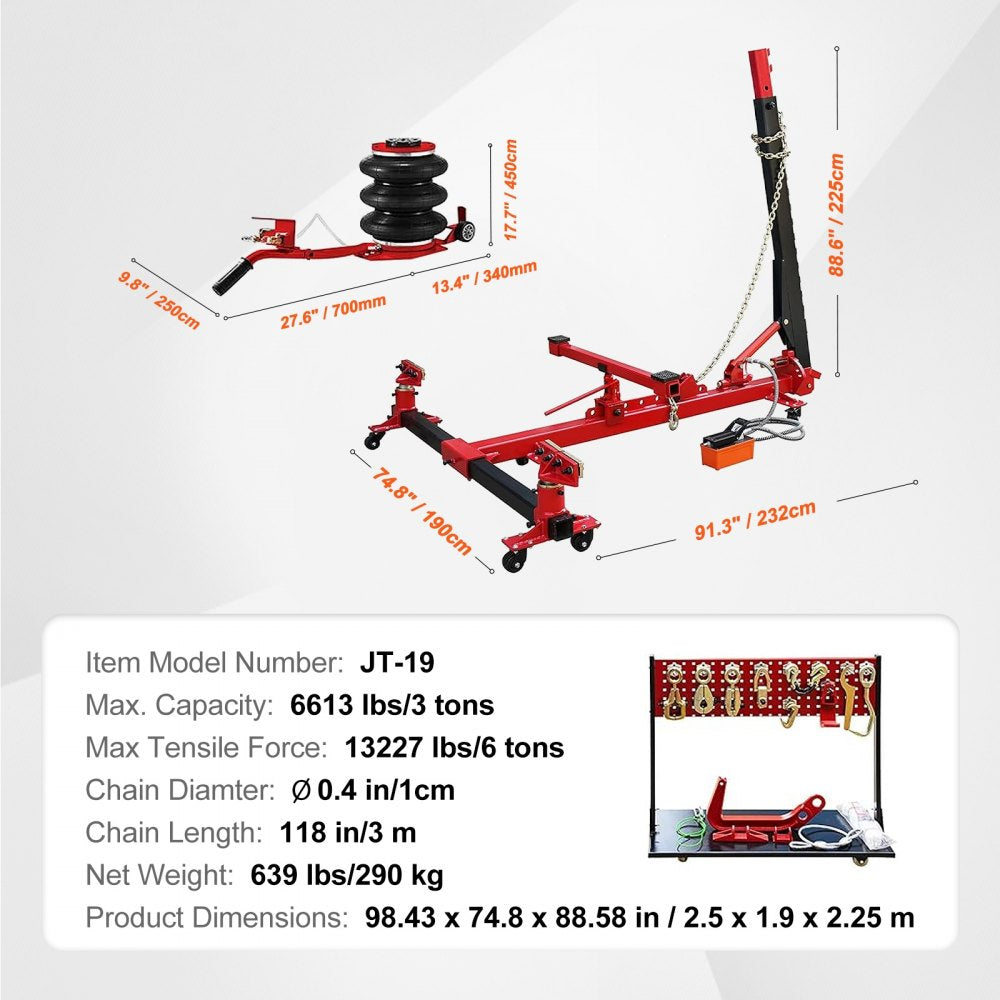

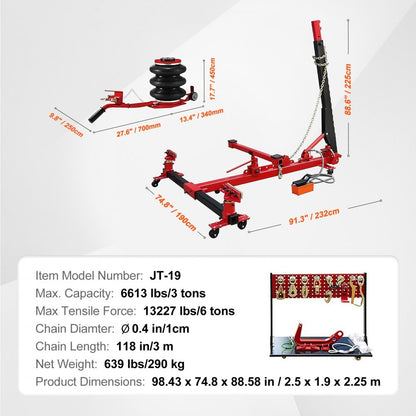

Specifications:

 Item Model Number JT-19
 Product Dimensions 98.43 x 74.8 x 88.58 in / 2.5 x 1.9 x 2.25 m
 Load Capacity 6613 lbs / 3 ton
 Max Tension 13227 lbs / 6 ton
 Material Q235B
 Number of Casters 8 pcs
 Caster Diameter φ2.95 in/75 mm
 Column Swing Angle -60°, -45°, -30°, -15°, 0°, 15°, 30°, 45°, 60°
 Column Rear Tilt Angle 35°
 Chain Diameter ∅0.4 in / 1 cm
 Chain Length 118 in / 3 m
 Load Capacity of Hook 6613 lbs / 3 tons
 Position Adjustment 8-hole

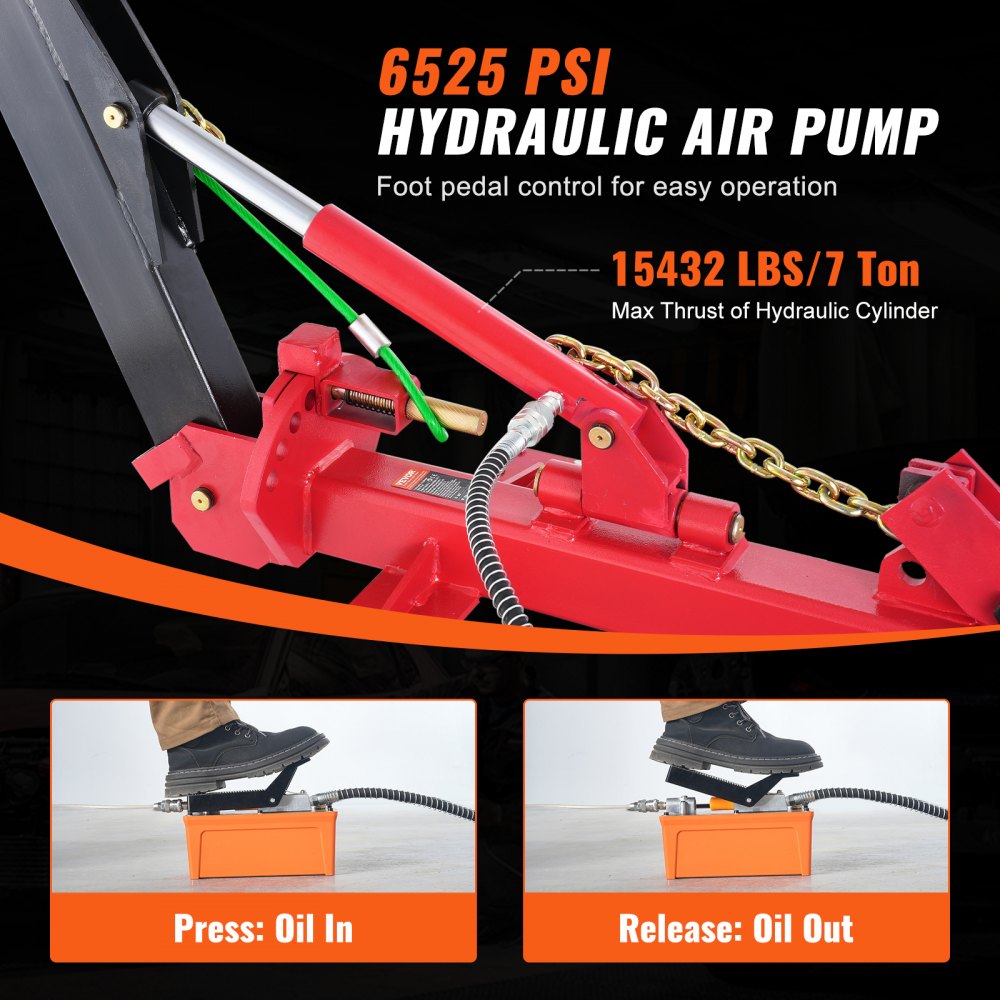

 Max Thrust of Hydraulic Cylinder 15432 lbs / 7 tons
 Max Pressure of Hydraulic System 45 MPa
 Air Supply Required 0.6-1 MPa
 Airbag Jack Working Pressure 0.8-1.0 MPa
 Airbag Jack Load Capacity 6613 lbs / 3 tons
 Airbag Jack Lifting Range 5.7-15.75 inches / 14.5-40 cm
 Airbag Jack Material Rubber
 Airbag Jack Product Dimensions 40.55 x 10.55 x 5.5 in / 103 x 26.8 x 14 cm (Uninflated)
 Airbag Jack Net Weight 34.83 lbs/15.8 kg
