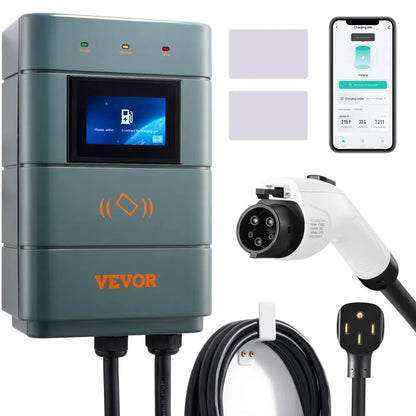

EV-A01-US011B - 48A VEVOR Level 2 EV Charger, 11.5 kW, Adjustable Settings
EV-A01-US011B - 48A VEVOR Level 2 EV Charger, 11.5 kW, Adjustable Settings
SKU: SKU: EV-A01-US011B Download PDF
- EV-A01-US011B - 48A VEVOR Level 2 EV Charger, 11.5 kW, Adjustable Settings
- EV-A01-US011B - 48A VEVOR Level 2 EV Charger, 11.5 kW, Adjustable Settings
Couldn't load pickup availability
Description:

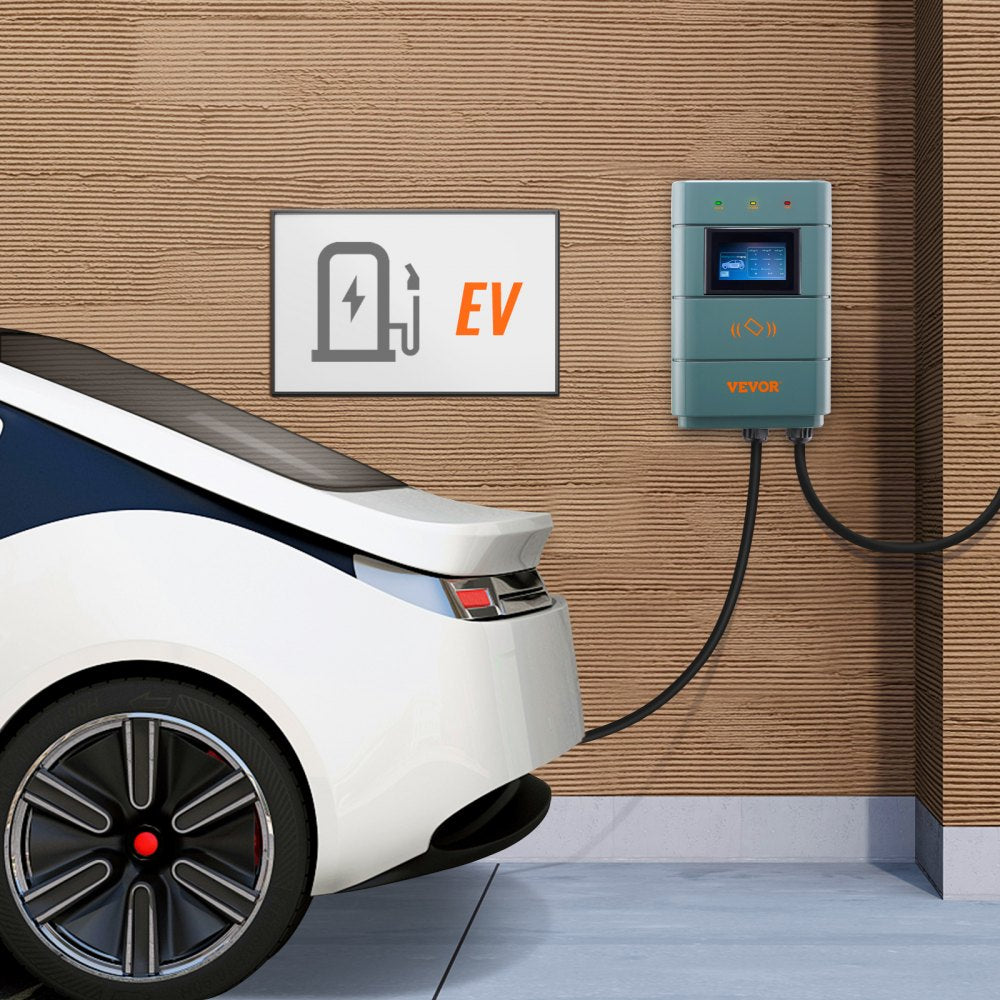

Introducing the versatile VEVOR Level 2 Electric Vehicle Charging Station, expertly designed to meet your electric vehicle charging needs This charging station is equipped with adjustable settings, making it suitable for various settings It offers an impressive power output of up to 48 amps, allowing for quick and efficient charging With a maximum capacity of 115 kW, you can customize the charging speed according to your preferences.
Whether for home use or commercial applications, this unit provides a practical and energy-efficient EV charging solution.
Features and Benefits:

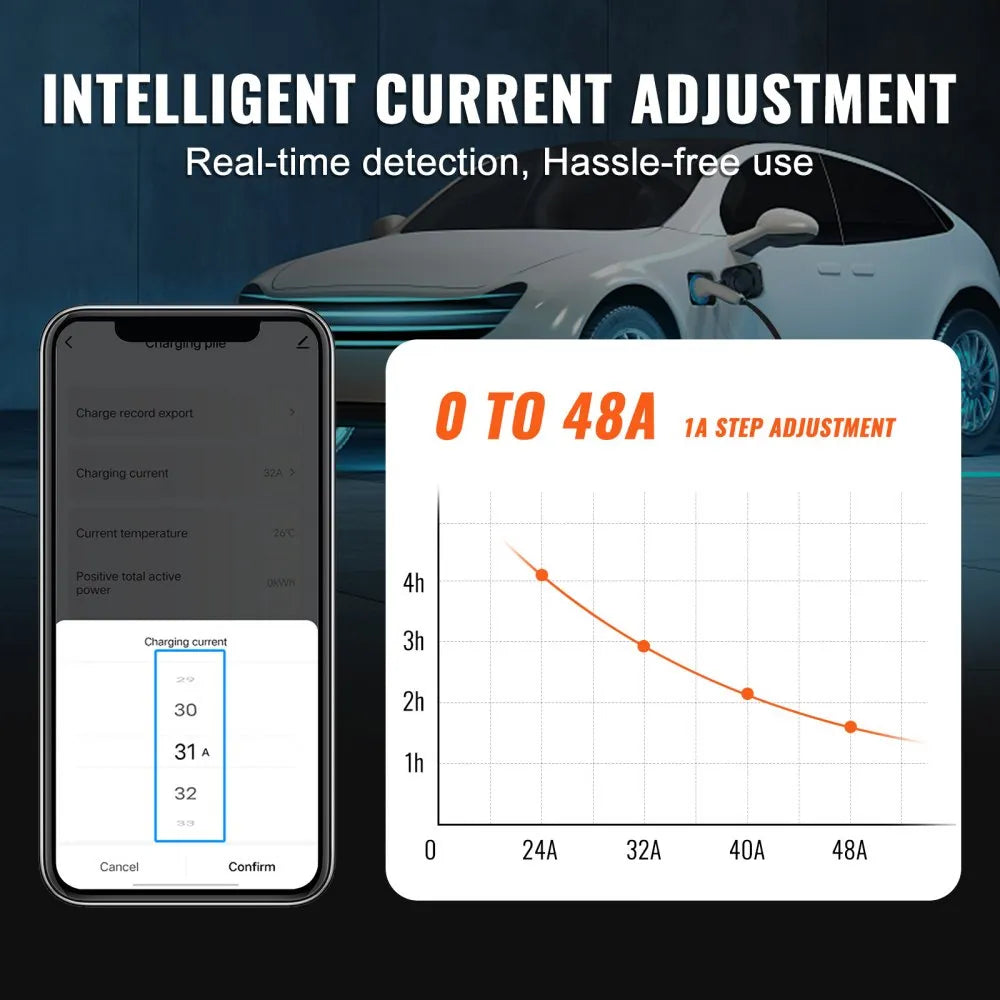

•Customizable power output from 0 to 48 amps for optimal charging convenience.

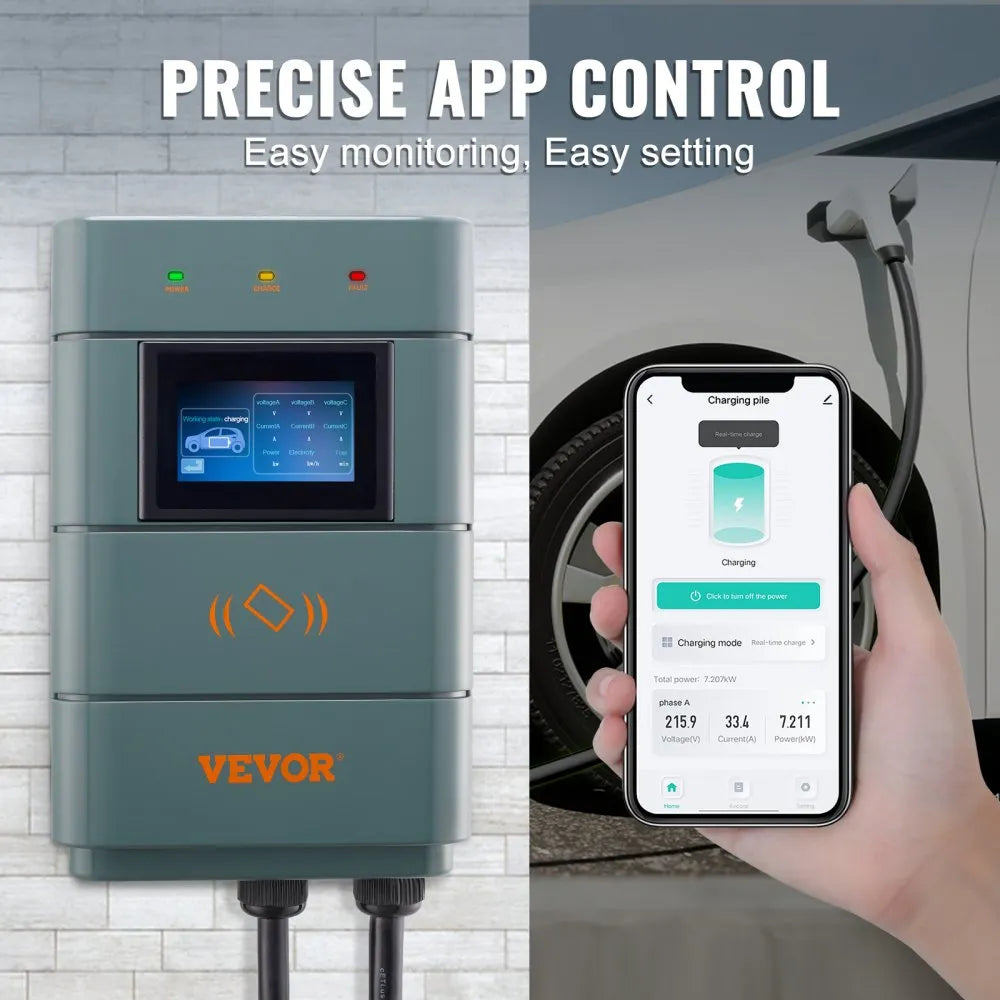

•WiFi connectivity for mobile app control of charging schedules and settings.
•Portable design with plug-and-play installation using a NEMA 14-50 plug.
•Constructed with high-quality materials for durability and equipped with numerous safety features.

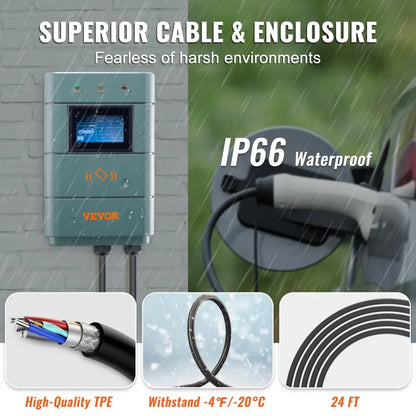

•Versatile indoor and outdoor usability with an IP66 rating for dust and water resistance.
•Energy Star certification for eco-friendly operation and reduced energy costs.
•Home and commercial use for various electric vehicles and plug-in hybrid vehicles.
Specifications:
| Model | EV-A01-US011B |
| Voltage | Level II 240V±15%, 60 Hz |
| Power Output | 11.5 kW |
| Maximum Output Current | 48A |
| Charging Interface | SAE J1772 |
| Input Plug | NEMA 14-50P |
| IP Rating | IP66 |
| Charging Cable | 24 ft / 7.3 m (2*8AWG + 1*10AWG, TPE) |
| Input Cable | 5 ft / 1.5 m (2*8AWG + 1*10AWG, PVC) |
| Certification | ETL Certified; Energy Star Certified |
| Enclosure Material | PC+ABS |

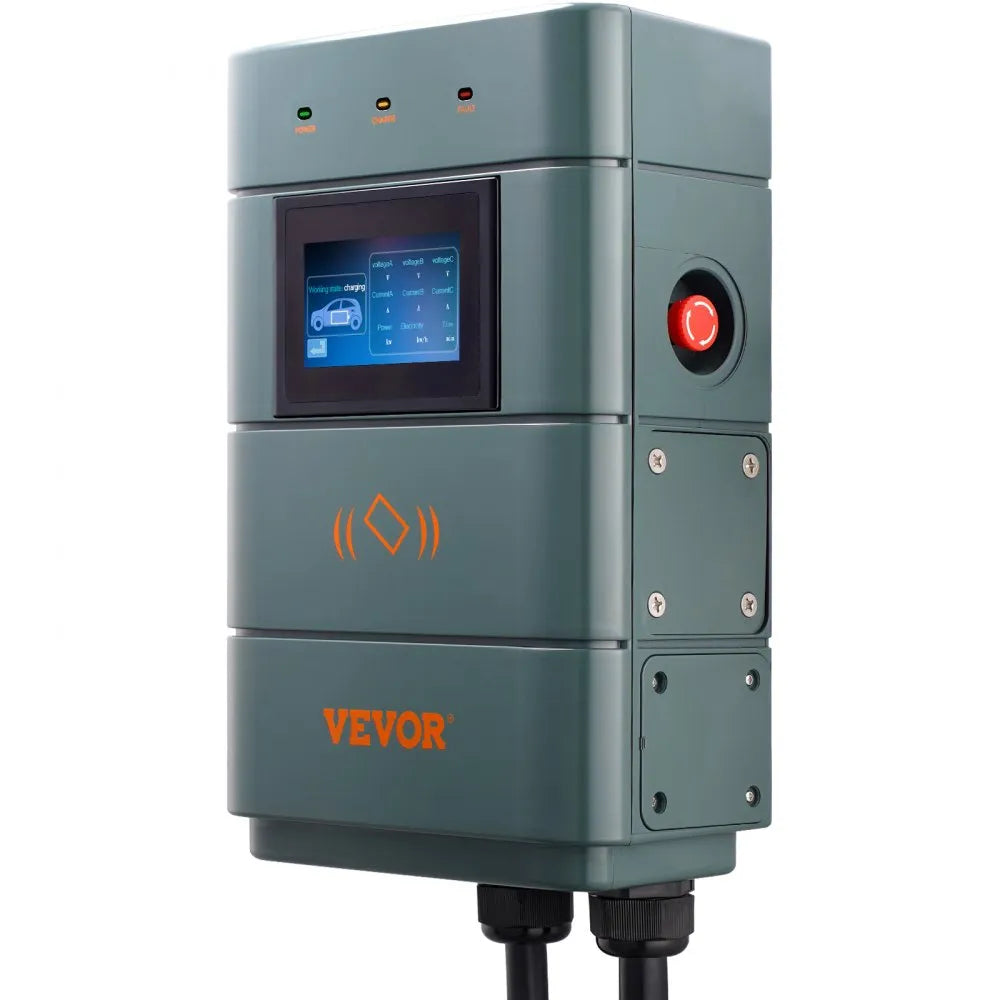

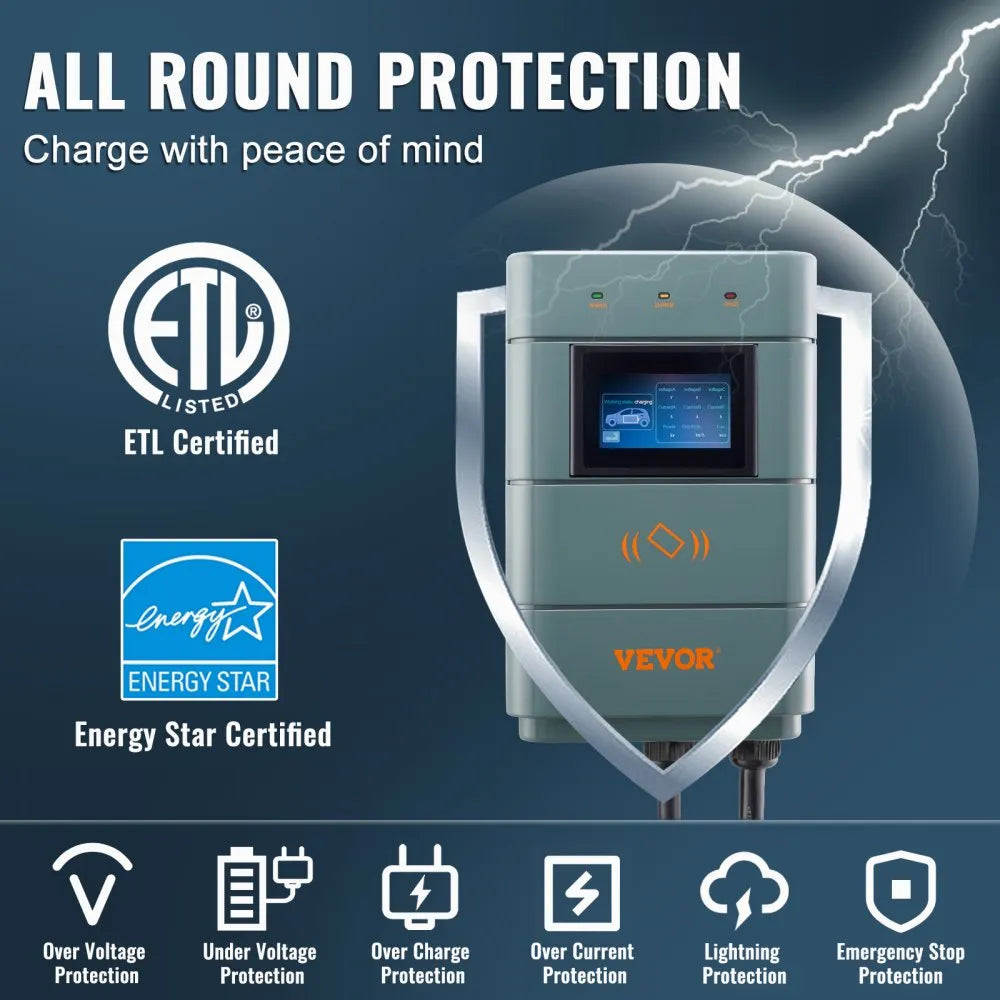

| Protection Function | Over Voltage, Under Voltage, Over Charge, Over Current Protection, Lightning Protection, Emergency Stop Protection |
| Indicator Light | Standby - Green on; Charging - Yellow blinking; Alarm - Red on |

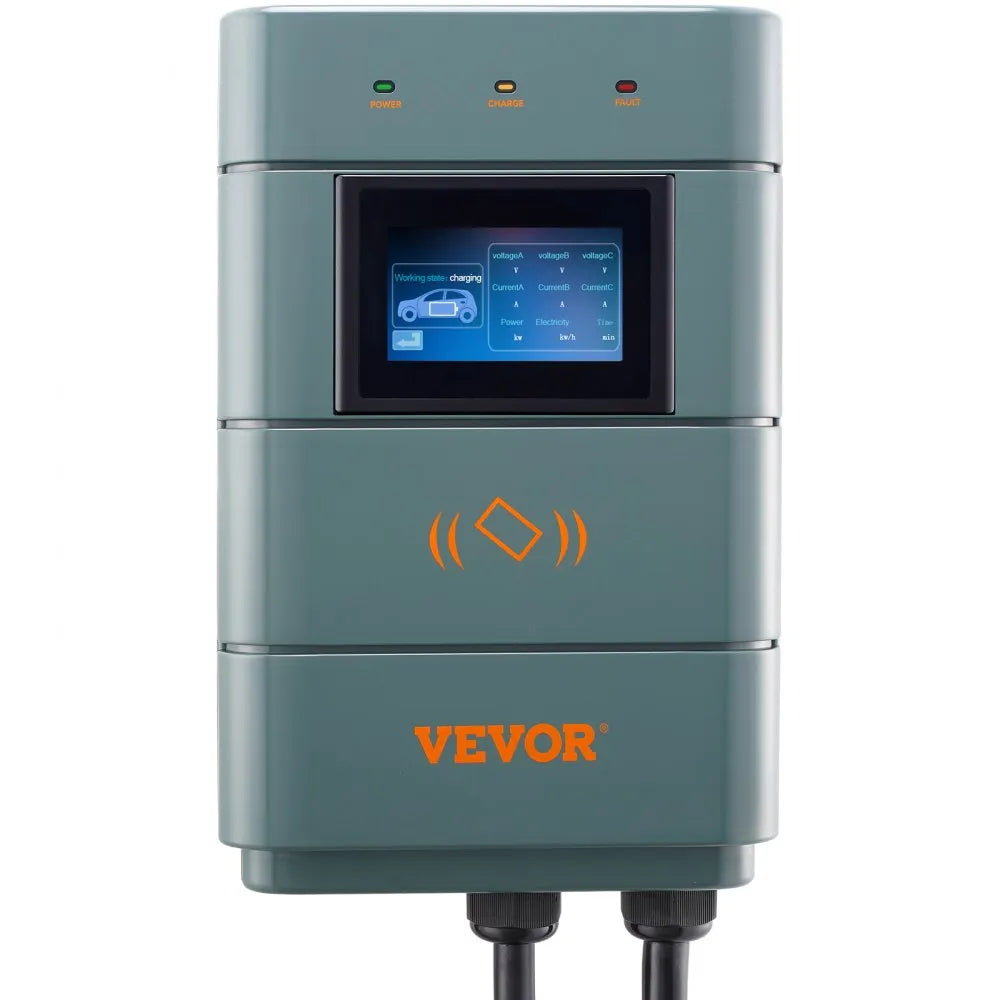

| Indication of Status | 3*LED Light Indicator & 4.3-inch Touchscreen |
| Charging Mode | Swipe Card Charging / APP Charging / Password Charging / Appointment Charging |
| Operating Temperature | -22 to 122℉/-30 to 50℃ |
| Relative Humidity | 5% to 95% No Condensation |
| Standard of Reference | CCS1 (combo/Type 1) AC Level 2 charging |
| Mechanical Timing | 1-24 Hours |

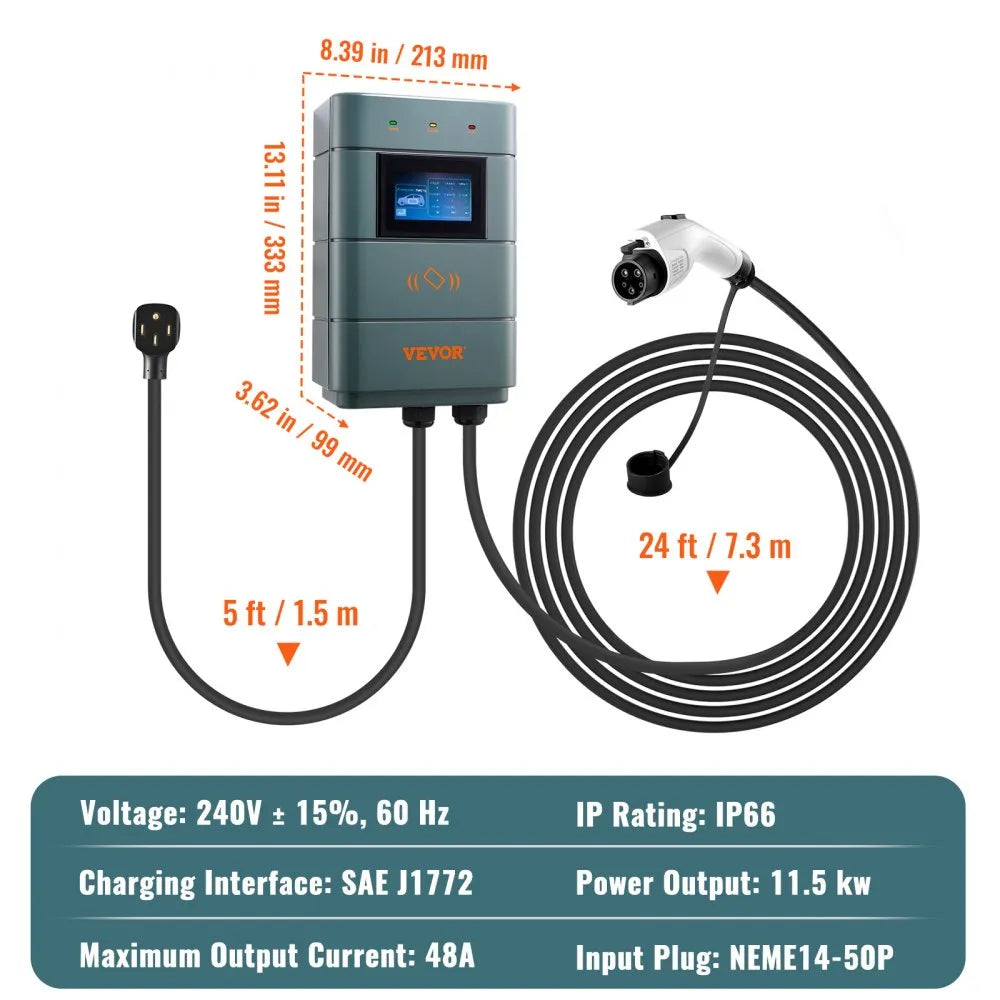

| Item Dimensions H x W x D | 13.11 x 8.39 x 3.62 in / 333 x 213 x 92 mm |
| Packing Size H x W x D | 20.87 x 16.54 x 7.68 in / 53 x 42 x 19.5 cm |
| Net Weight | 17.61 lbs / 7.99 kg |
| Gross Weight | 18.74 lbs / 8.5 kg |
