Description:

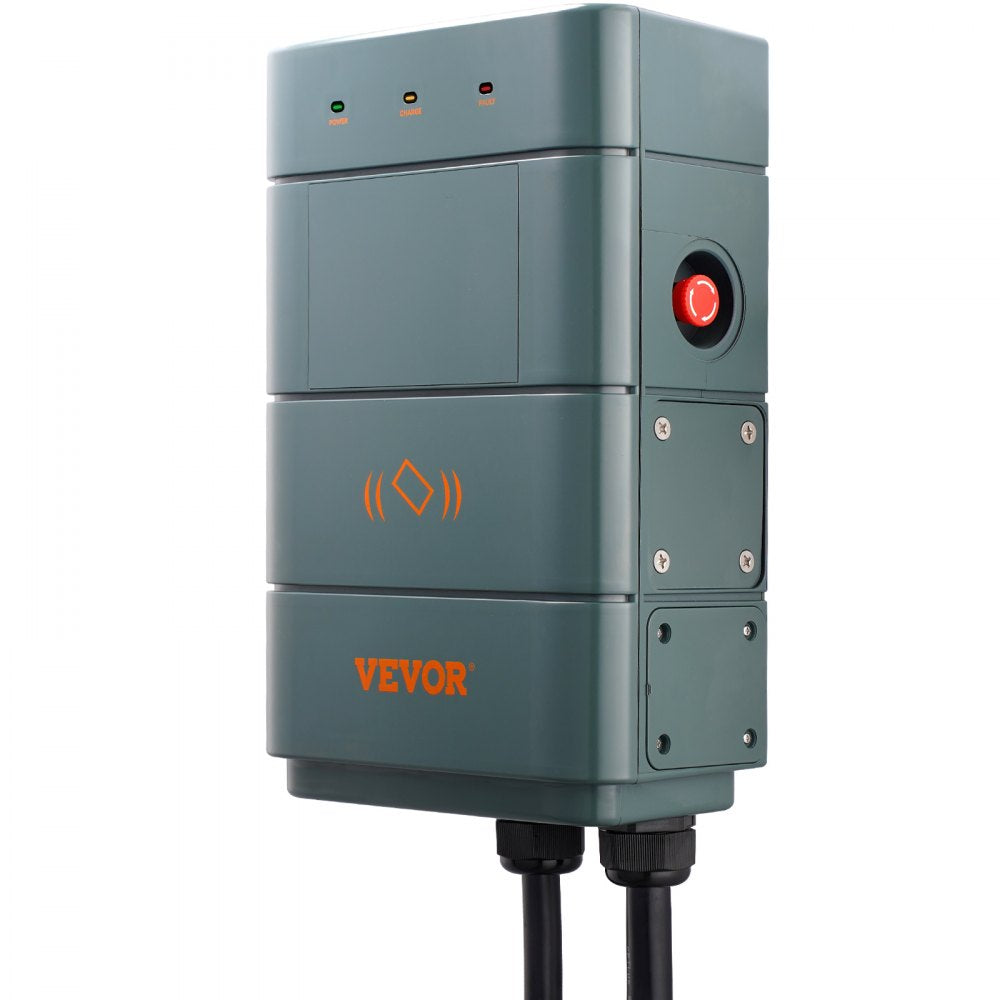

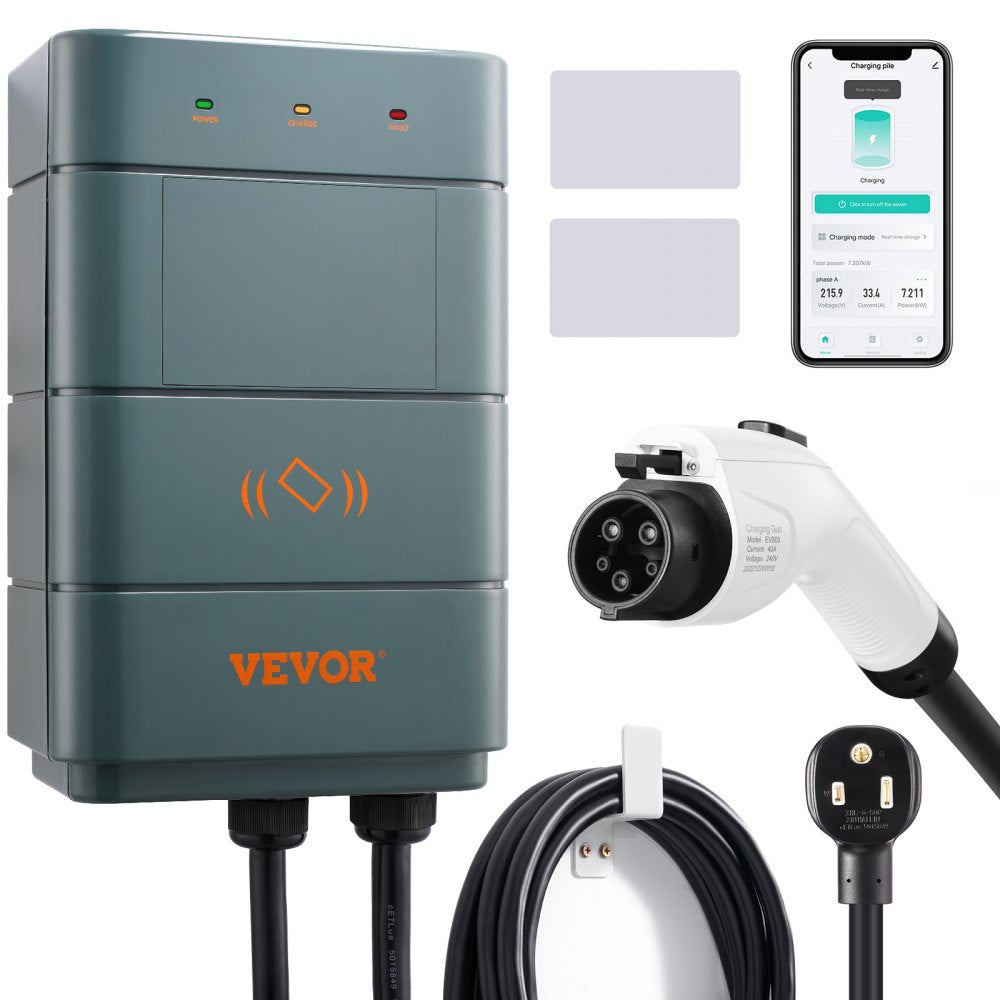

Introducing the VEVOR Level 2 EV charging station, your reliable partner for all your electric vehicle charging needs With a powerful output of up to 40A, this station can deliver an impressive 96 kW of energy Safety is a priority, featuring multiple protective mechanisms against over-voltage, under-voltage, overcharging, and overcurrent It also includes lightning protection and an emergency stop function for added peace of mind.
Rated at IP66, this charging station is designed to withstand dust and strong water jets, making it ideal for use in both indoor and outdoor environments The durable PC+ABS casing ensures long-lasting performance, while the built-in LED indicators make it easy to monitor your charging progress, enhancing your overall experience at home.
Features and Benefits:
•Compatible with various electric vehicles that adhere to the J1772 standard.
•Adjustable current settings for customizable charging speeds.
•NEMA 6-50 plug providing easy installation options.
•Lightweight and portable design for easy relocation.
•Smart Life app for remote management and control of charging sessions.
•Cost-effective solution built with high-quality components.

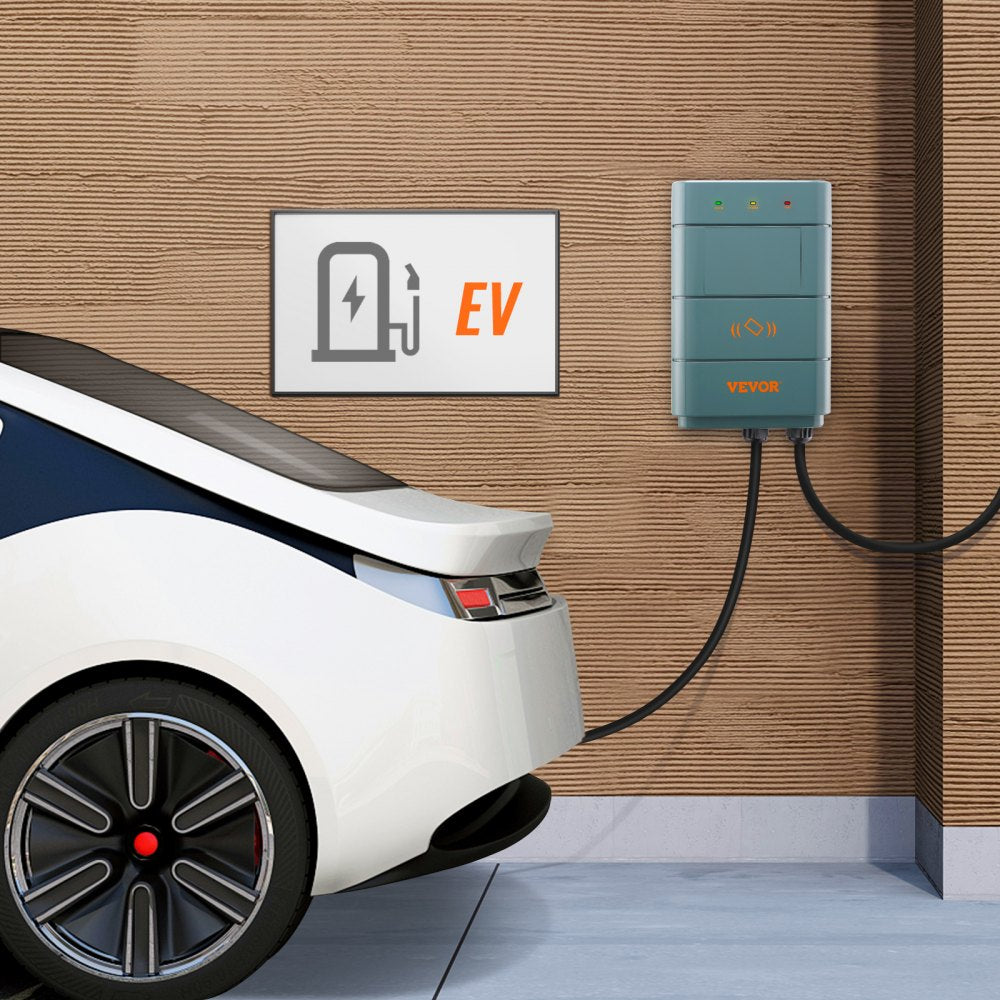

•Home EV charging.
•Charging various models of electric vehicles including BMW, Tesla, and Chevrolet.
Specifications:
| Voltage | Level II 240V±15%, 60 Hz |
| Power Output | 9.6 kW |
| Maximum Output Current | 40A |
| Charging Interface | SAE J1772 |
| Input Plug | NEMA 6-50P |
| IP Rating | IP66 |
| Charging Cable | 22 ft / 6.7 m (2*9AWG+1*10AWG, TPE) |
| Input Cable | 3.3 ft / 1 m (2*8AWG+1*10AWG, PVC) |
| Certification | ETL Certified; Energy Star Certified |
| Enclosure Material | PC+ABS |
| Protection Function | Over Voltage, Under Voltage, Over Charge, Over Current Protection, Lightning Protection, Emergency Stop Protection |
| Indicator Light | Standby - Green on; Charging - Yellow blinking; Alarm - Red on |
| Indication of Status | 3*LED Light Indicator |
| Charging Mode | Swipe Card Charging / APP Charging |
| Operating Temperature | -22 to 122℉/-30 to 50℃ |
| Relative Humidity | 5% to 95% No Condensation |
| Standard of Reference | CCS1 (combo/Type 1) AC Level 2 charging |

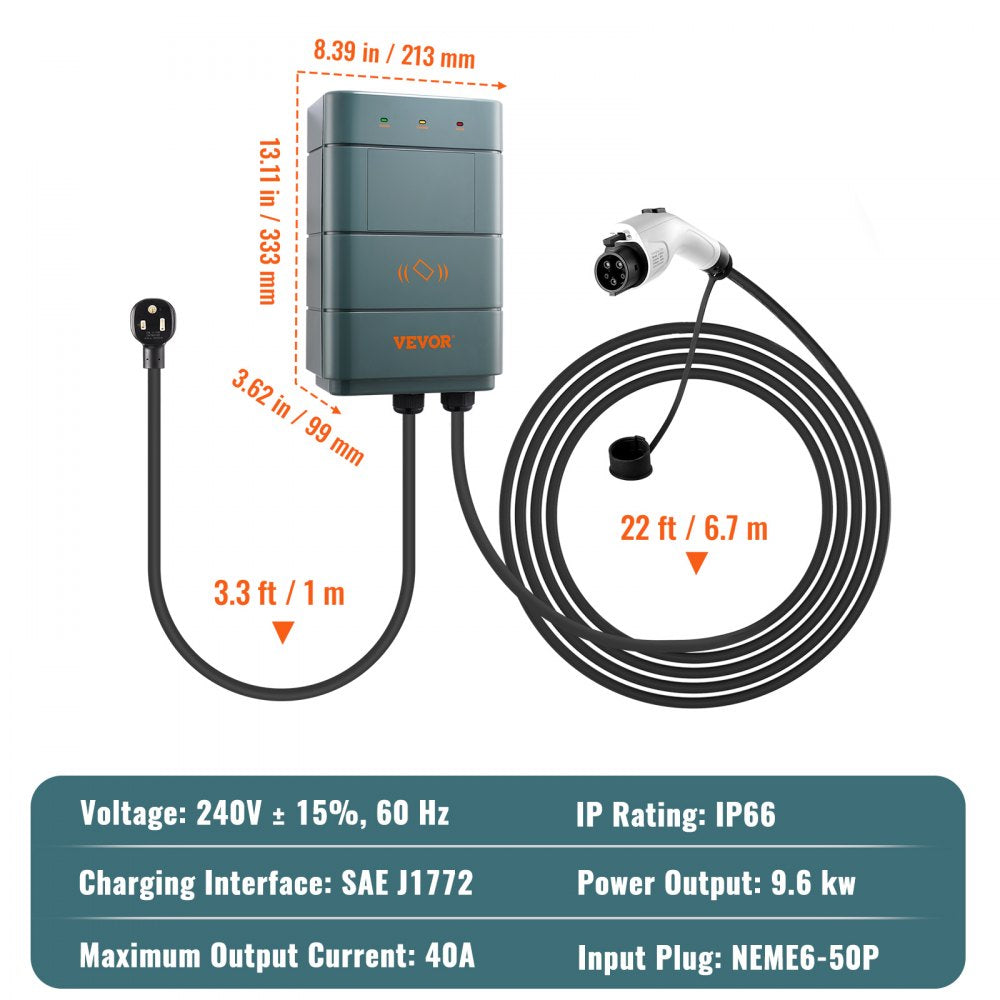

| Item Dimensions (H x W x D) | 13.11 x 8.39 x 3.62 in / 333 x 213 x 92 mm |
| Packing Size (H x W x D) | 20.87 x 16.54 x 7.68 in / 53 x 42 x 19.5 cm |
| Net Weight | 14.64 lbs / 6.64 kg |
| Gross Weight | 17.31 lbs / 7.85 kg |
