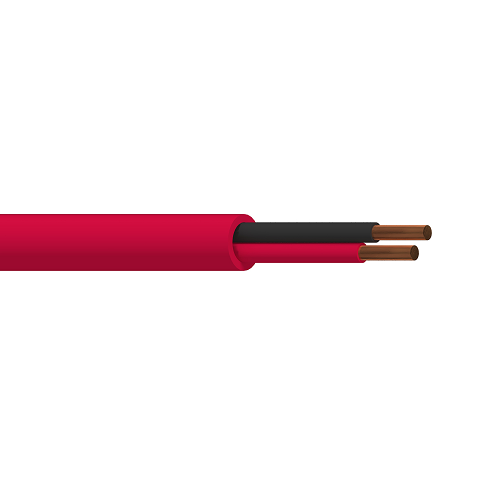

Belden 9582 12 AWG 2 Conductor Solid Bare Copper 300V Electronic Cable

Description:-

Electronic, 2 Conductor 12 AWG (Solid) Bare Copper, PVC Insulation, Red PVC Outer Jacket, FPLR

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Insulation Diameter: 0.127 in (3.23 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.042 in (1.1 mm)
• Nom. Diameter: 0.34 in
• Overall Cable Diameter (Nominal): 0.34 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Specifications:-

• Size (AWG): 12
• No. of Conductor: 2
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 9582
