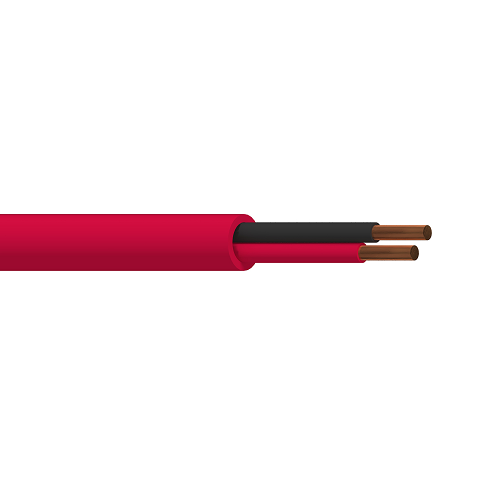

Belden 9571 18 AWG 2 Conductor Solid Bare Copper 300V Electronic Cable

Description:-

Electronic, 2 Conductor 18 AWG (Solid) Bare Copper, PVC Insulation, Red PVC Outer Jacket, FPLR

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.072 in mm

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.228 in
• Overall Cable Diameter (Nominal): 0.228 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -40°C To +105°C

Applications:-

• fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Specifications:-

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 9571
