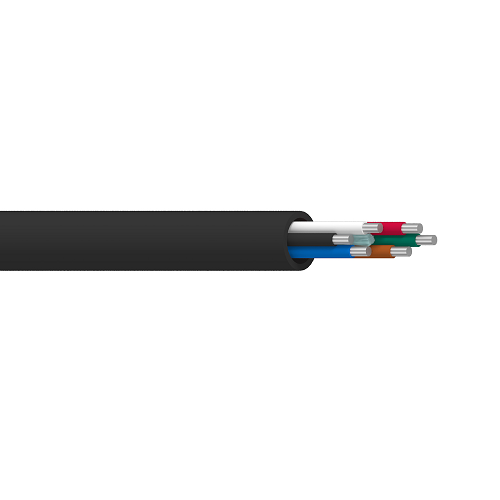

Belden 9576 22 AWG 6 Conductor Solid Tinned Copper 300V Electronic Cable

Description:-

Electronic, 6 Conductor 22 AWG (Solid) Tinned Copper, PVC Insulation, Black PVC Outer Jacket, FPLR.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.052 in (1.3 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.039 in (0.99 mm)
• Nom. Diameter: 0.234 in
• Overall Cable Diameter (Nominal): 0.234 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -40°C To +105°C

Applications:-

• fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …)

Specifications:-

• Size (AWG): 22
• No. of Conductor: 6
• Stranding: Solid
• Conductor Material: TC - Tinned Copper
• Part Number: 9576
