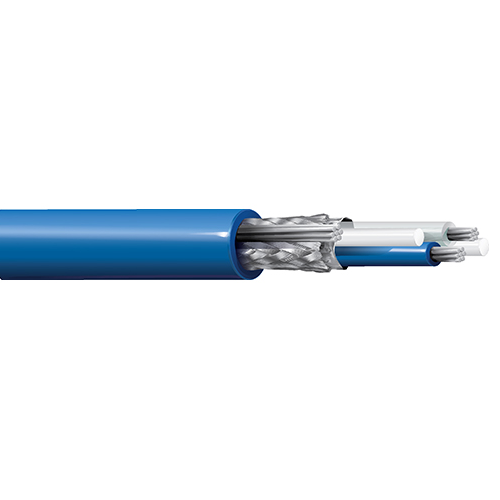

Belden 9463DB 20 AWG 1 Pair 7x28 Stranding Tinned Copper 78 Ohm Blue Hose Cable

Description:

Blue Hose for Data Highway Plus, 1 Pair 20 AWG (7x28) Tinned Copper, PE Insulation Blue and Clear, Overall Beldfoil+Tinned Copper Braid(55%) Shield, Blue PE Outer Jacket, DIR BUR.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.0755 in (1.92 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 55%

• Overall Beldfoil (aluminum/polyester tape) shield (100% coverage) plus a tinned copper braid shield (55% coverage).

Outer Jacket:

• Material: PE - Polyethylene
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.240 in (6.10 mm)
• Overall Cable Diameter (Nominal): 0.240 in (6.10 mm)

Standards:

• Operating Temperature: -55°C to +80°C
• Nominal Impedance: 78 Ohms.

Applications:

• direct burial, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc.
