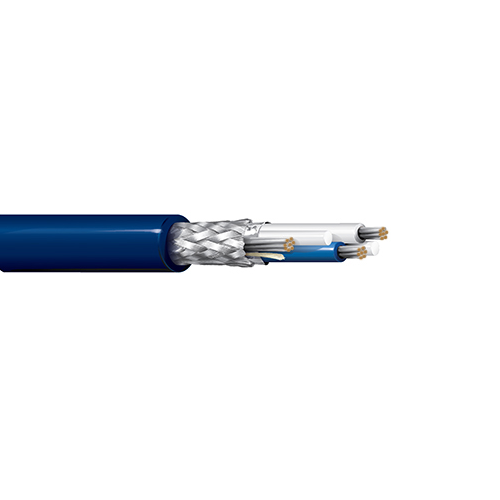

Belden 3072F 18 AWG 1 Pair 7x26 Stranding Tinned Copper 600V Blue Hose Cable
Belden 3072F 18 AWG 1 Pair 7x26 Stranding Tinned Copper 600V Blue Hose Cable
SKU: SKU: NES3072F Download PDF
Select a gauge:
- Belden 3072F 18 AWG 1 Pair 7x26 Stranding Tinned Copper 600V Blue Hose Cable
- Belden 3072F 18 AWG 1 Pair 7x26 Stranding Tinned Copper 600V Blue Hose Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 3072F 18 AWG 1 Pair 7x26 Stranding Tinned Copper 600V Blue Hose Cable
Description:
Blue Hose for Data Highway Plus, 1 Pair 18 AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil+Tinned Copper Braid (55%) Shield, PVC Outer Jacket, 600V TC, PLTC.
Insulation:
• Material: PP - Polypropylene
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Insulation Diameter: 0.096 in (2.4 mm)
Outer Shield:
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 55%
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.053 in (1.3 mm)
• Nom. Diameter: 0.324 in (8.23 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.006
• Overall Cable Diameter (Nominal): 0.324 in (8.23 mm)
Standards:
• Operating Temperature: -40°C to +75°C
• Nom. Characteristic Impedance: 78 Ohms
• Voltage Rating: 600 V (TC), 300 V (CMG, PLTC)
Applications:
• harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
Specifications:
• Size (AWG): 18
• No. of Pair: 1
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 3072F
Description:
Blue Hose for Data Highway Plus, 1 Pair 18 AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil+Tinned Copper Braid (55%) Shield, PVC Outer Jacket, 600V TC, PLTC.
Insulation:
• Material: PP - Polypropylene
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Insulation Diameter: 0.096 in (2.4 mm)
Outer Shield:
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 55%
Outer Jacket:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.053 in (1.3 mm)
• Nom. Diameter: 0.324 in (8.23 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.006
• Overall Cable Diameter (Nominal): 0.324 in (8.23 mm)
Standards:
• Operating Temperature: -40°C to +75°C
• Nom. Characteristic Impedance: 78 Ohms
• Voltage Rating: 600 V (TC), 300 V (CMG, PLTC)
Applications:
• harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
Specifications:
• Size (AWG): 18
• No. of Pair: 1
• Stranding: 7x26
• Conductor Material: TC - Tinned Copper
• Part Number: 3072F
