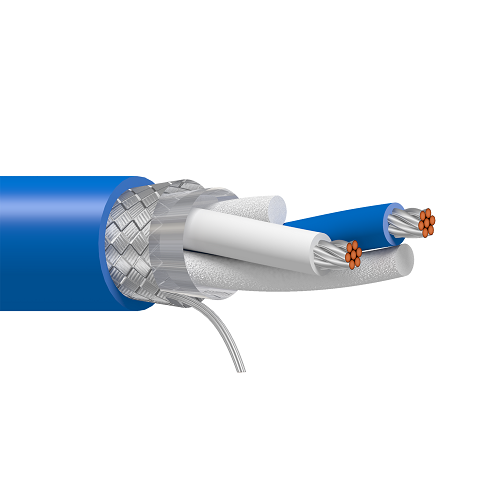

Belden 129463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable
Belden 129463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable
SKU: SKU: NES129463 Download PDF
gauge:
- Belden 129463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable
- Belden 129463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $6.88 /FT
Regular price
BEFORE
Sale price
Now $6.88 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Belden 129463 20 AWG 1 Pair 7x28 Stranding Tinned Copper 300V Blue Hose Cable
Description:-
Blue Hose for Data Highway Plus, 1 Pair 20 AWG (7x28) Tinned Copper, PE Insulation Blue and Clear, Overall Beldfoil +Tinned Copper Braid (55%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, Blue PVC Outer Jacket, CM.
Insulation:-
• Material: PE - Polyethylene
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.076 in (1.9 mm)
Outer Shield:-
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 60%
Inner Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.238 in (6.05 mm)
Outer Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.050 in (1.3 mm)
• Nom. Diameter: 0.550 in (14.0 mm)
• Overall Cable Diameter (Nominal): 0.550 in (14.0 mm)
Armor:-
• Armor Type and Material: AIA - Aluminum Interlock Armor
• Armor Thickness: 0.025 in
• Armor Material Diameter: 0.450 in
Standards:-
• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 78 Ohm
• Operating Temperature Range: -40°C to +60°C
Applications:-
• Exposure to rodent, crush, or cut-through force, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc.
Specifications:-
• Size (AWG): 20
• No. of Pairs: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 129463
Description:-
Blue Hose for Data Highway Plus, 1 Pair 20 AWG (7x28) Tinned Copper, PE Insulation Blue and Clear, Overall Beldfoil +Tinned Copper Braid (55%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, Blue PVC Outer Jacket, CM.
Insulation:-
• Material: PE - Polyethylene
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.076 in (1.9 mm)
Outer Shield:-
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 60%
Inner Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.238 in (6.05 mm)
Outer Jacket:-
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.050 in (1.3 mm)
• Nom. Diameter: 0.550 in (14.0 mm)
• Overall Cable Diameter (Nominal): 0.550 in (14.0 mm)
Armor:-
• Armor Type and Material: AIA - Aluminum Interlock Armor
• Armor Thickness: 0.025 in
• Armor Material Diameter: 0.450 in
Standards:-
• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 78 Ohm
• Operating Temperature Range: -40°C to +60°C
Applications:-
• Exposure to rodent, crush, or cut-through force, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc.
Specifications:-
• Size (AWG): 20
• No. of Pairs: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 129463
