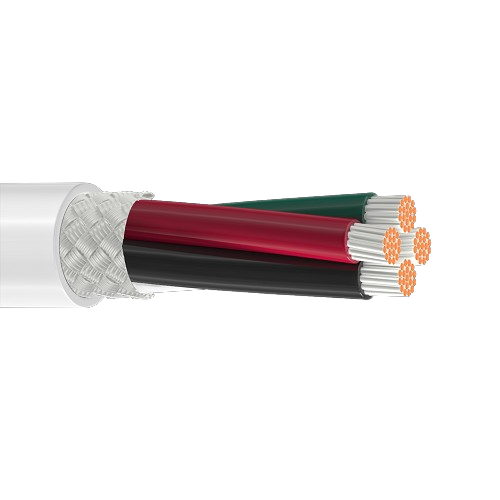

Belden 83351E 18 AWG 4 Conductor 19x30 Stranded Silvered Copper 600V Electronic Cable

Description:-

High Temperature Electronic, 4 Conductor 18 AWG (19x30) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid (85%) Shield, TFE Outer Jacket, MIL-W-16878/4 (Type E)

Insulation:-

• Material: PTFE - Polytetrafluoroethylene
• Nom. Thickness: 0.0105 in (0.267 mm)
• Nom. Insulation Diameter: 0.068 in (1.7 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Silvered Copper (SC)
• Coverage: 85%

Outer Jacket:-

• Material: PTFE - Polytetrafluoroethylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Diameter: 0.207 in (5.26 mm)
• Overall Cable Diameter (Nominal): 0.207 in (5.26 mm)

Standards:-

• UL Voltage Rating: 600 V
• Operating Temperature Range: -65°C to +200°C

Applications:-

• MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals and voltage control

Specifications:-

• Size (AWG): 18
• No. of Conductor: 4
• Stranding: 19x30
• Conductor Material: SC - Silvered Copper
• Part Number: 83351E
