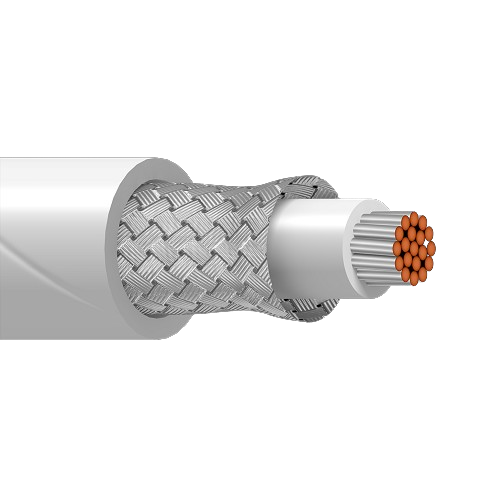

Belden 83306E 20 AWG 1 Conductor 19x32 Stranding Silvered Copper 600V Electronic Cable

Description:-

High Temperature Electronic, 1 Conductor 20 AWG (19x32) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid (85%) Shield, TFE Outer Jacket, MIL-W-16878/4 (Type E)

Insulation:-

• Material: PTFE - Polytetrafluoroethylene
• Nom. Thickness: 0.010 in (0.25 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Silvered Copper (SC)
• Coverage: 85%

Outer Jacket:-

• Material: PTFE - Polytetrafluoroethylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Diameter: 0.099 in (2.5 mm)
• Overall Cable Diameter (Nominal): 0.099 in (2.5 mm)

Standards:-

• Voltage Rating: 600 V
• Operating Temperature Range: -65°C to +200°C

Applications:-

• MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals and voltage control

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 19x32
• Conductor Material: SC - Silvered Copper
• Part Number: 83306E
