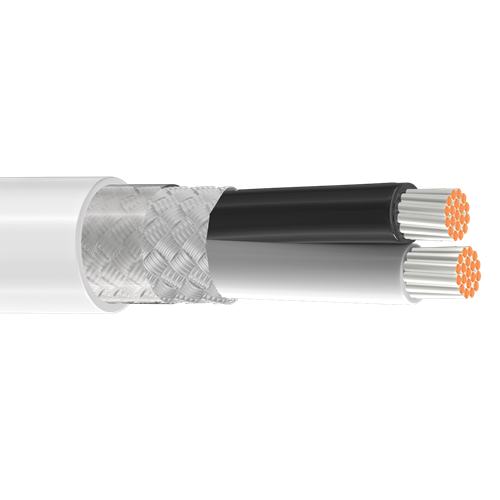

Belden 83320E 20 AWG 2 Conductor 19x32 Stranding Silver Plated Copper 600V Electronic Cable

Description:

High Temperature Electronic, 2 Conductor 20 AWG (19x32) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid (85%) Shield, TFE Outer Jacket, MIL-W-16878/4 (Type E).

Insulation:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.058 in (1.5 mm)

Outer Shield:

• Shield Type: Braid
• Material: Silvered Copper (SC)
• Coverage: 85%

Outer Jacket:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Diameter: 0.159 in (4.04 mm)
• Overall Cable Diameter (Nominal): 0.159 in (4.04 mm)

Standards:

• Voltage Rating: 600 V
• Operating Temperature: 65°C to +200°C
• Military Compliance: MIL-W-16878/4 (Type E except stranding), (insulated conductors)

Applications:

• MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals and voltage control
