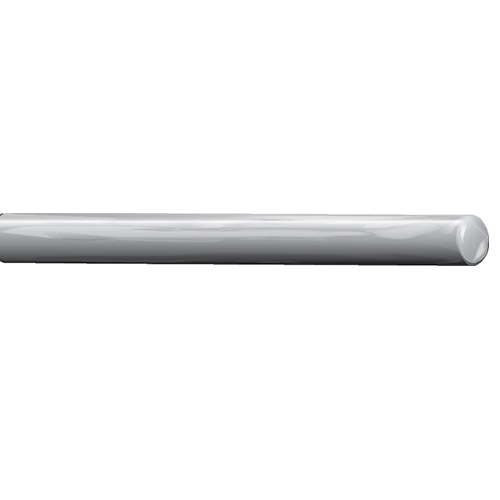

Belden 8025 30 AWG 1 Conductor Solid Tinned Copper Bus Bar Wire

Description:

Made in accordance with the performance requirements of Federal Spec. QQ-W-343G. Solid tinned copper conductor. Belden can certify, upon special request, compliance with the performance requirements of QQ-W-343S_S1T. Bus Bar Wire, 30 AWG (Solid) Tinned Copper, QQ-W-343G.

Construction and Dimensions:

• Circular Mil Area (CMA)1: 102

Conductor DCR:

• Nominal Conductor DCR: 107 Ohm/1000ft

Specifications:

• Size (AWG): 30
• No. of Conductor: 1
• Stranding: Solid
• Overall Nominal Diameter: 0.010 in.
• Conductor Material: TC - Tinned Copper
• Part Number: 8025
