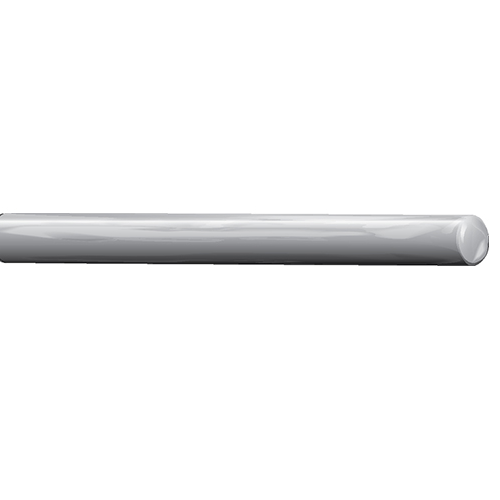

Belden 8023 26 AWG 1 Conductor Solid Tinned Copper Bus Bar Wire

Belden 8023 26 AWG 1 Conductor Solid Tinned Copper Bus Bar Wire

SKU: NES8023   Download PDF

Select a gauge:
  • Belden 8023 26 AWG 1 Conductor Solid Tinned Copper Bus Bar Wire
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.35 /FT   Web pricing policy
BEFORE   Now $0.35 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 8023 26 AWG 1 Conductor Solid Tinned Copper Bus Bar Wire

Description:

Made in accordance with the performance requirements of Federal Spec. QQ-W-343G. Solid tinned copper conductor. Belden can certify, upon special request, compliance with the performance requirements of QQ-W-343S_S1T. Bus Bar Wire, 26 AWG (Solid) Tinned Copper, QQ-W-343G.

Construction and Dimensions:

• Circular Mil Area (CMA)1: 262

Conductor DCR:

• Nominal Conductor DCR: 41.7 Ohm/1000ft

Specifications:

• Size (AWG): 26
• No. of Conductor: 1
• Stranding: Solid
• Overall Nominal Diameter: 0.016 in.
• Conductor Material: TC - Tinned Copper
• Part Number: 8023
