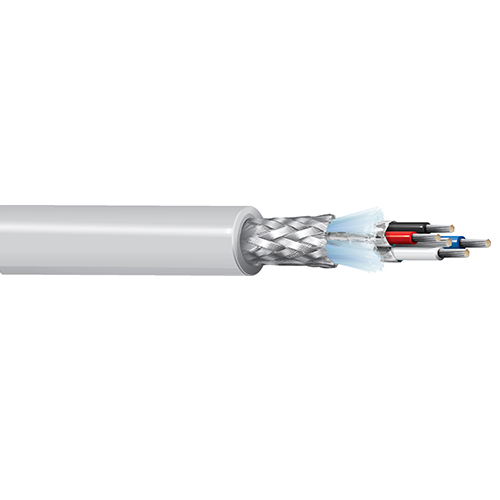

Belden 7900A 16 AWG 1 Pair 18 AWG 1 Pair Tinned Copper 600V DeviceBus Cable

Description:

DeviceBus for ODVA DeviceNet, 2 Pair 16+18 AWG (19x29+19x30) Tinned Copper, PVC-NYL+PO Insulation, PVC Outer Jacket, 600V TC-ER.

Insulation:

Element: Pair1
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Insulation Diameter: 0.101 in (2.57 mm)

Element: Pair2
• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.098 in (2.5 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.075 in (1.9 mm)
• Nom. Diameter: 0.43 in (11 mm)
• Separator: Polyester Tape

Standards:

• Voltage Rating: 600 V
• Operating Temperature: -20°C to +75°C
• Nom. Characteristic Impedance: 100 Ohms, 120 Ohms

Applications:

• harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.
