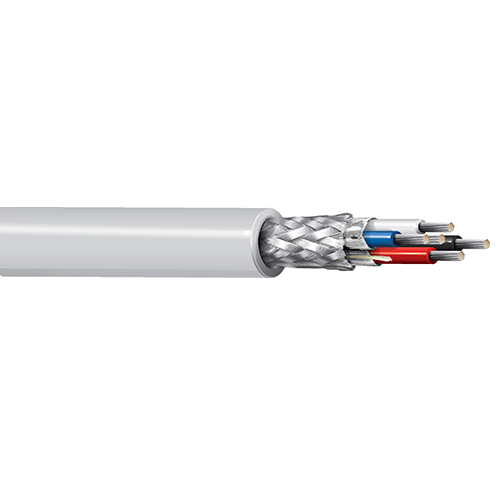

Belden 3085A 22 AWG 1 Pair 24 AWG 1 Pair Tinned Copper 300V DeviceBus Cable

Description:

DeviceBus for ODVA DeviceNet, 2 Pair 22+24 AWG (19x34+19x36) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil and OA Tinned Copper Braid (65%) Shield, CPE Outer Jacket, CMG, CL2.

Insulation:

Element: Power Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.072 in (1.8 mm)

Element: Data Pair(s)
• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.026 in (0.66 mm)
• Nom. Insulation Diameter: 0.077 in (2.0 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%
• Drainwire Type: 22 AWG (19x34) TC - Tinned Copper

Outer Jacket:

• Material: CPE - Chlorinated Polyethylene
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.280 in (7.11 mm)
• Overall Cable Diameter (Nominal): 0.280 in (7.11 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.005

Standards:

• Operating Temperature: -20°C to +75°C
• Nom. Characteristic Impedance: 120 Ohms
• Voltage Rating: 300 V (CMG, CL2)

Applications:

• harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.
