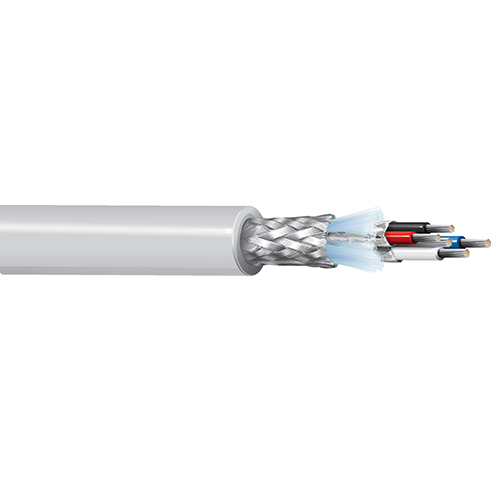

Belden 7896A 16 AWG 1 Pair 18 AWG 1 Pair Tinned Copper 600V DeviceBus Cable

Description:

DeviceBus for ODVA DeviceNet, 2 Pair 16+18 AWG (19x29+19x30) Tinned Copper, PVC-NYL+PP Insulation, Individual Beldfoil and OA Tinned Copper Braid (65%) Shield, PVC Outer Jacket, 600V TC-ER.

Insulation:

Element: Power Pair(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.101 in (2.57 mm)

Element: Data Pair(s)
• Material: PP - Polypropylene
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Insulation Diameter: 0.182 in (4.62 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 70%
• Drainwire Type: 16 AWG (19x29) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.060 in (1.5 mm)
• Nom. Diameter: 0.525 in (13.3 mm)
• Overall Cable Diameter (Nominal): 0.525 in (13.3 mm)
• Outer Jacket1 Table Notes: Jacket OD +/- 0.010

Standards:

• Voltage Rating: 600 V (TC-ER)
• Operating Temperature: -40°C to +75°C
• Nom. Characteristic Impedance: 120 Ohms

Applications:

• harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.
