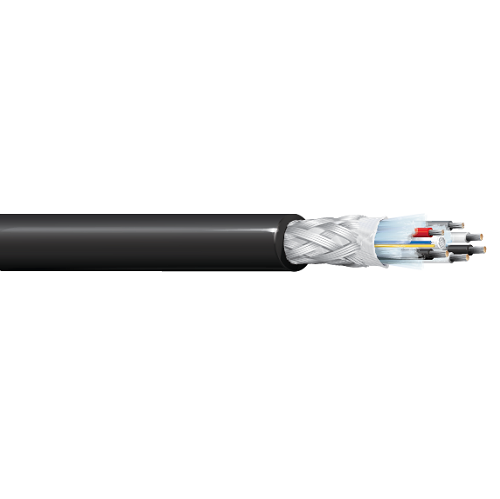

Belden 7818A 24 AWG 2 Conductor 20 AWG 4 Conductor 2 Fiber Harsh Environment SMPTE 311M Cable

Description:-

Harsh Environment SMPTE 311M Cable, 2 Single Mode Fibers, 2 TC Conductors 24 AWG (7x32) and 4 TC Conductors 20 AWG (19x32), PE Insulation, TC Braid Shield (95% coverage), Polyurethane Jacket.

Product Overview:-

• Product Category: SMPTE Cable
• Suitable Applications: SMPTE 311M Camera Cable

Outer Jacket:-

• Material: PUR - Polyurethane
• Nom. Diameter: 0.357 in (9.07 mm)

Standards:-

• Operating Temperature Range: -40C To +75C

Specifications:-

• Size (AWG): 24
• No. of Conductors: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper

• Size (AWG): 20
• No. of Conductors: 4
• Stranding: 19x32
• Conductor Material: TC - Tinned Copper

• Fiber Count: 2
• Fiber Type: OS2, G.657.A2
• Fiber Buffer Material: PVC - Polyvinyl Chloride
• Fiber Buffer Diameter: 900 µm
• Part Number: 7818A
