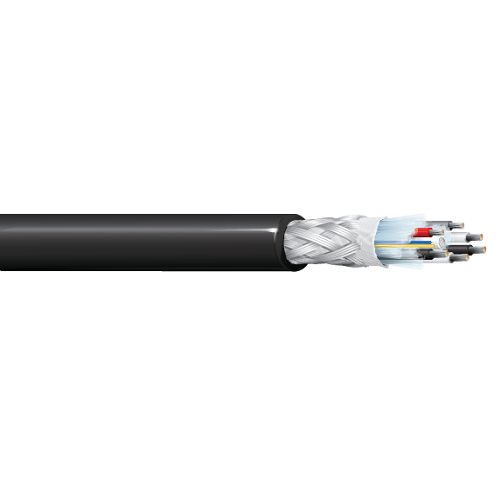

Belden 7817A 24 AWG 2 Conductor 20 AWG 4 Conductor 2 Fiber SMPTE 311M Double Jacket Cable

Description:-

12mm Double Jacketed SMPTE 311M Studio Cable, 4 power conductors, SM fibers w/24 and 20 AWG stranded (7x32 and 19x32) TC conductors, PE insulation, TC braid shield (85% coverage), Belflex jacket.

Product Overview:-

• Suitable Applications: SMPTE 311M Camera Cable

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.472 in (12.0 mm)

Standards:-

• Operating Temperature Range: -40°C to 70°C

Specifications:-

• Size (AWG): 24
• No. of Conductors: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper

• Size (AWG): 20
• No. of Conductors: 4
• Stranding: 19x32
• Conductor Material: TC - Tinned Copper

• Fiber Count: 2
• Fiber Type: OS2, G.657.A2
• Fiber Core Diameter: 9.5/125 microns
• Fiber Buffer Material: PVC - Polyvinyl Chloride
• Fiber Buffer Diameter: 900 µm
• Part Number: 7817A
