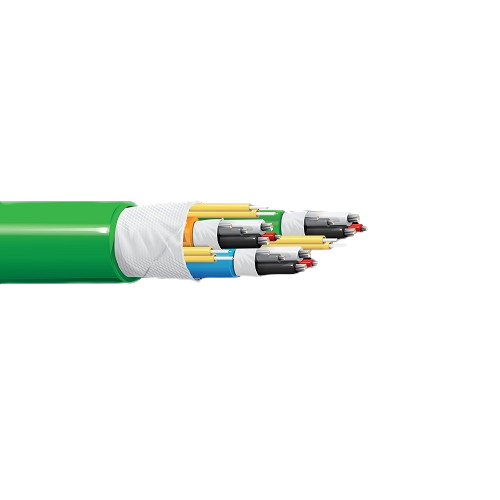

Belden 7824P 18 AWG 6 Conductor 24 AWG 6 Conductor 6 Single Mode Fiber 3-Channel SMPTE Stadium Cable

Description:-

3-Channel SMPTE Stadium Cable, 6 Single Mode Fiber, 6 TC Conductor (19x30) 18 AWG and 6 TC Conductor (7x32) 24 AWG, FEP Insulation, Beldfoil Shield, PVDF Jacket, Plenum.

Product Overview:-

• Product Category: SMPTE Cable
• Suitable Applications: 3 Channel Composite Camera Cable

Fiber Specifications:-

• Fiber Type: OS2, G.657.A2
• Fiber Buffer Material: PVC - Polyvinyl Chloride
• Fiber Buffer Diameter: 900 µm
• Fiber Count: 6
• Fiber Color Code: Yellow Printed

Fiber Construction:-

• Fibers Per Subunit: 1

Conductor Specifications:-

• Conductor Size: 24 AWG, 18 AWG
• Insulation Material: FEP

Outer Jacket Specifications:-

• Jacket Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.553 in (14.0 mm)

Optical Characteristics:-

• Wavelength: Max. Attenuation
• 1310 nm: 0.50 dB/km
• 1550 nm: 0.50 dB/km
