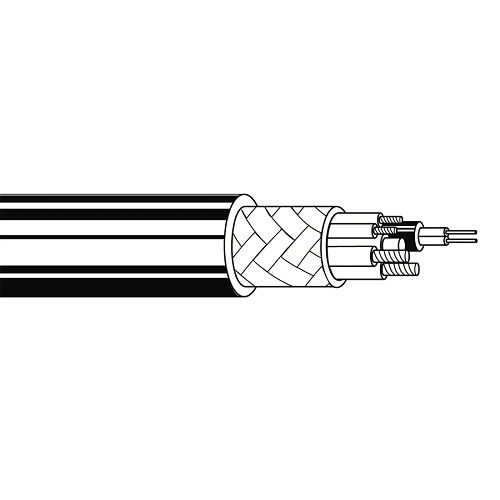

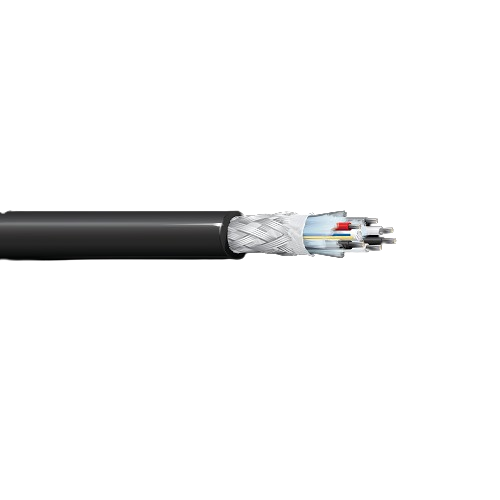

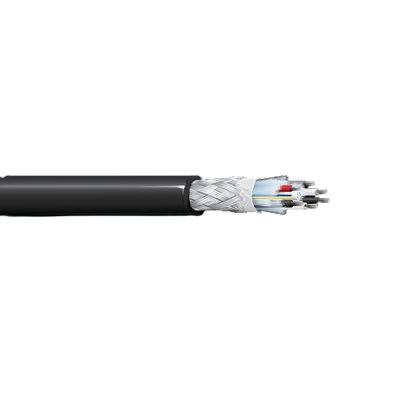

Belden 7804C 24 AWG 2 Conductor 16 AWG 2 Conductor 2 Fiber SMPTE 311M Cable

Description:-

Heavy Gauge SMPTE 311M HDTV, 2 Single Mode fibers, 2 TC Conductors 24 AWG stranded (7x32) and 2 TC Conductors 16 AWG stranded (65x34), PVC insulation, TC braid shield (95% coverage), CMR rating, Belflex jacket.

Product Overview:-

• Product Category: SMPTE Cable
• Suitable Applications: SMPTE 311M HDTV Cable

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.362 in (9.19 mm)

Standards:-

• Operating Temperature Range: -40°C to 70°C

Specifications:-

• Size (AWG): 24
• No. of Conductors: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper

• Size (AWG): 16
• No. of Conductors: 2
• Stranding: 65x34
• Conductor Material: TC - Tinned Copper

• Fiber Count: 2
• Fibers Per Subunit: 1
• Fiber Type: OS2, G.657.A2
• Fiber Buffer Material: PVC - Polyvinyl Chloride
• Fiber Buffer Diameter: 900 µm
• Part Number: 7804C
