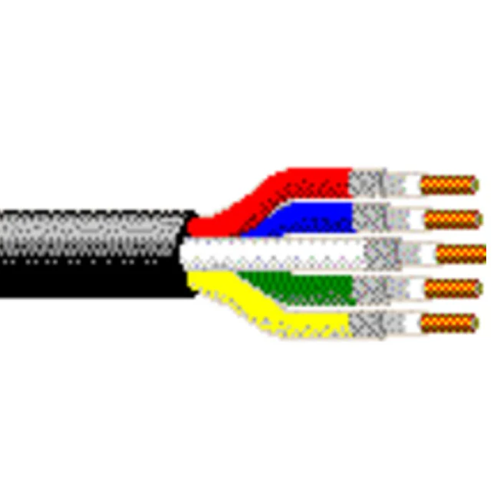

Belden 7798A 20 AWG 10 Conductor Solid Bare Copper 300V Video Flex Digital Coax Snake Cable

Description:

Digital Coax Snake Cable, RG59, 10 Coax 20 AWG, solid bare copper conductors, foam HDPE core, Duofoil + 95% tinned copper braid, Riser, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.145 in
• Gas Injected

Inner Shield:

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.233 in

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 1.166 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -35°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Specifications:

• Size (AWG): 20
• No. of Conductor: 10
• Stranding: Solid
• Nominal Diameter: 0.032 in
• Conductor Material: BC - Bare Copper
• Part Number: 7798A
