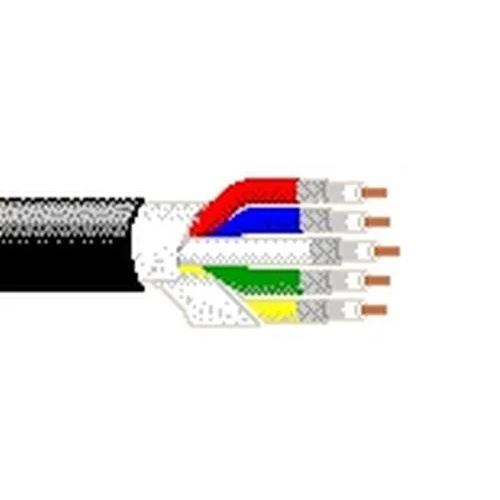

Belden 7712A 18 AWG 5 Conductor Solid Bare Copper 300V Video Flex Digital Coax Snake Cable

Description:

VideoFLEX Digital Coax Snake Cable, RG-6, 5 Coax 18 AWG, solid bare copper conductors, foam HDPE core, Duofoil + 95% tinned copper braid, Riser, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.18 in
• Gas Injected

Inner Shield:

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.275 in

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.97 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -40°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• Video Mult.
