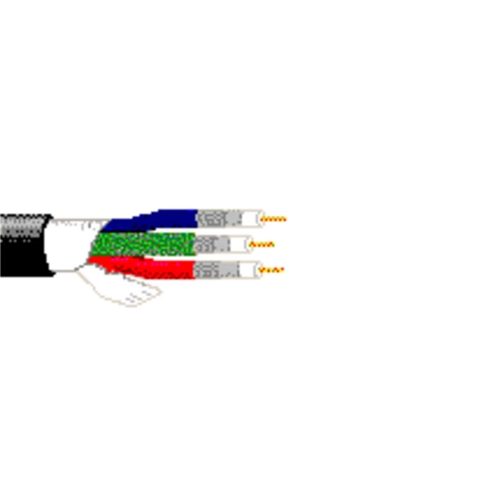

Belden 7710A 18 AWG 3 Conductor Solid Bare Copper 300V Video Flex Digital Coax Snake Cable

Description:

VideoFLEX Digital Coax Snake Cable, Riser-CMR, 3-RG6 18 AWG, solid bare copper conductors, foam HDPE core, Duofoil +95% tinned copper braid, PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.18 in
• Gas Injected

Inner Shield:

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.275 in

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.746 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -40°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Applications:

• SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p, SDI/HDTV Digital Video, High Definition (HD), Standard Definition (SDI).
