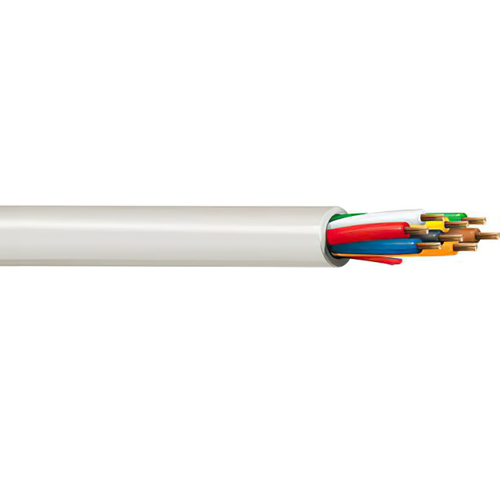

Belden 5306UE 18 AWG 8 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Riser-CMR, 8-18 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord.

Insulation:

• Material: PO - Polyolefin
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Diameter: 0.241 in (6.12 mm)
• Overall Cable Diameter (Nominal): 0.241 in (6.12 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 18
• No. of Conductor: 8
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 5306UE
