Belden 5302UE 18 AWG 4 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable

Belden 5302UE 18 AWG 4 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable

SKU: NES5302UE   Download PDF

Select a gauge:
  • Belden 5302UE 18 AWG 4 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.36 /FT   Web pricing policy
BEFORE   $0.00 Now $0.36 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 5302UE 18 AWG 4 Conductor 7x26 Stranding Bare Copper 300V Security and Sound Cable

Description:

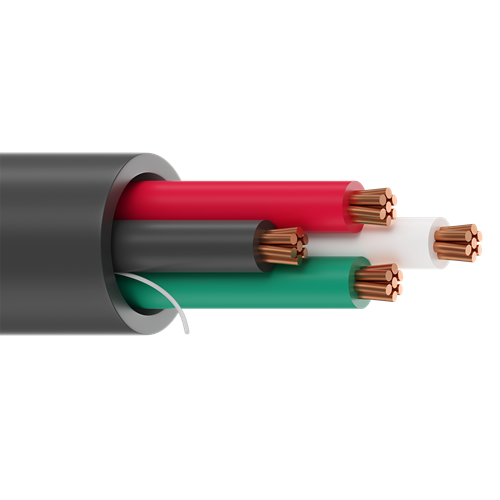

Security and Sound Cable, Riser-CMR, 4-18 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.184 in (4.67 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 18
• No. of Conductor: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 5302UE
