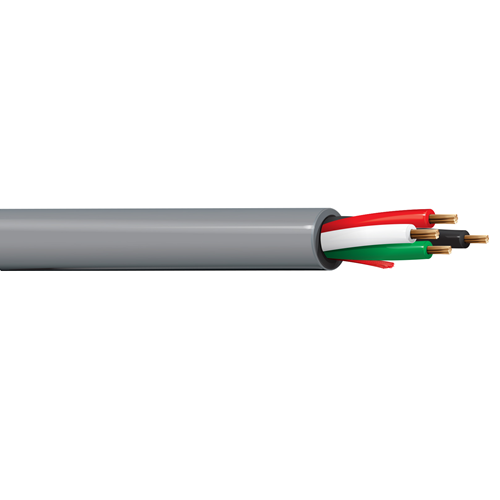

Belden 5102UE 14 AWG 4 Conductor 19x26 Stranding Bare Copper 300V Security and Sound Cable

Description:

Security and Sound Cable, Riser-CL3R, 4-14 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.092 in (2.3 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.266 in (6.76 mm)
• Overall Cable Diameter (Nominal): 0.266 in (6.76 mm)

Standards:

• Voltage Rating: 300 V (CL3R)
• Operating Temperature: -20°C to +75°C

Applications:

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:

• Size (AWG): 14
• No. of Conductor: 4
• Stranding: 19x26
• Conductor Material: BC - Bare Copper
• Part Number: 5102UE
