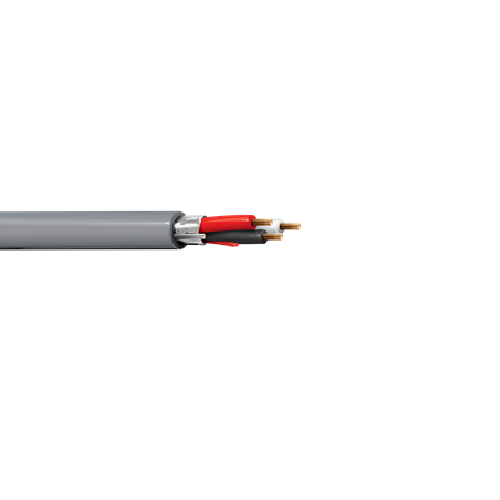

Belden 5301UE 18 AWG 3 Conductor 7x26 Stranding Bare Copper 300V Security and Commercial Audio Cable

Description:

Security and Commercial Audio Cable, Riser-CMR, 3-18 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord.

Insulation:

• Material: PO - Polyolefin
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.167 in (4.24 mm)
• Overall Cable Diameter (Nominal): 0.167 in (4.24 mm)

Standards:

• Voltage Rating: 300 V (CMR)
• Operating Temperature: -20°C to +75°C

Applications:

• Addressable Fire Systems, Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Specifications:

• Size (AWG): 18
• No. of Conductor: 3
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 5301UE
